Fujitsu ASY50-KM Design & Technical Manual

¢ Setting method

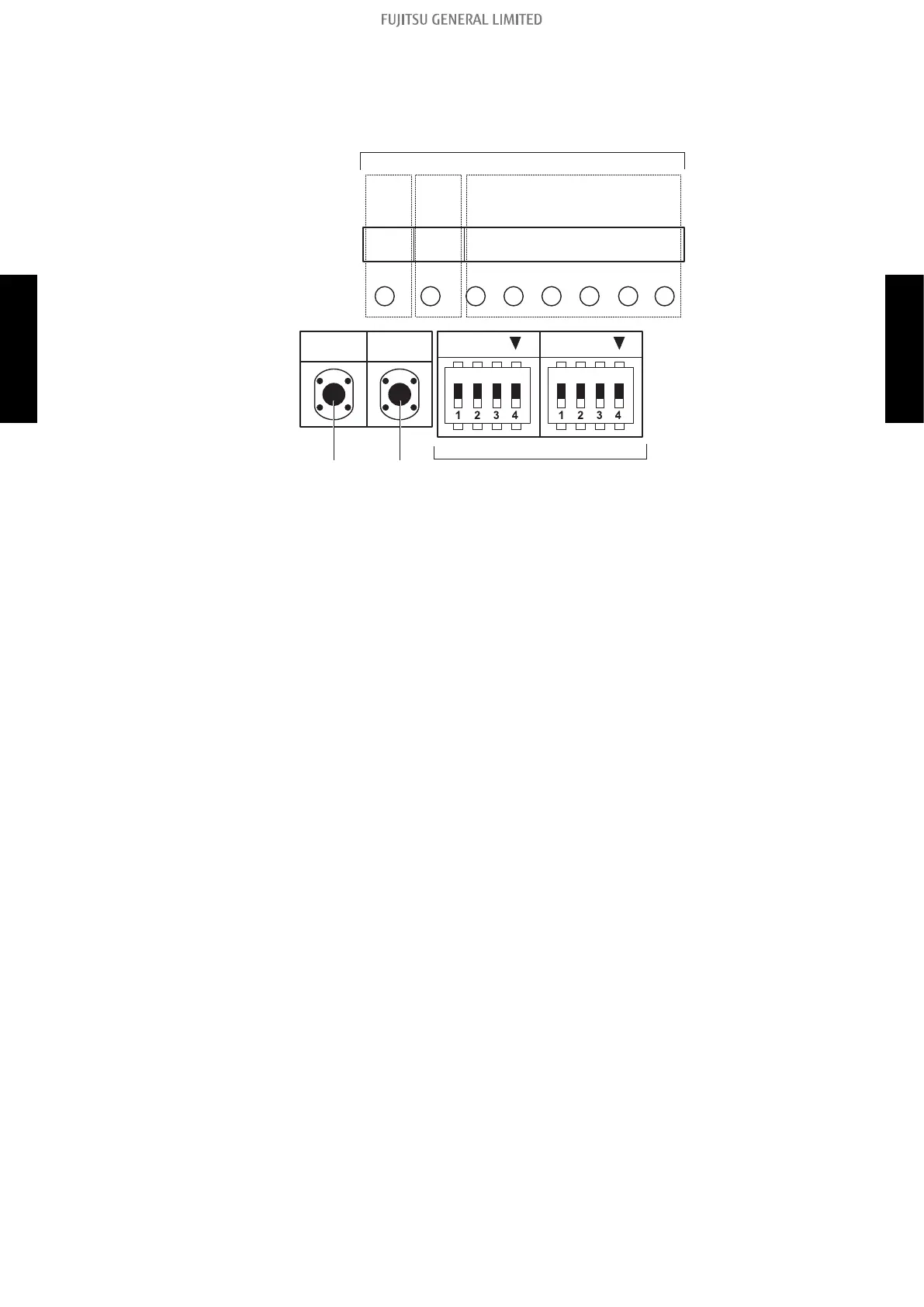

Various settings can be adjusted by changing DIP switches and push switches on the PCB of
the outdoor unit.
ERROR
MONITOR
POWER
/MODE
A
(
GRN
) (
RED
)
B C D E F
CHECK
SET 1
TEST RUN /
PUMP DOWN
SET 2
ON ON
(1) 2)( (3)
DIP switch part
LED display part
SW1
SW2
1. Be sure to disconnect the power supply or turn off the breaker.
2. Change the DIP switch setting according to the required setting.
- 542 -
13-1. Setting methods
13. Function settings
