Fujitsu ASYA09LEC Service Manual

23
22
21
24
29
26
25
30
27
28

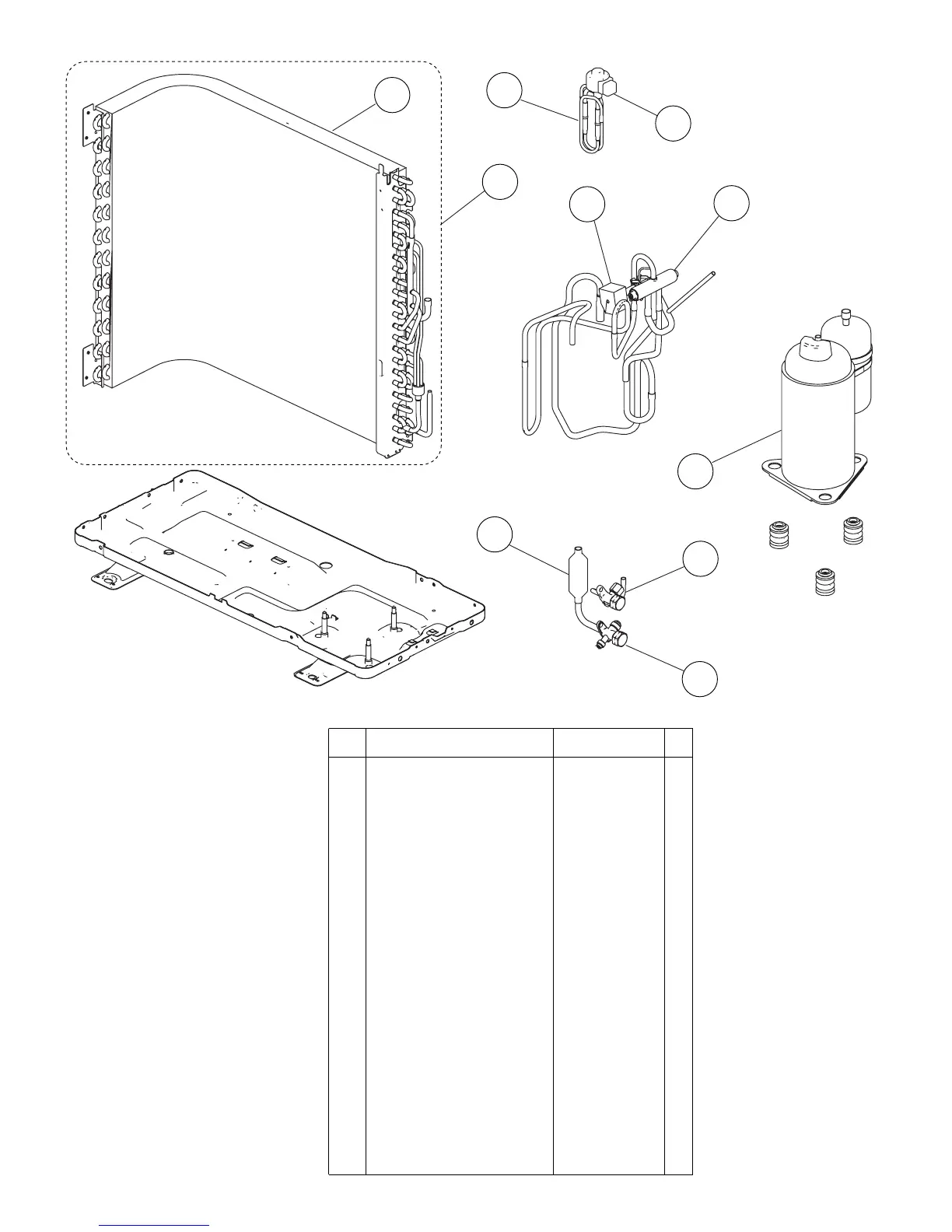

OUTDOOR UNIT
2010.11.11 17
23 Compressor Assy 9317619004
25 3 way Valve Assy (09) 9314022012
25 3 way Valve Assy (12) 9315574015
29 Pulse Motor Valve Assy (12) 9317215046
29 Pulse Motor Valve Assy (09) 9314557019
28 Solenoid 9970055010
21 Condenser Total Assy (09) 9318711004
21 Condenser Total Assy (12) 9332359008
30 Expansion Valve Coil 9970096013
26 Muffler (12) 9308625007
27 4 way Valve Assy (09) 9314093050
27 4 way Valve Assy (12) 9332365009
24 2 way Valve Assy (09) 9314554018
24 2 way Valve Assy (12) 9332371000
22 Condenser Assy (09) 9318712001
22 Condenser Assy (12) 9332360004
