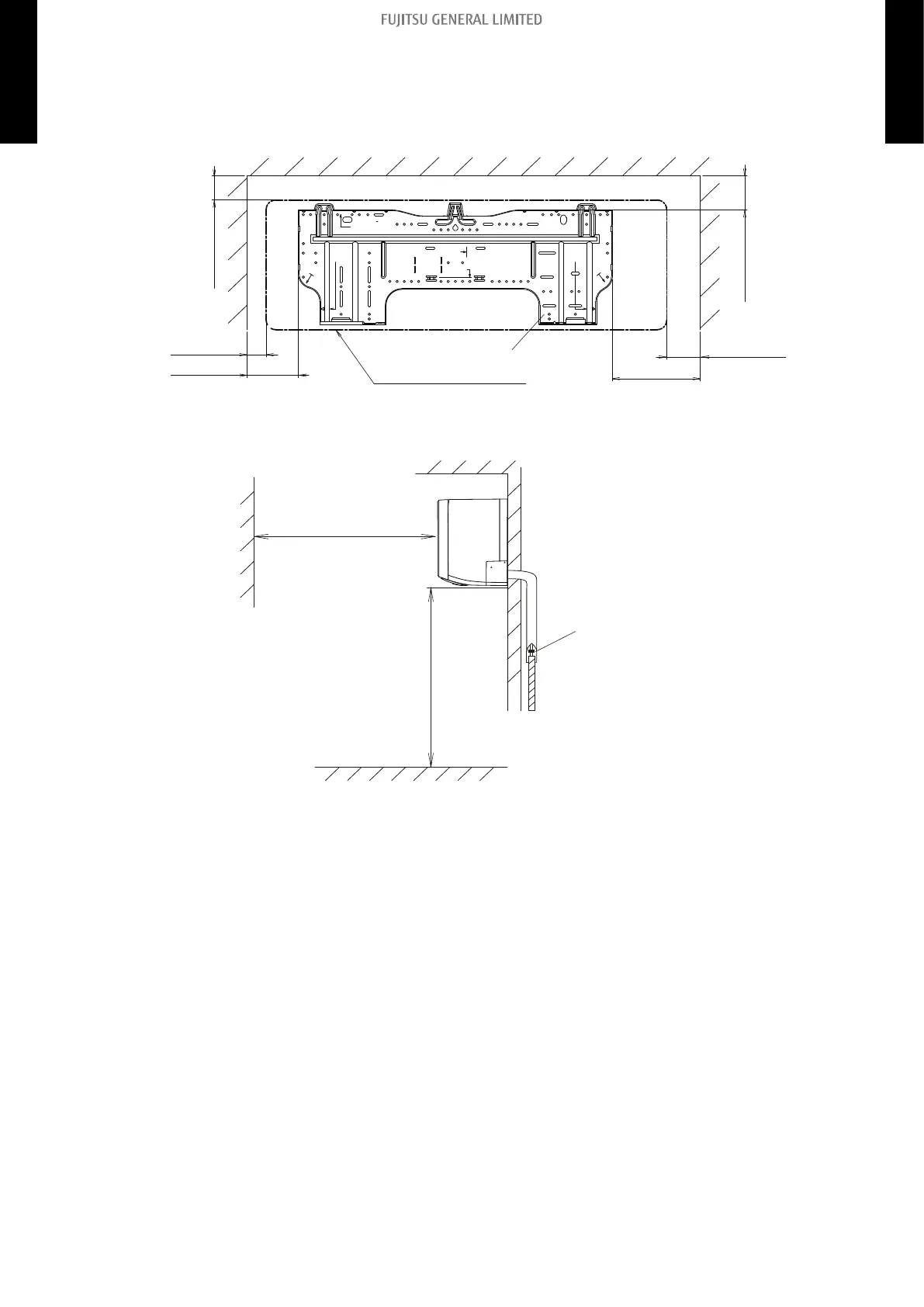

Installation space requirement
Provide sufficient installation space for product safety.
Unit: mm
50 or more
71 or more
The flare connection
part should be installed
outdoors.
40 or more
70 or more
107 or more
1,500 or more
1,800 or more
183 or more
Wall hook bracket
Outline of the indoor unit
- 5 -
2-1. Models: ASYG07KGTE, ASYG09KGTE, ASYG12KGTE, and ASYG14KGTE
2. Dimensions
WALL MOUNTED
ASYG07-14KGT
WALL MOUNTED
ASYG07-14KGT
