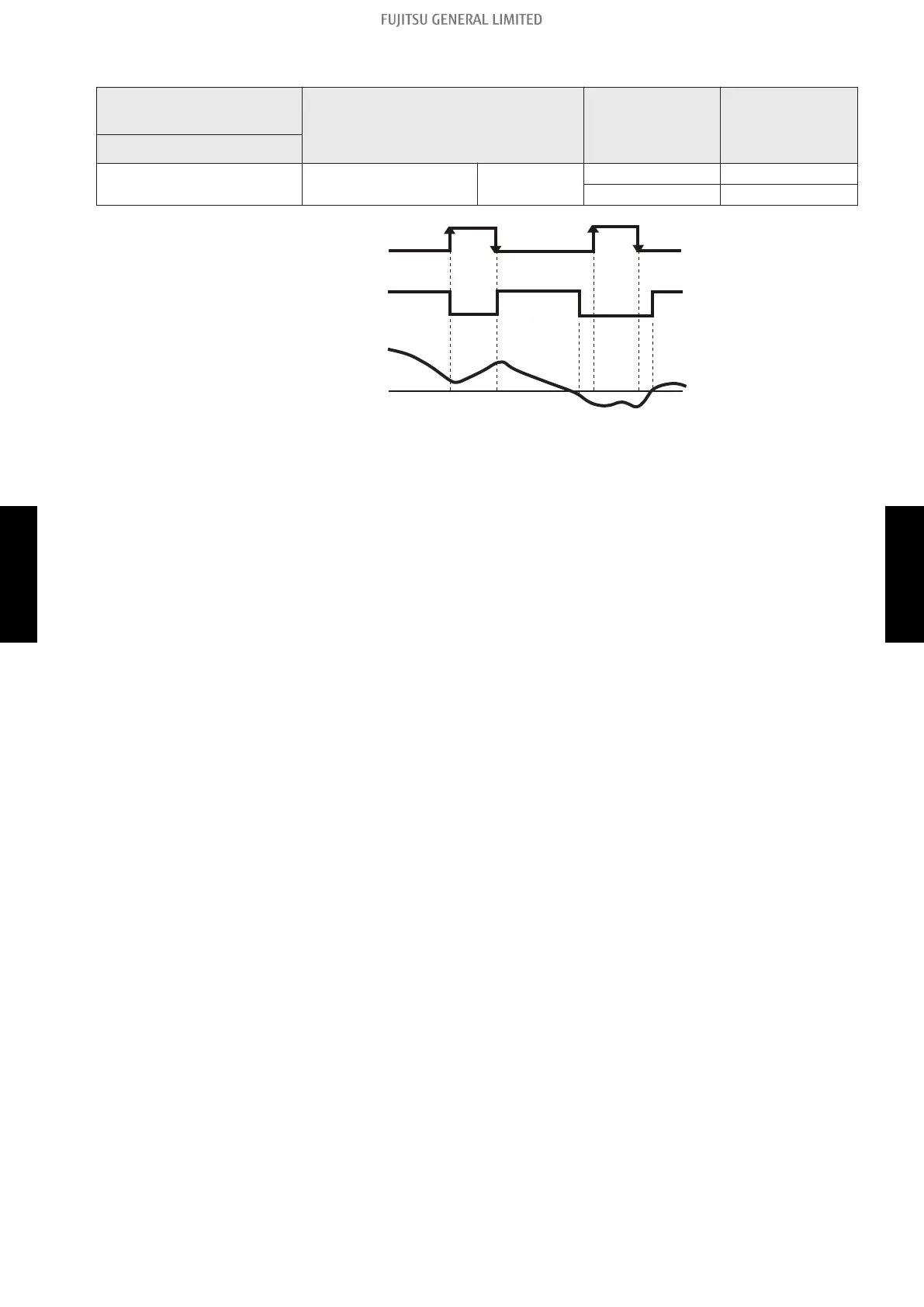

Forced thermostat off
External Input and Output
PCB
External input Input signal Command
Rotary switch
2, B, C, D
External Input and
Output PCB
CN313
Off → On Thermostat off
On → Off Normal operation
On
Off
On
Off
Compressor
Room temp.
Set temp.
CN313
2-4. Details of control input function - (05-19) - 2. External input and output
FIELD
WORKING
FIELD
WORKING
