8. Remote controller

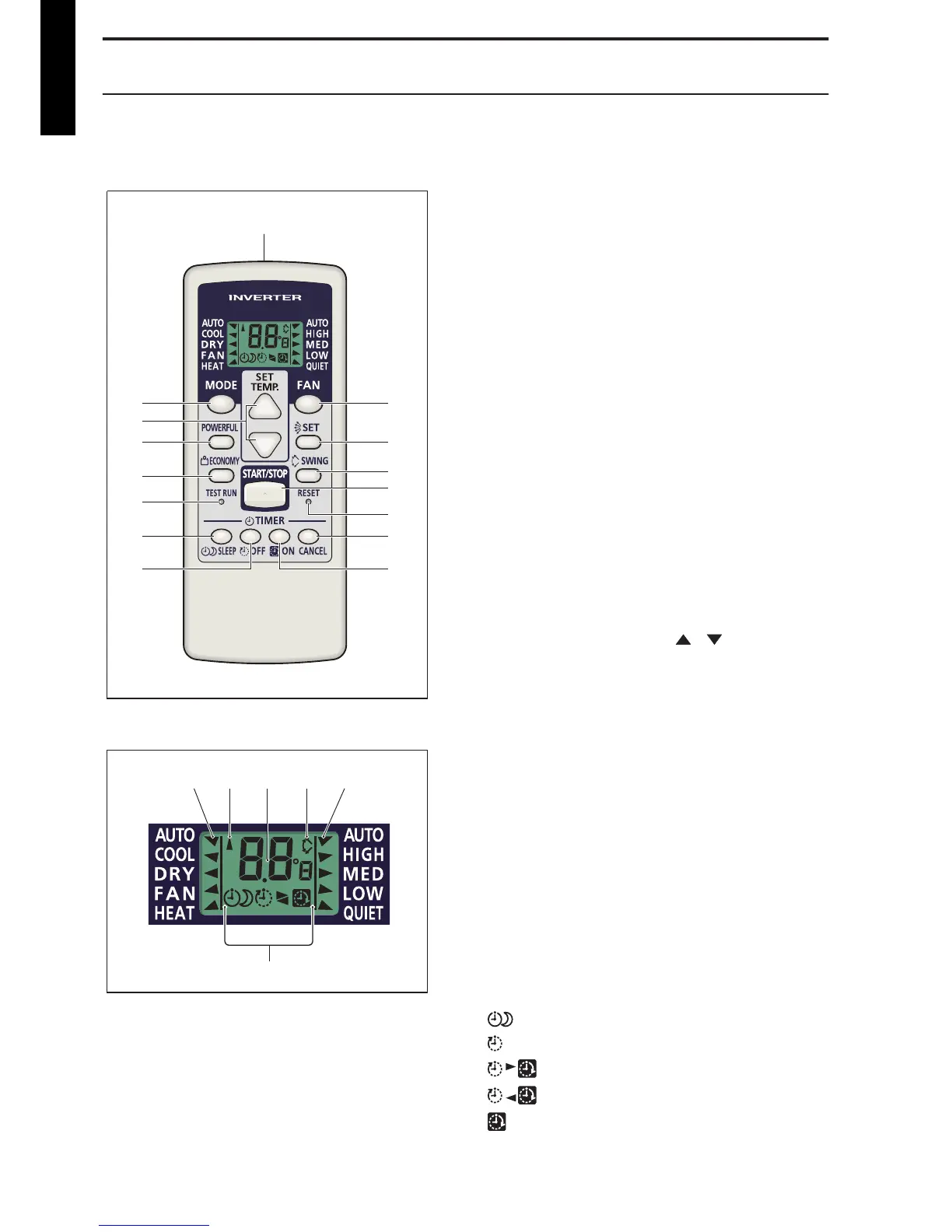

8-1. Wireless remote controller
¢
Overview
o
b
d
e
f
a
c
g
i
j
k
l
n
m
h
Display panel
u
rs
ptq
a FAN button
b SET button
c SWING button
d START/STOP button
e RESET button
f TIMER CANCEL button
g ON TIMER button
h OFF TIMER button
i SLEEP TIMER button
j TEST RUN button
• Used only when installing the air conditioner, and should
not be used under normal conditions, as it will cause the
indoor unit’s thermostat malfunction.
• If this button is pressed during normal operation, the in-
door unit will switch to test operation mode, and the oper-
ation indicator lamp and the timer indicator lamp on the
indoor unit will begin to flash simultaneously.
• To stop the test operation mode, press the START/STOP
button. Then, the air conditioner stops the operation.
k ECONOMY button
l POWERFUL button
m
SET TEMP. (temperature) (
/ ) button
• Sets desired temperature.
• Sets remote controller custom code.
n MODE button
• Switches operation mode (AUTO, COOL, DRY, FAN, and
HEAT).
• Starts/ends the remote controller custom code (max. 4
types) change.
o Signal transmitter
p Operating mode indicator
q Signal transmit indicator
r Temperature and time indicator
• Displays set temperature.
• In timer setting, it displays the timer time. After finishing
the timer setting, set temperature will reappear.
s Swing indicator
t Fan speed indicator
u Timer mode indicator
•
Sleep timer
•
OFF timer
• OFF-ON timer
• ON-OFF timer
• ON timer
