Fujitsu ASYG09KMCDN User Manual

En-3

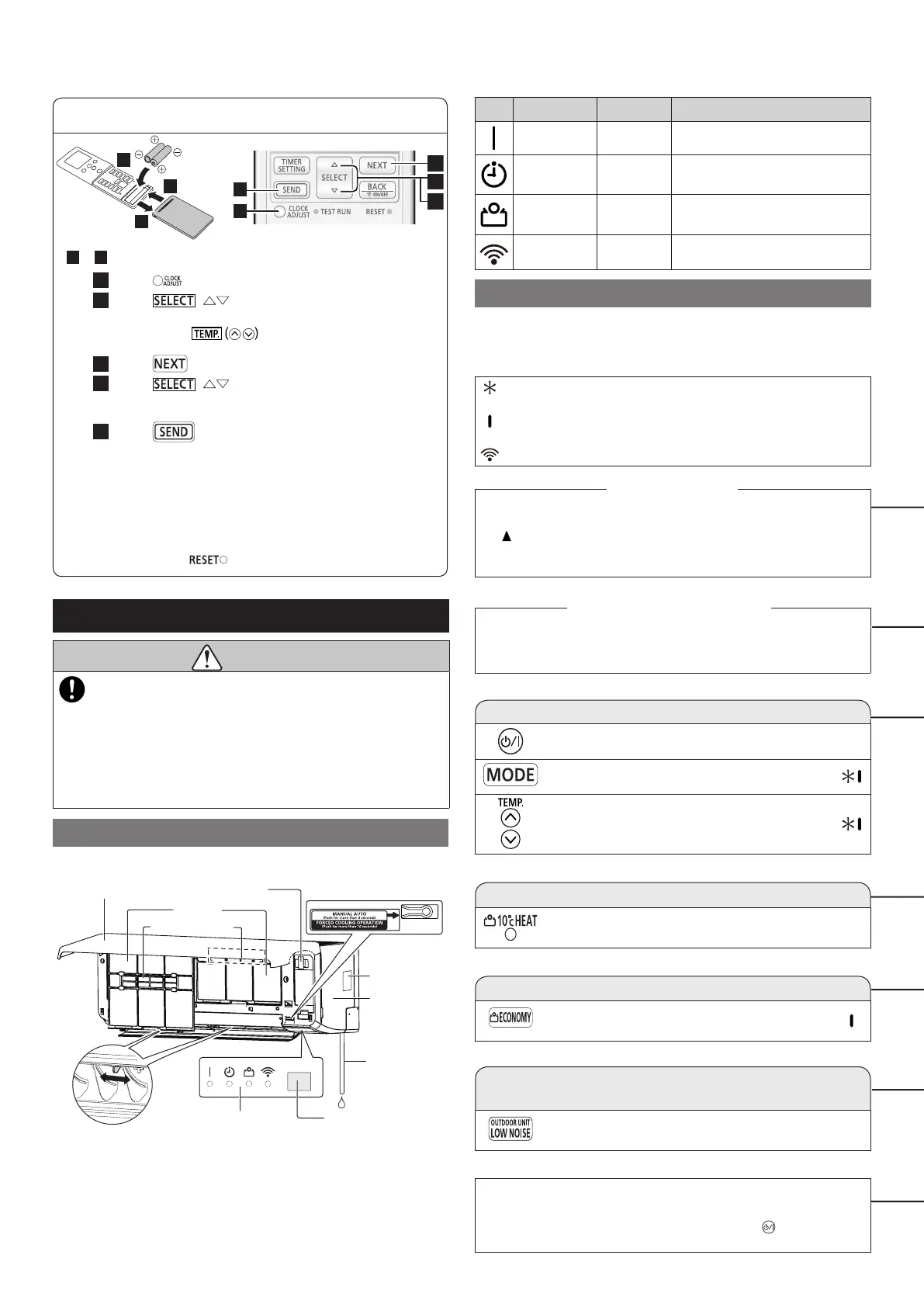

3. NAME OF PARTS
CAUTION
For appropriate signal transmission between the remote
controller and the indoor unit, keep the signal receiver
away from the following items:
- Direct sunlight or other strong lights
- Flat-panel television screen
In rooms with instantaneous uorescent lights, such as
inverter type ones, the signal may not be transmitted
properly. In such a case, consult the store of purchase.
For Basic operations ..................... Refer to page 5.
Starts or stops the air conditioner operation.
Changes the operation mode.
Adjusts the setting temperature.
For Outdoor Unit Low Noise operation
... Refer to page 7.
Activates or deactivates the Outdoor Unit Low
Noise operation.
Remote controller display
In this section, all the possible indicators are displayed for description.
In actual operation, the display is linked with the button operation, and
only shows the necessary indicators for each setting.
Signal transmitter
Aim at the signal receiver of the indoor unit properly.
• Operating range is approximately 7 m.
• [
] will appear when the signal is transmitted.
• The indoor unit will emit a beep when it receive the signal
properly. If there is no beep, press the button again.
3.1. Indoor unit
Remote controller
signal receiver
Horizontal airow
direction louvers
For Manual Auto operation
and Filter indicator reset
(Refer to page 15.)
Rating label
Drain hose
Indicator lamps
*2)
Front panel
Air lter
WLAN adapter slot
Intake grille
*1)
Air cleaning lter
*1) Before starting operation, make sure that the intake grille is closed
completely. Incomplete closing may a󰀨ect the proper function or
performance of the product.
*2) Indicator lamps light in the following conditions. It cannot see when
the indicator lamp is o󰀨.
Name
Color Operation or condition
Operation Green Normal operation
Timer Orange Timer operation
Economy Green Economy operation
10 °C Heat operation
WLAN Orange WLAN control is active.
3.2. Remote controller
When you use the optional remote controller, the appearance
and the operation procedure may di󰀨er.
For details, please refer to the operation manual of each remote
controller.
: The setting must be done while the setting screen is displayed
for each function.
: The button is controllable only when the air conditioner is
operating.
: The instruction is relating to the WLAN control.
For Energy saving operation ........ Refer to page 7.
Activates or deactivates the Economy
operation.
Battery loading and remote controller preparation
(R03/LR03/AAA x 2)
5
7
6
4
8
1
2
3
1
~
3
Put batteries as shown in the gure above.
4
Press to start clock setting.
5
Press
()
to set day of the week (Monday
to Sunday).
* By pressing , the time indicator can be
changed from a 24-hour to a 12-hour clock.
6
Press to continue.
7
Press
()
to set the clock.
Press the buttons to change the clock by a minute.
Press down the buttons to change the clock by 10 minutes.
8
Press to complete the setting.
Be close to the indoor unit. If you press the button from a
distance, settings may not be properly sent.
NOTES:
• Use specied type of batteries only.
• Do not mix di󰀨erent types or new and used batteries together.
• Batteries can be used about 1 year in ordinary use.
• If the remote control range noticeably shortens, replace the
batteries, and press
as shown in page 4.
Do not press this button in normal use.
It starts the test run (for use by authorized service personnel only).
NOTES:

If the test run starts unintentionally, press
to quit the test
run.
For 10 °C Heat operation .............. Refer to page 7.
Activates the 10 °C Heat operation.
9387858068-01_OM.indb 3 07-Oct-20 14:00:34

Fujitsu ASYG09KMCDN Specifications

General

Brand	Fujitsu
Model	ASYG09KMCDN
Category	Air Conditioner
Language	English
