6-4. Wall mounted type
¢
Models: ASYG07–09KGTB, ASYG07–09KGTE, ASYG07–
09KGTF, ASYG07–12KMTB, ASYG07–12KMCC, ASYG07–
12KMCE, ASYG07–12KMCF, ASYG07–12KETA, ASYG07–
12KETA-B, ASYG07–12KETE, ASYG07–12KETE-B, ASYG07–
12KETF, and ASYG07–12KETF-B

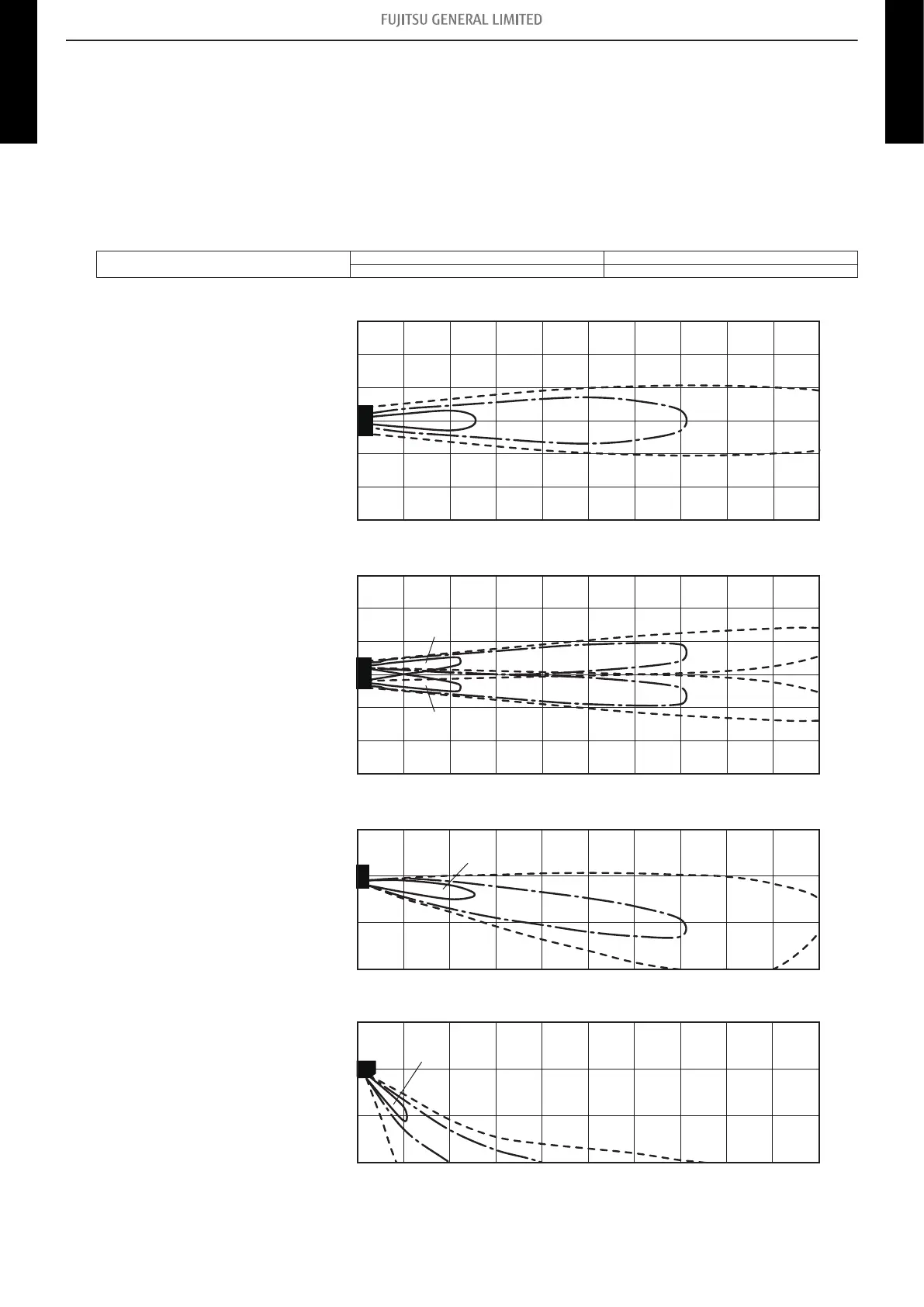

Measuring conditions
Fan speed Operation mode
HIGH FAN
Top view
Horizontal louver: Up
Vertical louver: Center
(m)
-3
-2
-1
0
1
2
3
0.52.0 1.0
Unit: m/s
(m)
0 1 2 3 4 5 6 7 8 9 10
Top view
Horizontal louver: Up
Vertical louver: Left & Right
2.0
2.0
1.0
1.0
0.5
0.5
Unit: m/s
(m)
(m)
-3
-2
-1
0
1
2
3
0 1 2 3 4 5 6 7 8 9 10
Side view
Horizontal louver: Up
Vertical louver: Center
(m)
(m)
3
2
1
0
0 1 2 3 4 5 6 7 8 9 10
Unit: m/s
2.0
0.5
1.0
Side view
Horizontal louver: Down
Vertical louver: Center
(m)
(m)
3
2
1
0
0 1 2 3 4 5 6 7 8 9 10
0.50.5
2.0
1.0
Unit: m/s
- 112 -
6-4. Wall mounted type
6. Air velocity and temperature distributions
