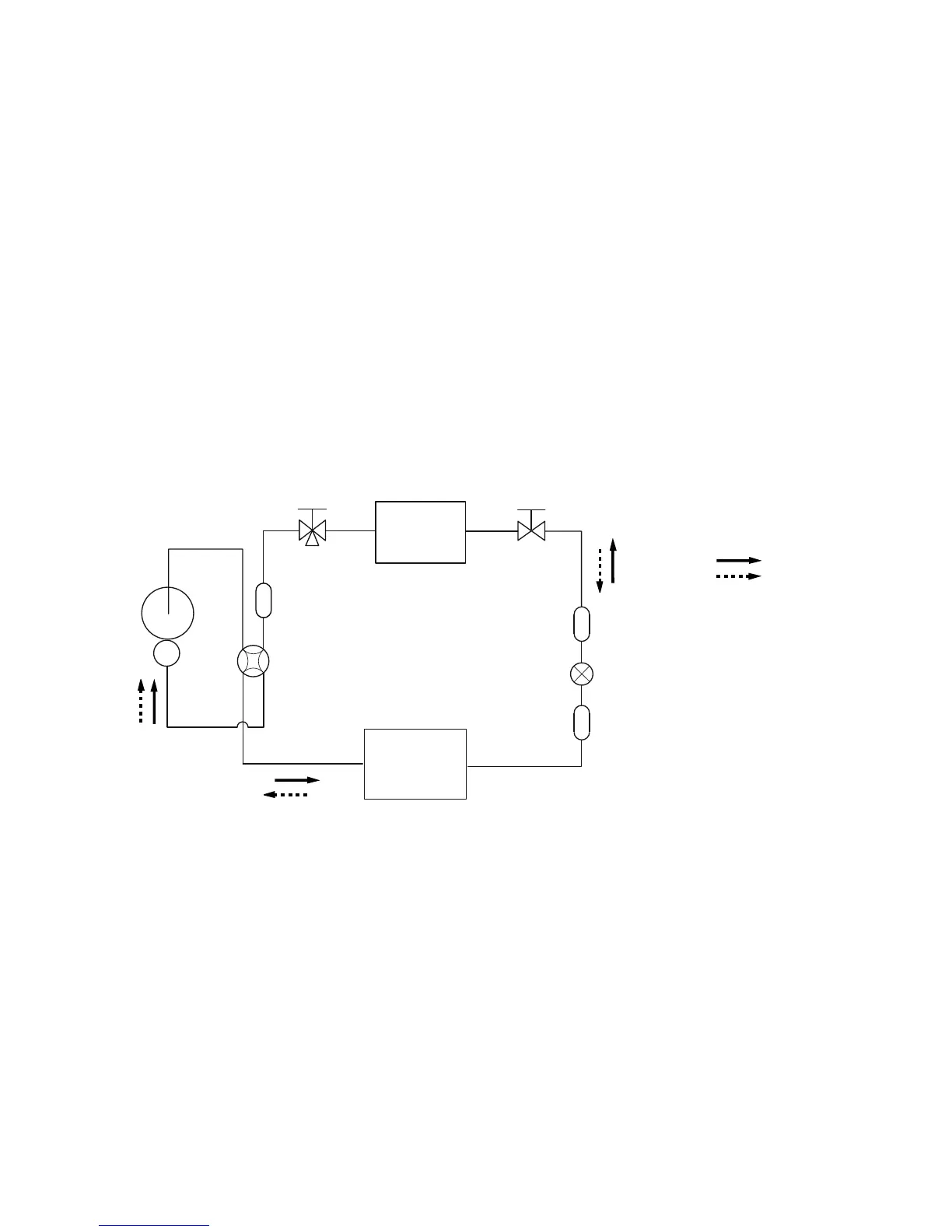

REFRIGERANT

SYSTEM DIAGRAM

2-Way valve

Strainer

3-Way valve

Muffler

4-Way valve

Expansion valve

Refrigerant direction

Heat exchanger

(indoor unit)

Heat exchanger

(outdoor unit)

Compressor

Cooling

Heating

Refrigerant pipe diameter

Liquid : 1/4" (6.35 mm)

Gas : 3/8" (9.52 mm)

2012.12.25 3
