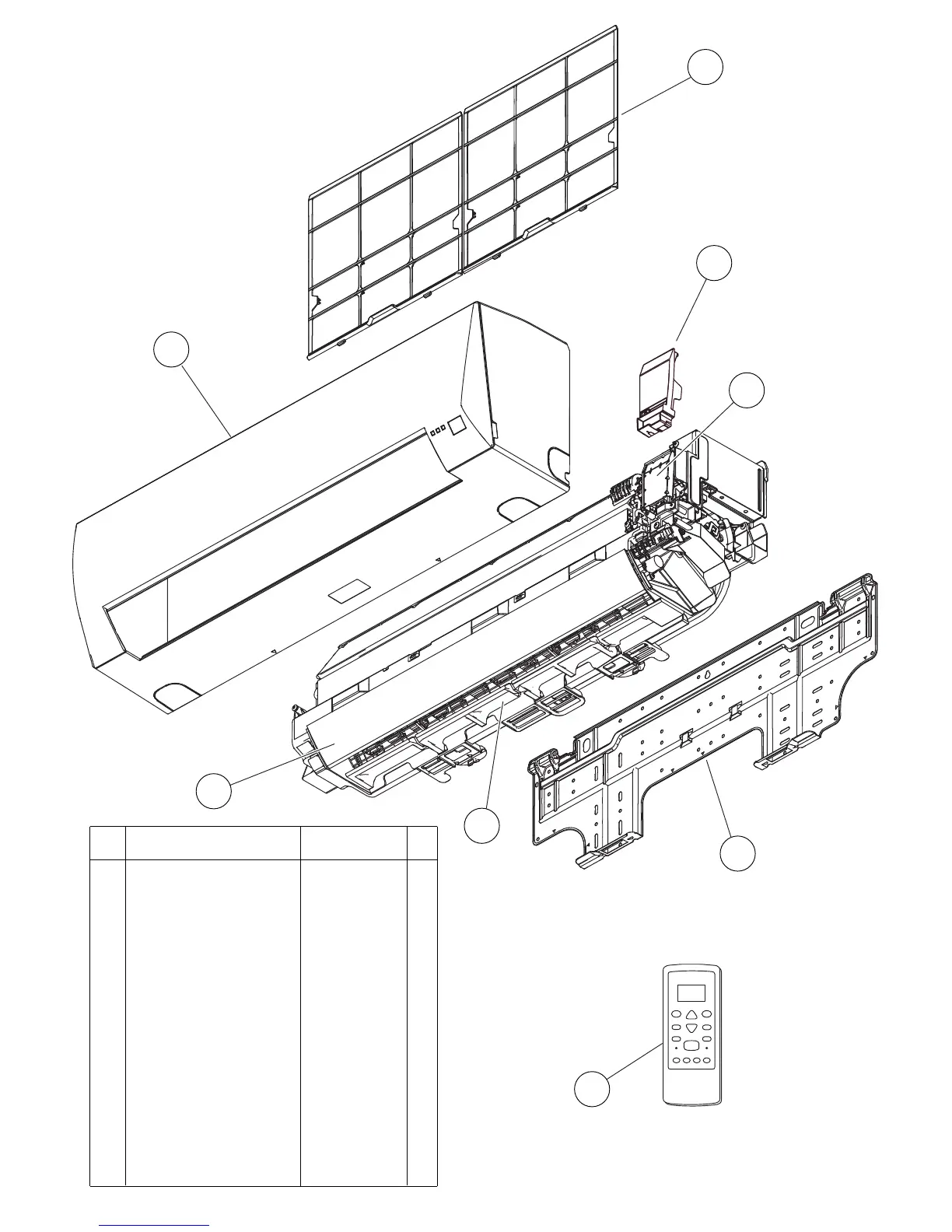

PARTS
5
4
3
2
6
1
INDOOR UNIT
2012.03.05 14
4
5
7
3
6
Front Panel Sub Assy 9332627015
2 Bracket Panel 9332556001
1
Wire Cover 9332544008
-
Wire Shield 9332555004
Remote Control 9332598001
Front Panel Sub Assy
with Air Filter (FUJITSU)
9332626018
8 Panel Cover 9332559002
Ref. Description Part number
Air Filter 9332549003
Louver 9332548006
7
8
