En-3
AIR CONDITIONER Wall Mounted Type
OPERATING MANUAL
CAUTION
• To prevent malfunction or damage of the remote controller:
- Place remote controller at where will not be exposed to
direct sunlight or excessive heat.
- Remove batteries if the product is not going to be used for
an extended period.
- Exhausted batteries must be removed immediately, and
be disposed according to the local laws and regulations of
your region.
• If leaking battery fl uid comes in contact with your skin, eyes,
or mouth, immediately rinse with plenty of clean water, and
consult your physician.
• Obstacles such as a curtain or wall between the remote
controller and the indoor unit may affect the appropriate
signal transmission.
• Do not apply strong shocks to the remote controller.
• Do not pour water on the remote controller.
• Do not attempt to recharge dry batteries.
• Do not use dry batteries that has been recharged.
You can quickly start the operation with following 3 steps:
1 START/STOP button
2 MODE button
Switches operation mode in following order.
AUTO COOL DRY FAN HEAT
Notes in HEAT mode:
• At the beginning of the operation, the indoor unit operates at very
low fan speed for about 3–5 minutes for preparation, and then
switches to the selected fan speed.
• Automatic defrosting operation overrides the heating operation when
it is necessary.
3 SET TEMP. (temperature) buttons
Set desired temperature.
Temperature setting range
AUTO 18–30 °C
COOL/DRY 18–30 °C
HEAT 16–30 °C
*:Temperature control is not available in FAN mode.
4 FAN button
Controls the fan speed.
AUTO HIGH MED LOW QUIET
• When AUTO is selected, the fan speed is automatically adjusted
according to the operation mode.
5 SET button
Adjusts the vertical airfl ow direction.
6 SWING button
Starts or stops automatic swing of the vertical airfl ow direction louver.
• Each time you press the button, the vertical airfl ow direction louver
swings as follows:
12
3
76
5
4
4
COOL or DRY mode
HEAT mode
1
2
3
4
5
6
7
Note:
SWING operation may stop temporarily when the fan in the unit is
rotating at very low speed or stopping.

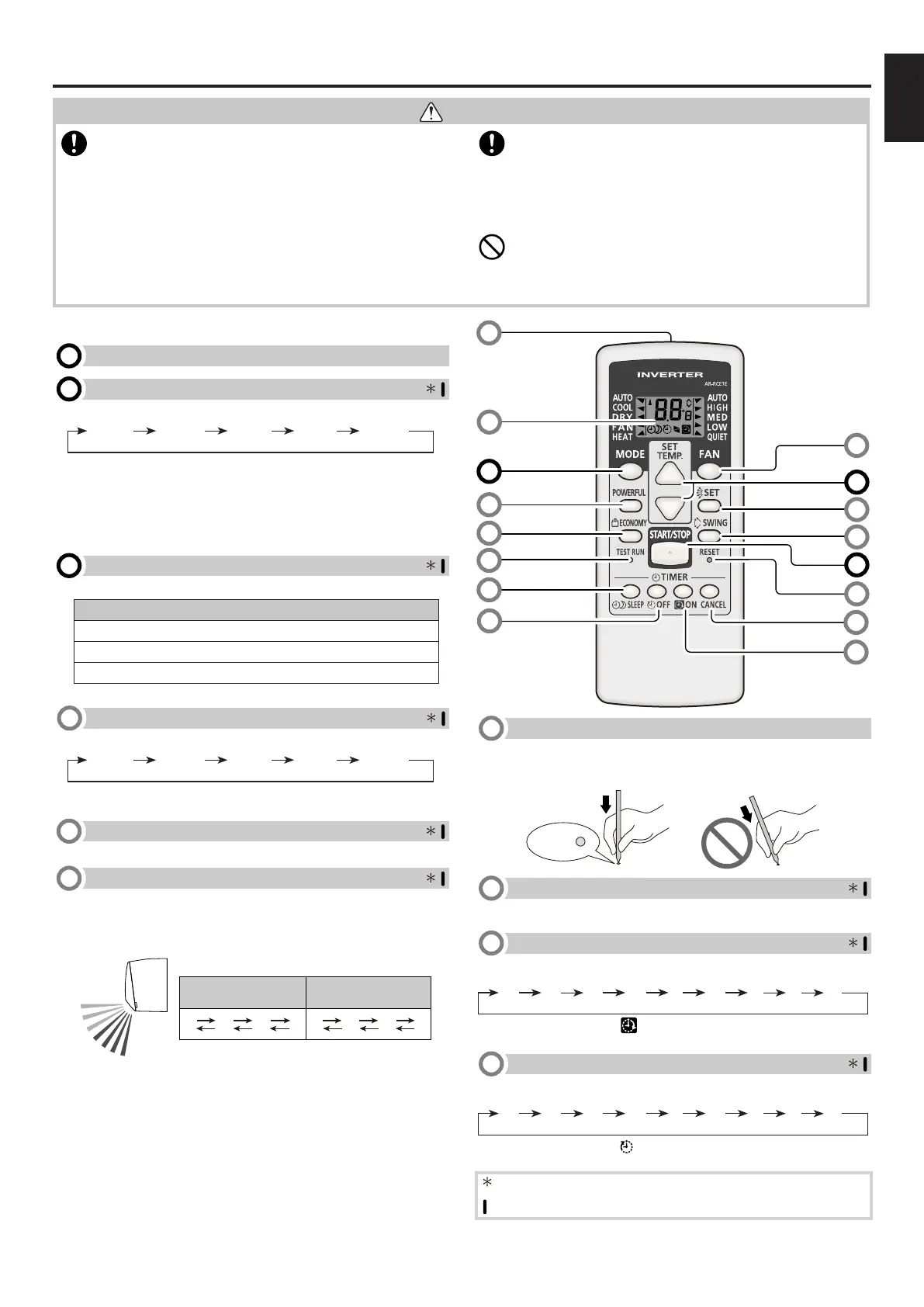

Remote Controller Overview and Operations
5
6
15
12
11
13
14
2
3
16
4
10
7
1
9
8
7 RESET button
When you press the “RESET” button, press it gently by using the tip
of a ballpoint pen or other small object in correct direction as shown in
this fi gure.
RESET
8 TIMER CANCEL button
Cancels the set timer.
9 ON TIMER button
Each time you press the button, the time changes as follows:
hours
0.5 1.0 1.5 2.0
...
9.5 10 11 12
• Set the time while the indicator on the remote controller display
is blinking.
10
OFF TIMER button
Each time you press the button, the time changes as follows:
hours
0.5 1.0 1.5 2.0
...
9.5 10 11 12
• Set the time while the indicator on the remote controller display
is blinking.
: The setting must be done within about 3 seconds during the indi-
cator stays solid.
: The button is controllable only when the air conditioner is on.
(continued)
