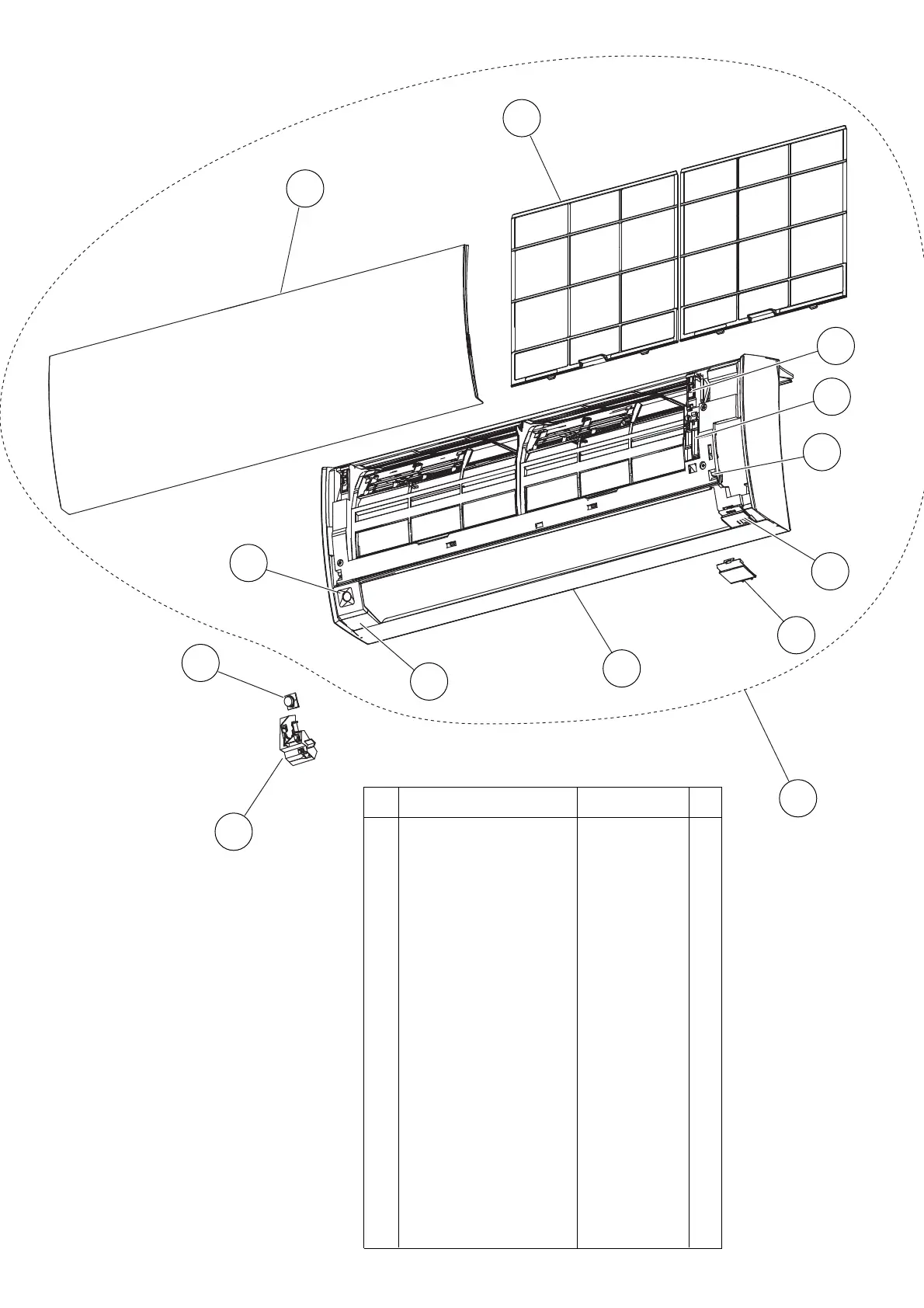

INDOOR UNIT
Front panel
2011.04.12 13
15
Air Filter
9318909005
12
Front Panel 9318876000
16 Display Plate Holder L 9318894004
14
Front Panel Cover T
17 9318895001
18 Display Plate R 9318893007
Display Plate Holder R
19 9318900002
22
Motion LED Display Case
9318907001
23 Pyroelectric Sensor 9317755023
20 Grille Stay 9318899009
21 Grille Clamper B 9316951006
Arm Cover
9318883008
13 Intake Grille Assy 9319351018
11 Front Panel Total Assy 9319348018
Ref. Description Part number
