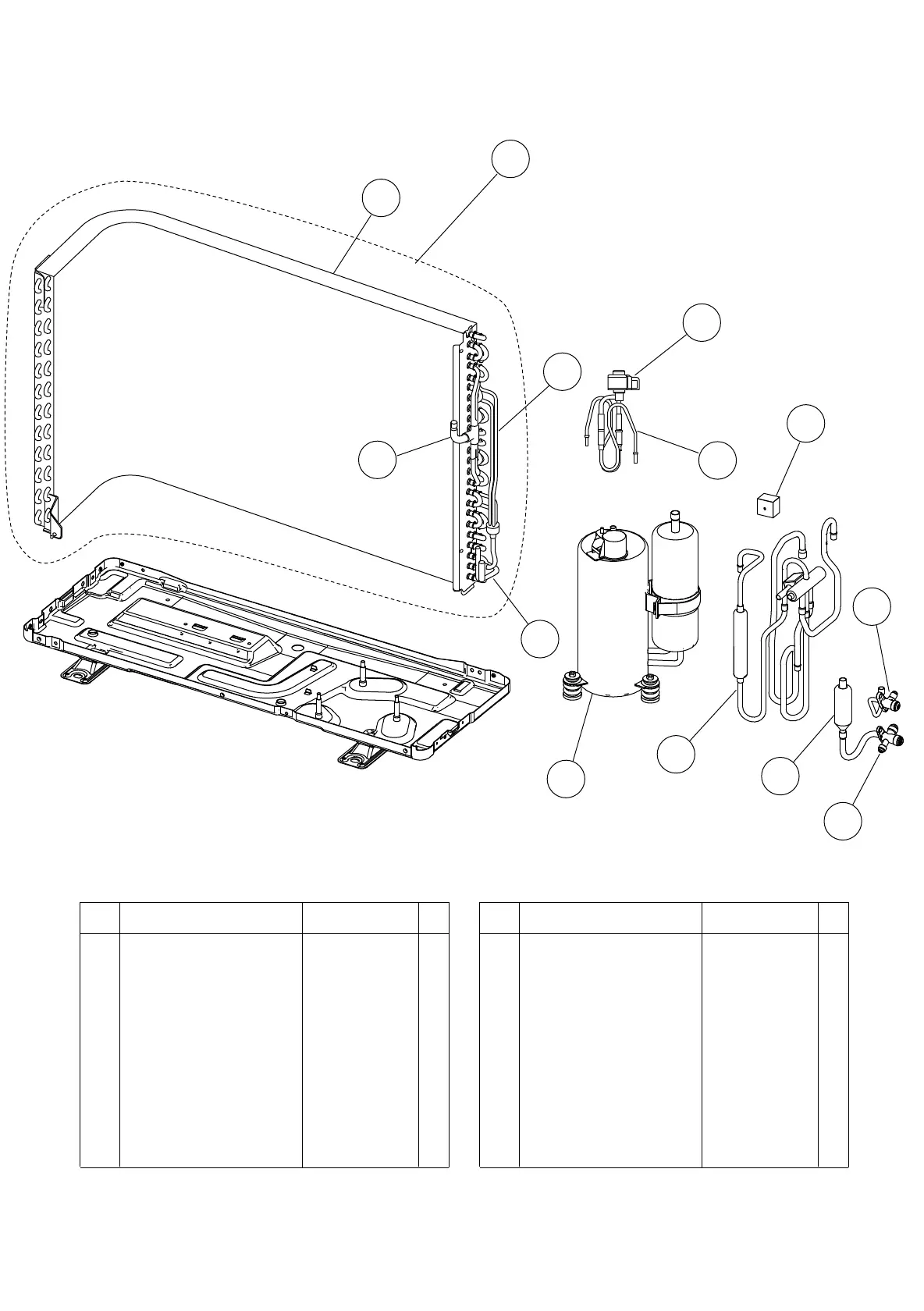

OUTDOOR UNIT
2011.05.06 18
28 3 way Valve Assy 9315574015
32 Pulse Motor Valve Assy 9332368000
31 Solenoid 9970110023
33 Expansion Valve Coil 9970095030
29 Muffler 9308625007
30 4 way Valve Assy 9332365009
Ref. Description Part number
26 Compressor Assy 9317619004
21 Condenser Total Assy 9332359008
27 2 way Valve Assy 9332371000
23 Inlet Pipe Assy 9315578013
25 Exit Pipe Assy 9332361001
24 Separate Pipe Assy 9317200011
22 Condenser Assy 9332360004
Ref. Description Part number
26
25
23
24
22
21
27
32
29
28
33
30
31
