Fujitsu ASYG12LECB

PARTS

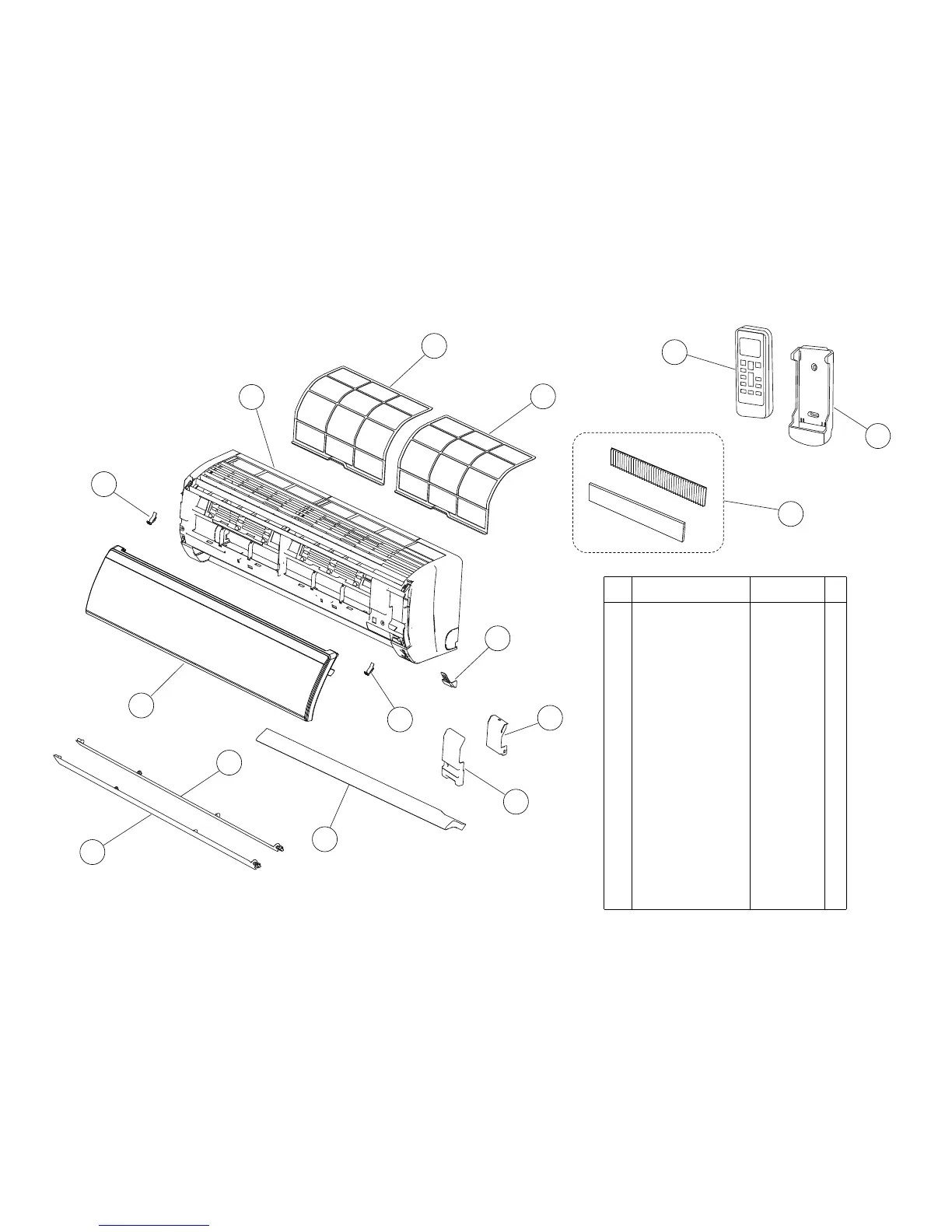

INDOOR UNIT
Front panel
2013.01.15 12
7 Air Filter 9316562004
4 Front Panel 9316558045
8 Receiver Window 9316588011
6
11
Grille Clamper 9316906006
5 Intake Grille Assy 9332272024
Panel Cover 9316561014
9 Wire Cover 9316559004
10 Wire Shield 9316584006
3 Air Clean Filter Assy 9317250009
1 Remote Control 9379219006
2 Remote Control Holder 9305642045
Ref. Description Part number
13 Louver U (Upper) 9316572003
12 Louver Z (Lower) 9316573000
4
5
8
11
9
10
1
13
3
12
2
6
6
7
7
