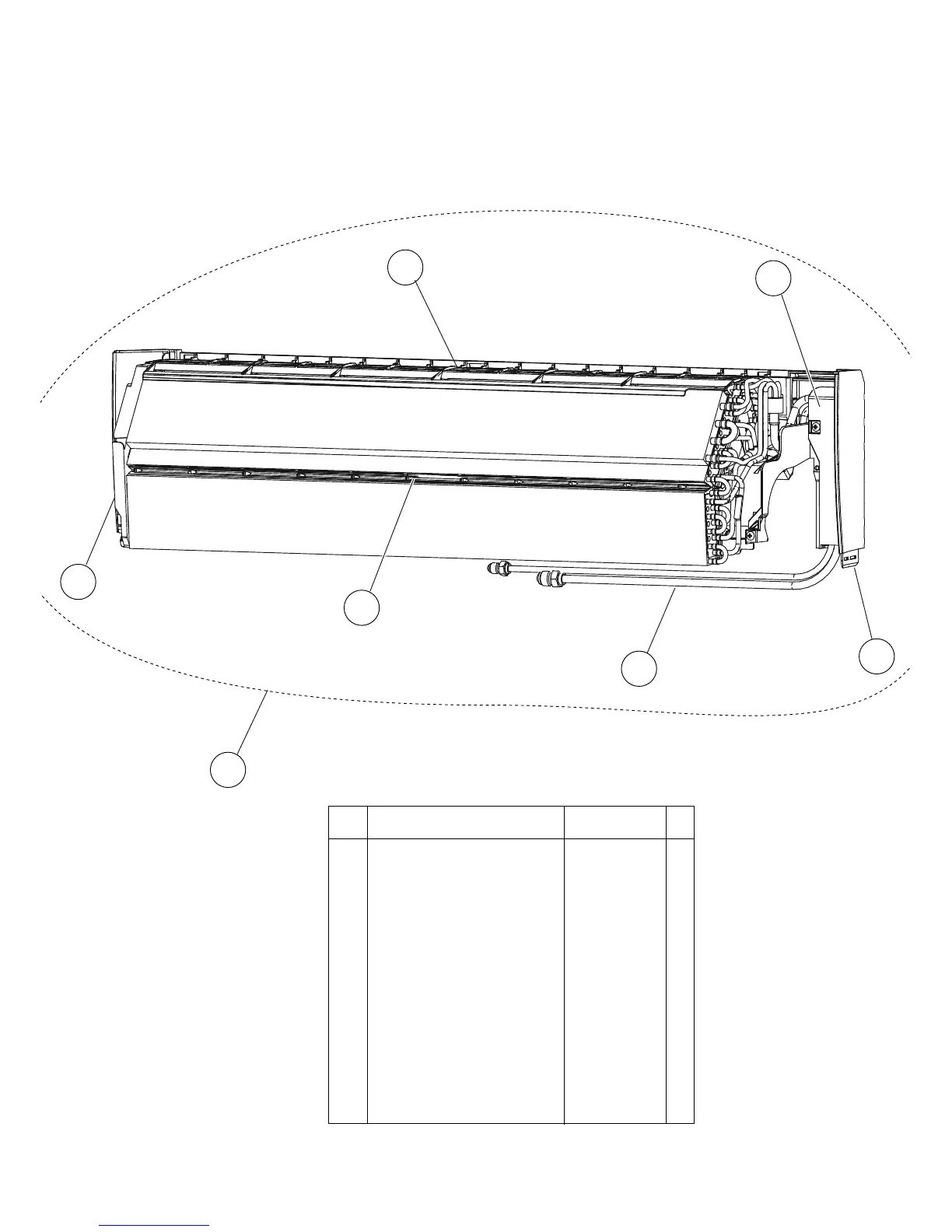

Evaporator Total Assy (07,09,12)
9319327006
31 Evaporator Total Assy (14) 9319327013
32 Joint Pipe Assy (14) 9319322018
32 Joint Pipe Assy (07, 09, 12) 9319322001
33 Joint Pipe Holder 9318901009
35
34
Filter Guide 9318887006
36 Evaporator Holder L 9318875003
Base 9318874006
37 Air Seal 9319295008
Ref. Description Part number
2011.03.11
31
INDOOR UNIT
COMPACT WALL MOUNTED
ASYG07LUCA
ASYG09LUCA
ASYG12LUCA
ASYG14LUCA
Evaporator
To Next Page
