INDOOR UNIT
COMPACT WALL MOUNTED
ASYG07LMCA
ASYG09LMCA
ASYG12LMCA
ASYG14LMCA

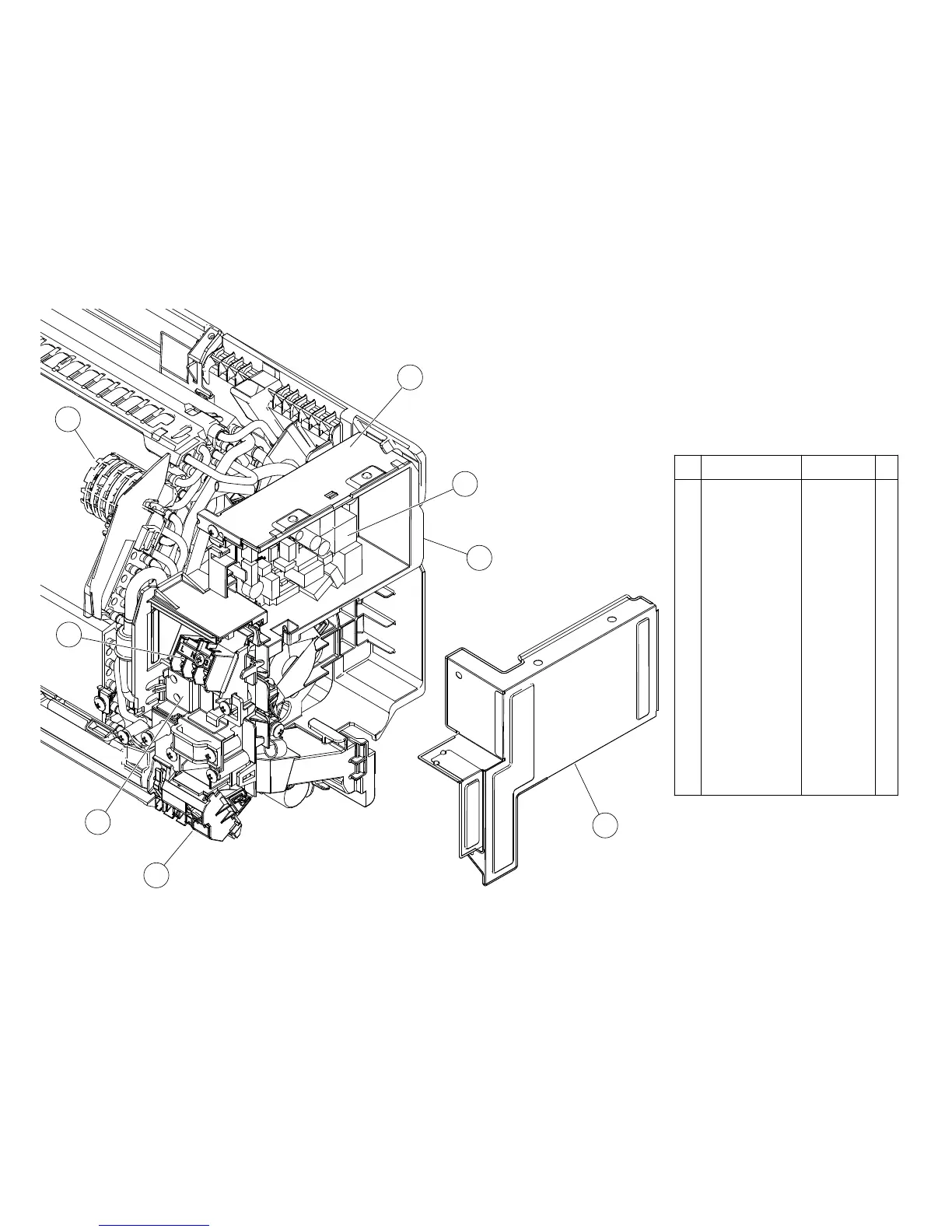

Control box
83
26
Terminal 9900720001
Main PCB (09) 9709427019
25
Earth Terminal 9332880007
21
Control Box
9332915006
22
Cover Shield
9332892000
23 Box Shield Assy 9332877007
24
Main PCB (07) 970942703324
Main PCB (12) 970942702624
Main PCB (14) 970942704024
28
Room Thermistor Holder
9332868005
Ref. Description Part number
27
-- Thermistor Assy 9900714024
Display Assy 9709430019
2013.02.27
27
23
25
26
To Next Page
