Fujitsu ASYG12LMCA - Page 81

94
2013.01.28
INDOOR UNIT
COMPACT CASSETTE
AUYG07LVLA
AUYG09LVLA
AUYG12LVLA
AUYG14LVLA
AUYG18LVLA
AUYG12LVLB
AUYG14LVLB
AUYG18LVLB

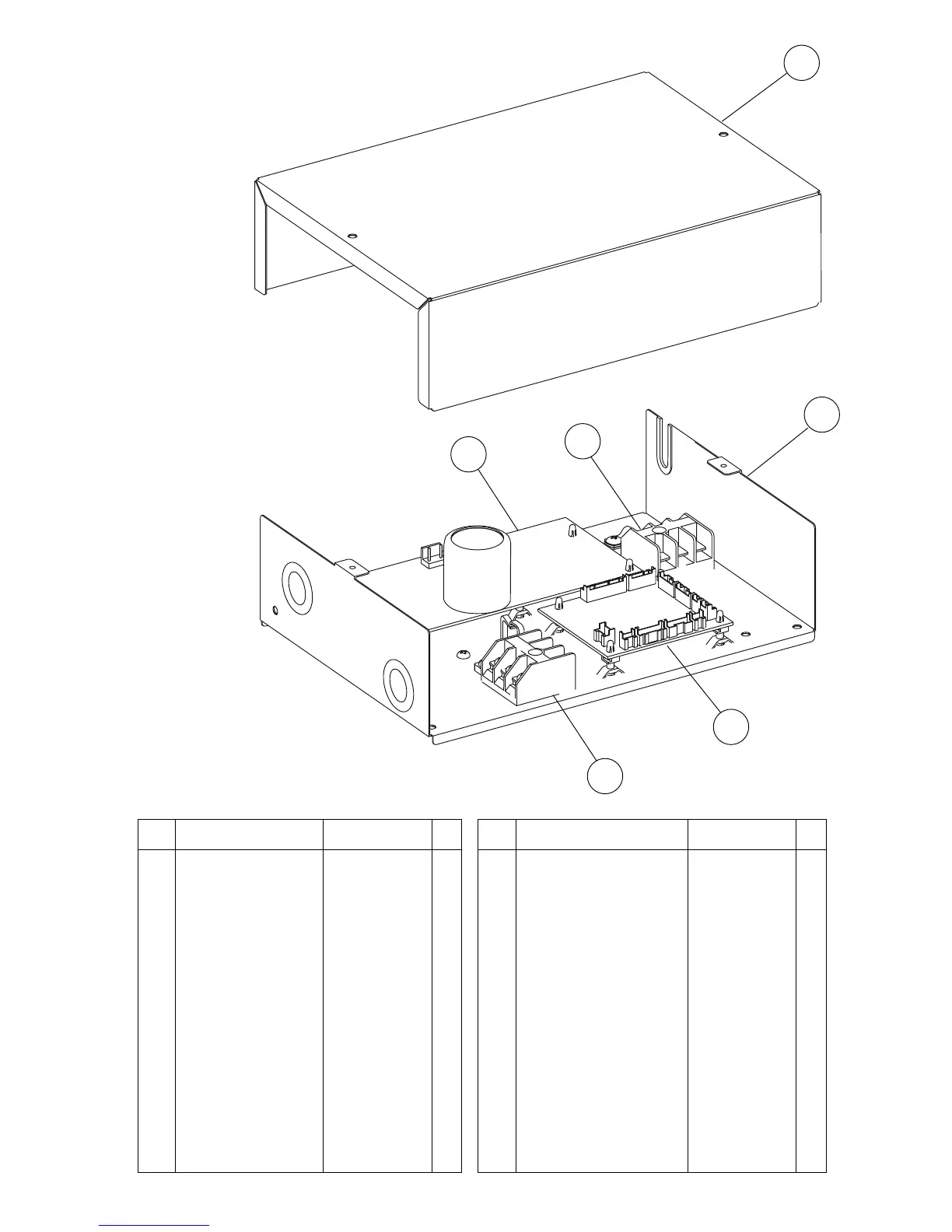

Control unit
31
32
33
34
35
36
31 Control Box Cover 9375512019
32 Control Box A 9375511012
33
33
33
Main PCB (09) 9707393743
33 Main PCB (07) 9707393736
Main PCB (12LVLA) 9707393750
33 Main PCB (14LVLA) 9707393767
Main PCB (18LVLA) 9707393774
33
33
Main PCB (12LVLB) 9709245422
33 Main PCB (14LVLB) 9709245439
Main PCB (18LVLB) 9709245446
Ref. Description Part number
34 Power Supply PCB (LVLA) 9707398250
34
Power Supply PCB (LVLB) 9707398380
35 Terminal 9306489045
36 Terminal 9703345012
-- Pipe Thermistor 9703297014
-- Room Thermistor 9900502003
-- Remote Control 9379219006
-- Remote Control Holder 9305642045
