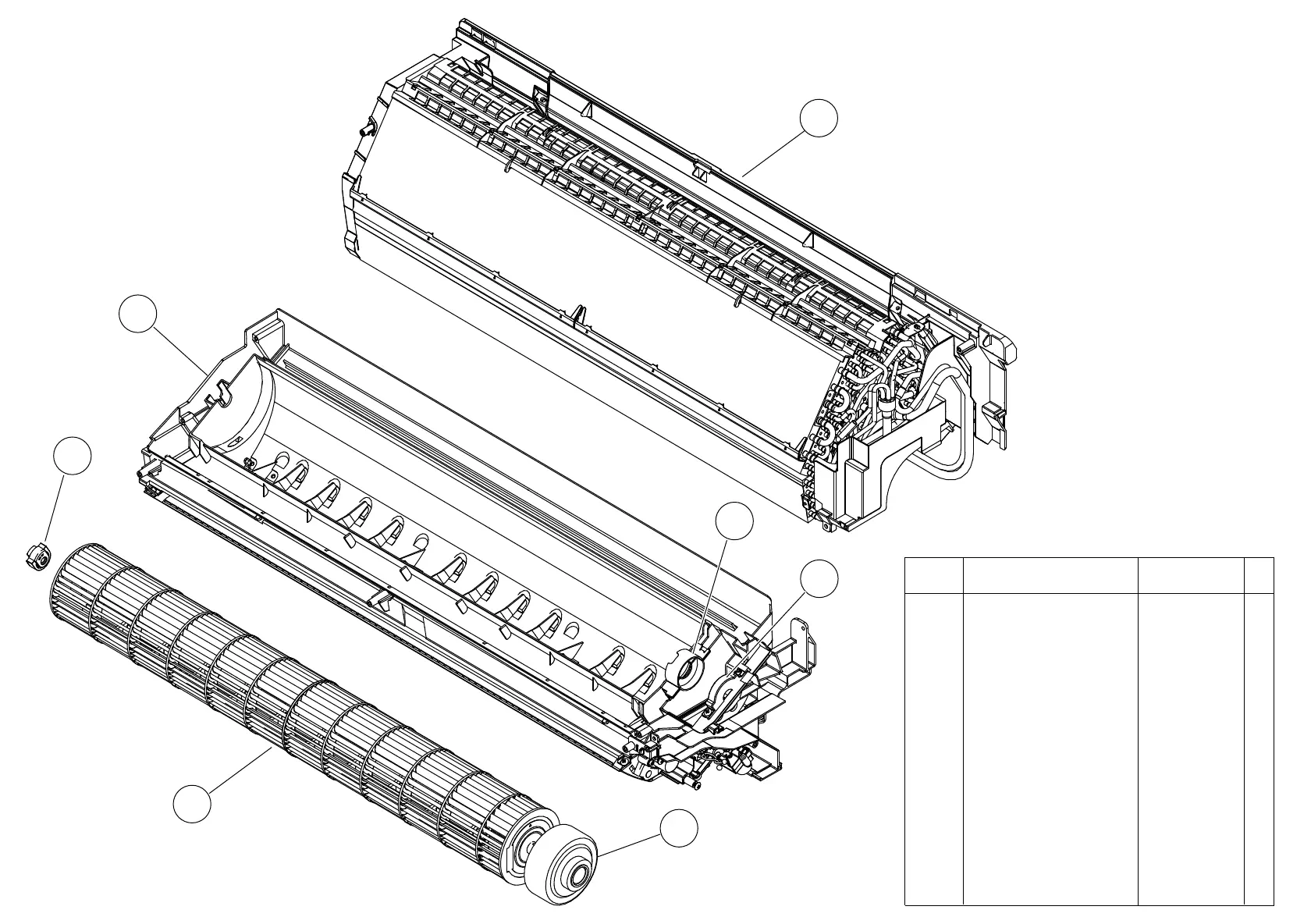

INDOOR UNIT
ASYG09LZCA
ASYG12LZCA
Evaporator
Fan
Fan Motor 9603253011
Crossflow Fan Assy 9315024060
Bearing C Assy 9306628017
27
22
Evaporator Total Assy 931925418021
Casing Total Assy 9319171180
23
24
Motor Cover 9316568006
Motor Cover 9316601000
25
26
Ref. Description Part number
122016.06.08
27
24
23
21
22
25
26
