Fujitsu ASYG14KMTB Design & Technical Manual

¢
Models: ASYG14KMTB, ASYG14KMCC, ASYG14KMCE,
ASYG14KMCF, ASYG14KETA, ASYG14KETA-B, ASYG14KETE,
ASYG14KETE-B, ASYG14KETF, and ASYG14KETF-B
 Cooling

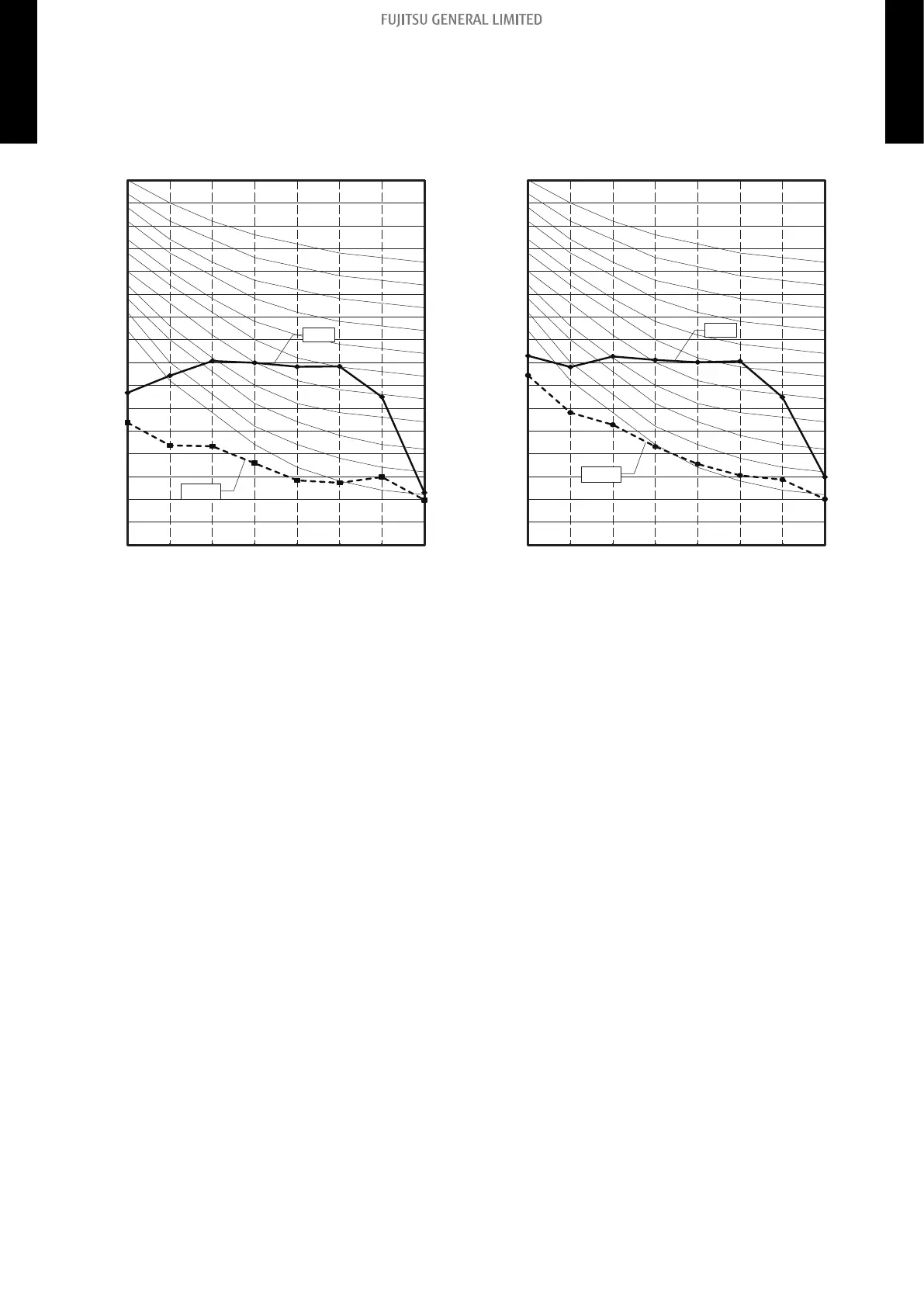

Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
HIGH
QUIET
 Heating
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
HIGH
QUIET
- 173 -
9-5. Wall mounted type
9. Noise level curve
4-5 UNIT MULTI-SPLIT TYPE 4-5 UNIT MULTI-SPLIT TYPE

Fujitsu ASYG14KMTB Specifications

General

Brand	Fujitsu
Model	ASYG14KMTB
Category	Air Conditioner
Language	English
