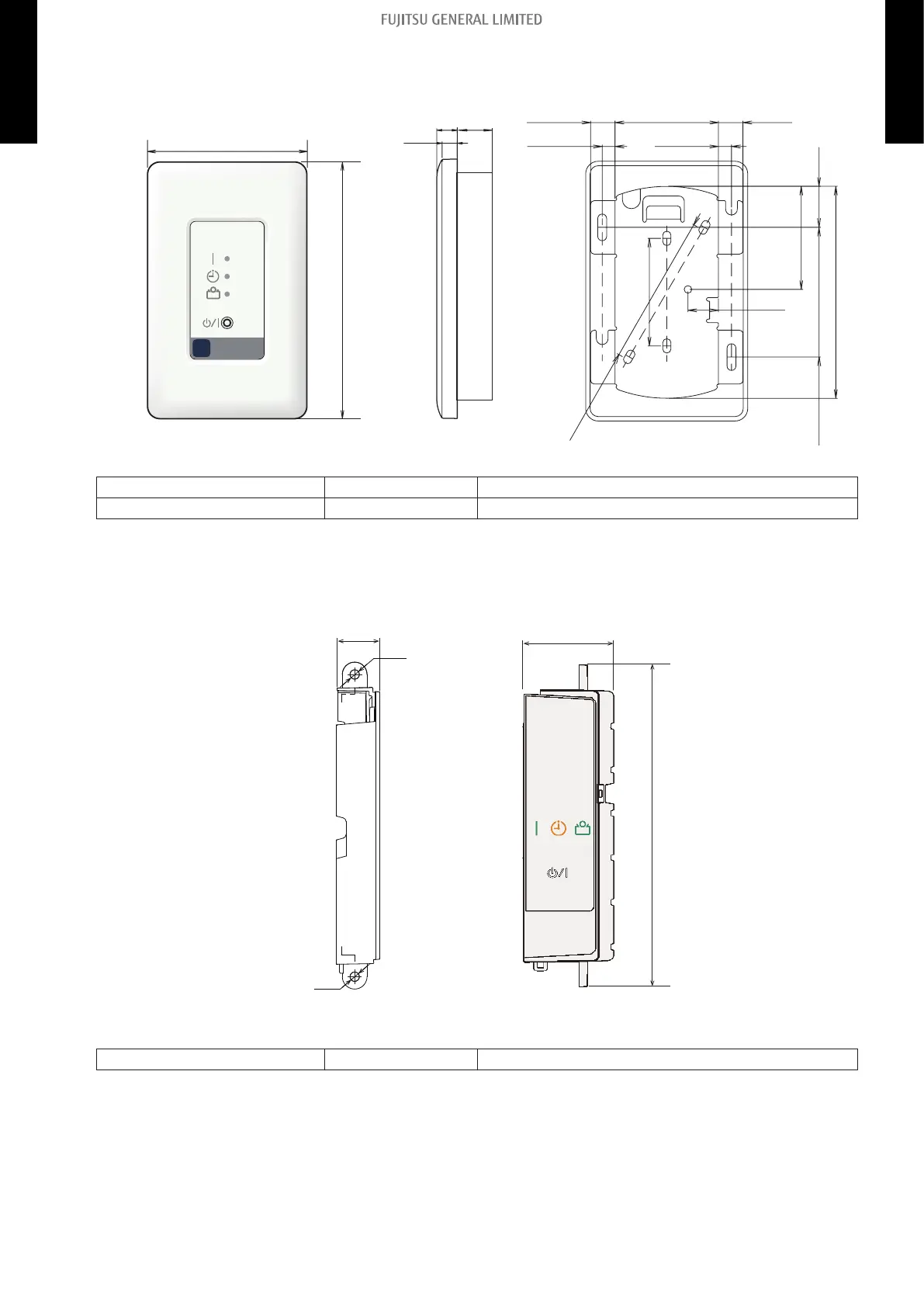

Fujitsu ASYG14KMTB Design & Technical Manual

 IR receiver (UTY-LBTYM)
Unit: mm
Front view
90
8.5
11.5 18.5
13.6
7.2 7.2
17
57.4 13.6
145
22.9
118.4
60
72.4
83.5
57.6
Side view Rear view
Size (H × W × D) mm 145 × 90 × 30
Weight g 150
 IR receiver (UTY-LBTYH)
Unit: mm
Front view
174.8
Side view
23.3
48.6
Ø 5.0
(Hole)
Ø 5.0
(Hole)
Size (H × W × D) mm 174.8 × 48.6 × 23.3
- 267 -
14-6. Wireless remote controller (UTY-LNTY: Optional part) and IR receiver kit with
Wireless remote controller (UTY-LBTYM or UTY-LBTYH: Optional part)
14. Remote controller
4-5 UNIT MULTI-SPLIT TYPE 4-5 UNIT MULTI-SPLIT TYPE

Fujitsu ASYG14KMTB Specifications

General

Brand	Fujitsu
Model	ASYG14KMTB
Category	Air Conditioner
Language	English
