Fujitsu ASYG14KMTB User Manual

En-5

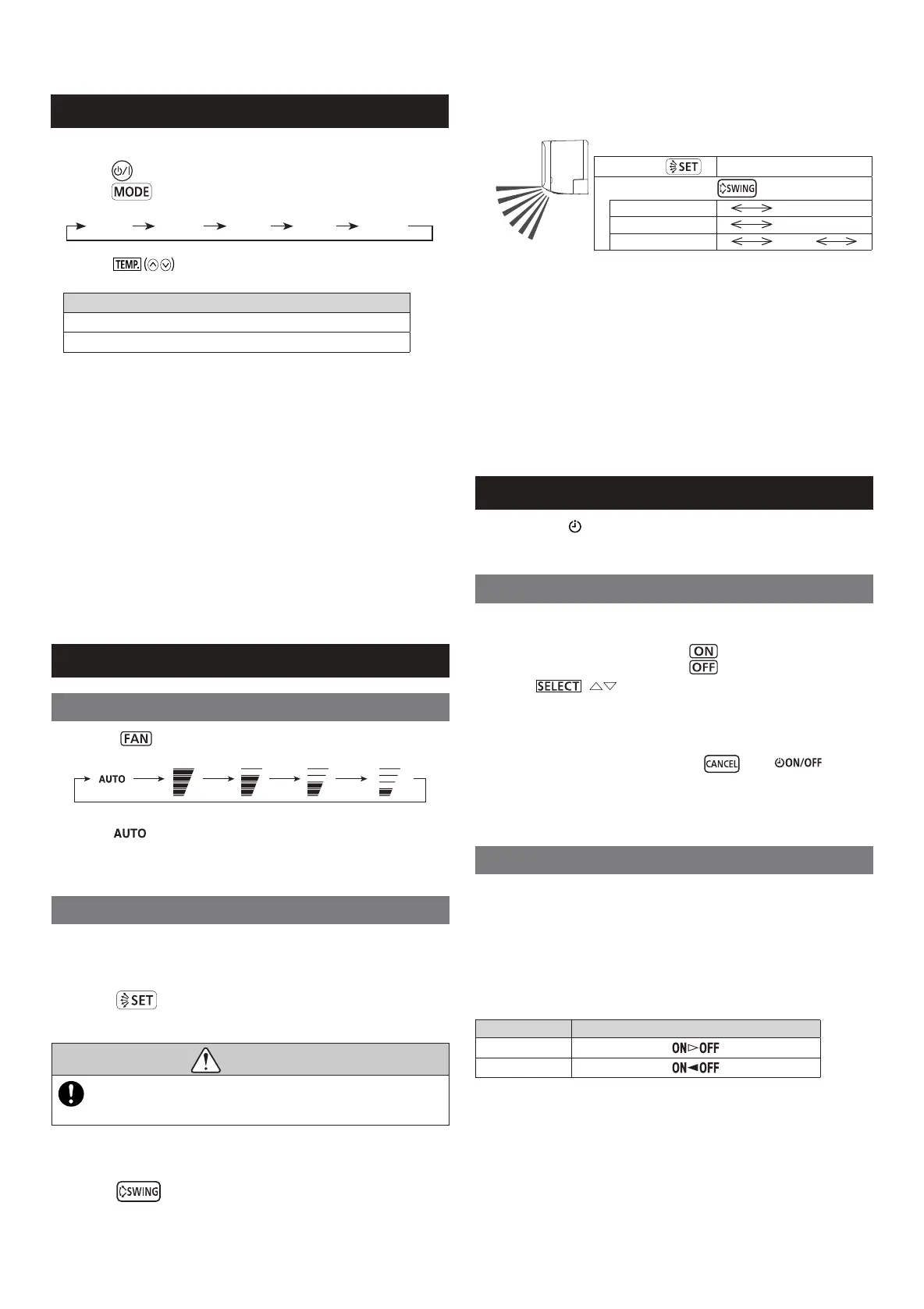

5. AIRFLOW SETTINGS
5.1. Fan speed setting

Press to control the fan speed.
The fan speed changes as follows.
(Auto) (High) (Med) (Low) (Quiet)
When
is selected, the fan speed depends on the operating
condition.
To increase the air cleaning effect, set the fan speed to High.
5.2. Airow direction setting
For details of the airow ranges, refer to “Airow direction
range”.
■
Vertical airow direction setting

Press to adjust the vertical airow direction.
■
Horizontal airow direction setting
CAUTION
Before you adjust the horizontal airow direction, make
sure that the vertical airow direction louver has been
stopped completely.

Adjust two knobs by hand.
■
Swing operation setting

Press to start/stop the Swing operation.
NOTES: The Swing operation may stop temporarily when the indoor
unit fan is rotating at very low speed or is stopped.
6. TIMER OPERATIONS
NOTES: When [ ] indicator on the indoor unit blinks, set the clock
and timer again. This blinking shows that the internal clock go
wrong due to an interruption of the power supply.
6.1. On timer or Off timer
The On timer starts the operation at your desired time.
The Off timer stops the operation at your desired time.
1.
When you use the On timer, press .
When you use the Off timer, press .
2. Press
()
to set on time or off time.
Pressing the button: The time will change by +5/-5 minutes.
Pressing and holding down the button: The time will change by
+10/-10 minutes.
• To deactivate the On/Off timer, press
while is shown
on the remote controller display.
The indicator will disappear.
NOTES: If you set the Sleep timer after setting the On timer or Off
timer, the On timer or Off timer is canceled.
6.2. Program timer
The Program timer operates as the combination of the On timer and Off
timer.
1. Set On timer and Off timer. (Refer to “6.1. On timer or Off
timer”).
The timer setting changes to the Program timer
automatically.
The timer whose setting time is closer to the current time works rst.
The order of the timer operation is displayed as follows:
Timer Indicator on the remote controller display
On→Off timer
Off→On timer
NOTES:
● You can set the Program timer only within a span of 24 hours.
● If you set the Sleep timer after setting the Program timer, the
Program timer is canceled.
4. BASIC OPERATIONS
■
3 steps to start operation
1. Press to start or stop the operation.
2. Press
to select the operation mode.
The operation mode changes as follows.
AUTO COOL DRY FAN HEAT
3. Press to set the desired temperature.
The temperature changes by 1 °C increments.
Temperature setting range
Auto/Cooling/Dry 18 - 30 °C
Heating 16 - 30 °C
NOTES:
• In the Cooling or Dry mode, set the temperature lower than the
current room temperature.
• In the Cooling mode, the indoor unit fan may stop from time to time
to perform Fan control for energy saving that enables power-saving
operation by stopping the rotation of the indoor unit fan when the
outdoor unit is stopped.
In initial setting, this function is activated.
To deactivate the function, consult the installer or authorized service
personnel.
• In the Heating mode,
- set the temperature higher than the current room temperature.
- at the beginning of the operation, the indoor unit fan rotates at very
low speed for 3-5 minutes.
- the Automatic defrosting operation overrides the Heating operation
when necessary.
• In the Fan mode, temperature control is not available.
■
Airow direction range
Vertical airow direction
1
2
3
4
5
6
Change by
1
⇄
2
⇄
3
⇄
4
⇄
5
⇄
6
Swing operation by
Cooling, Dry 1 4
Heating 3 6
Fan * 1 4 or 3 6
* The Swing operation range depends on the airow direction set before
the Swing operation.
NOTES:
• Do not adjust the airow direction louvers by hand.
• In the Auto or Heating mode, the airow direction stay position 1 for
a while from the start of the operation.
• In the Cooling or Dry mode, position 1-3 is recommended to prevent
condensation drips damaging your property. If position 4-6 keeps for
30 minutes or more in these modes, the airow direction changes to
position 3 automatically.
• When using the mobile app (optional wireless LAN control is
necessary), the vertical airow can be selected from 4 positions.
9387858020_OM.indb 5 2/8/2019 1:53:15 PM
