Fujitsu ASYG14LUCA User Manual

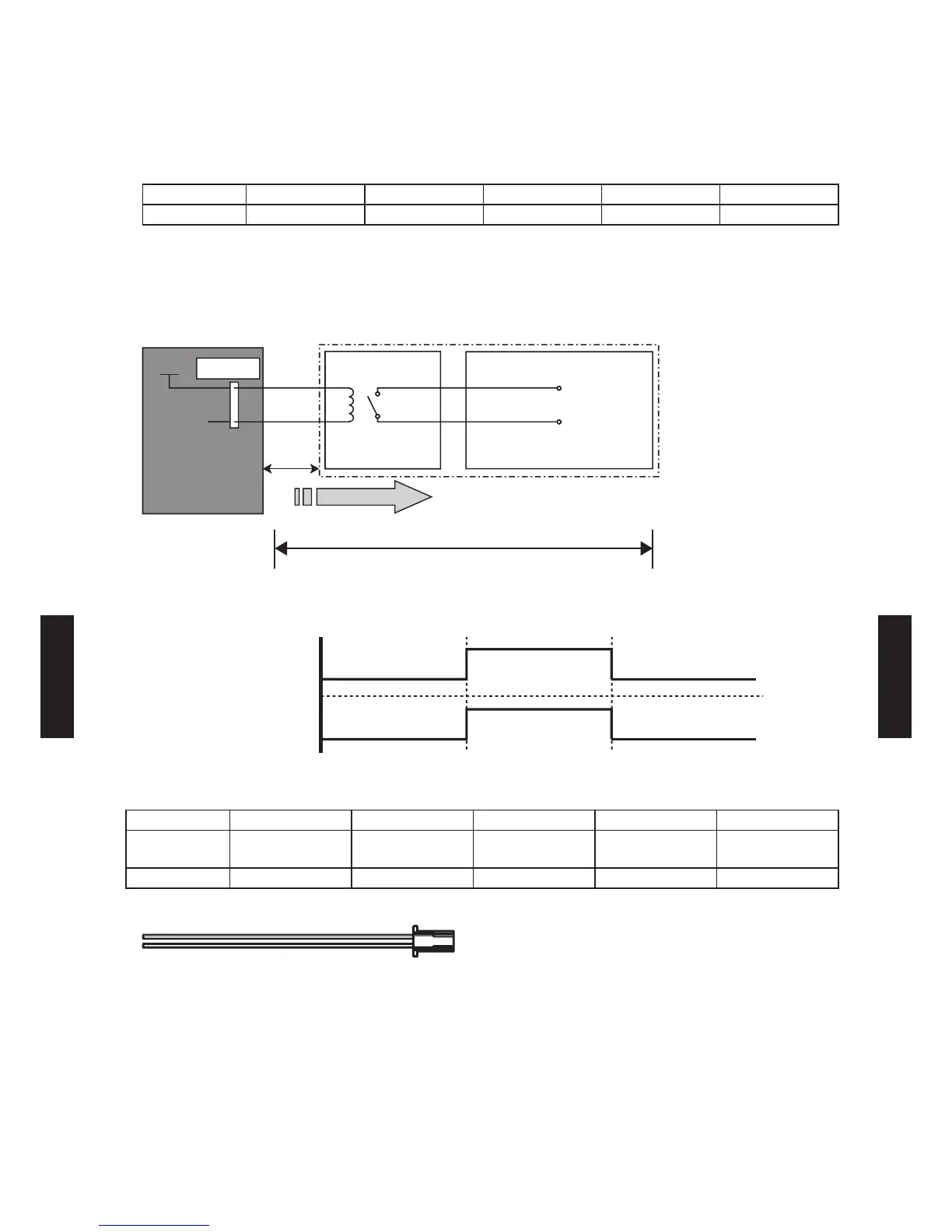

6. SYSTEM DESIGN
FRESH AIR CONTROL OUTPUT

Compact Cassette Slim Duct Wall Mounted Floor / Ceiling Floor
Connector CN6 CN6 - - -
A signal linked to air conditioner indoor fan ON can be output.
* However, signal becomes OFF during cold air prevention control operation.
Circuit diagram example

* Make the distance from the PC board to the connected unit within 10 m.
Relay spec.: Rated DC 12 V, 50 mA to less.
ON
OFF
Operation
Stop
Indoor fan
Output signal
Parts (Optional)

Compact Cassette Slim Duct Wall Mounted Floor / Ceiling Floor
Parts name
Fresh air intake
kit
External control
set
- - -
Model name UTZ-VXAA *1 UTD-ECS5A - - -
NOTE: This wire is included in Fresh air intake kit (UTZ-VXAA).
Field supply
Indoor unit
control PC board
Connector
1
12 V
on/off
2
Signal
Relay
power
supply
Ex.) Fan
Connected unit
Ex.) Relay unit
*10 m
