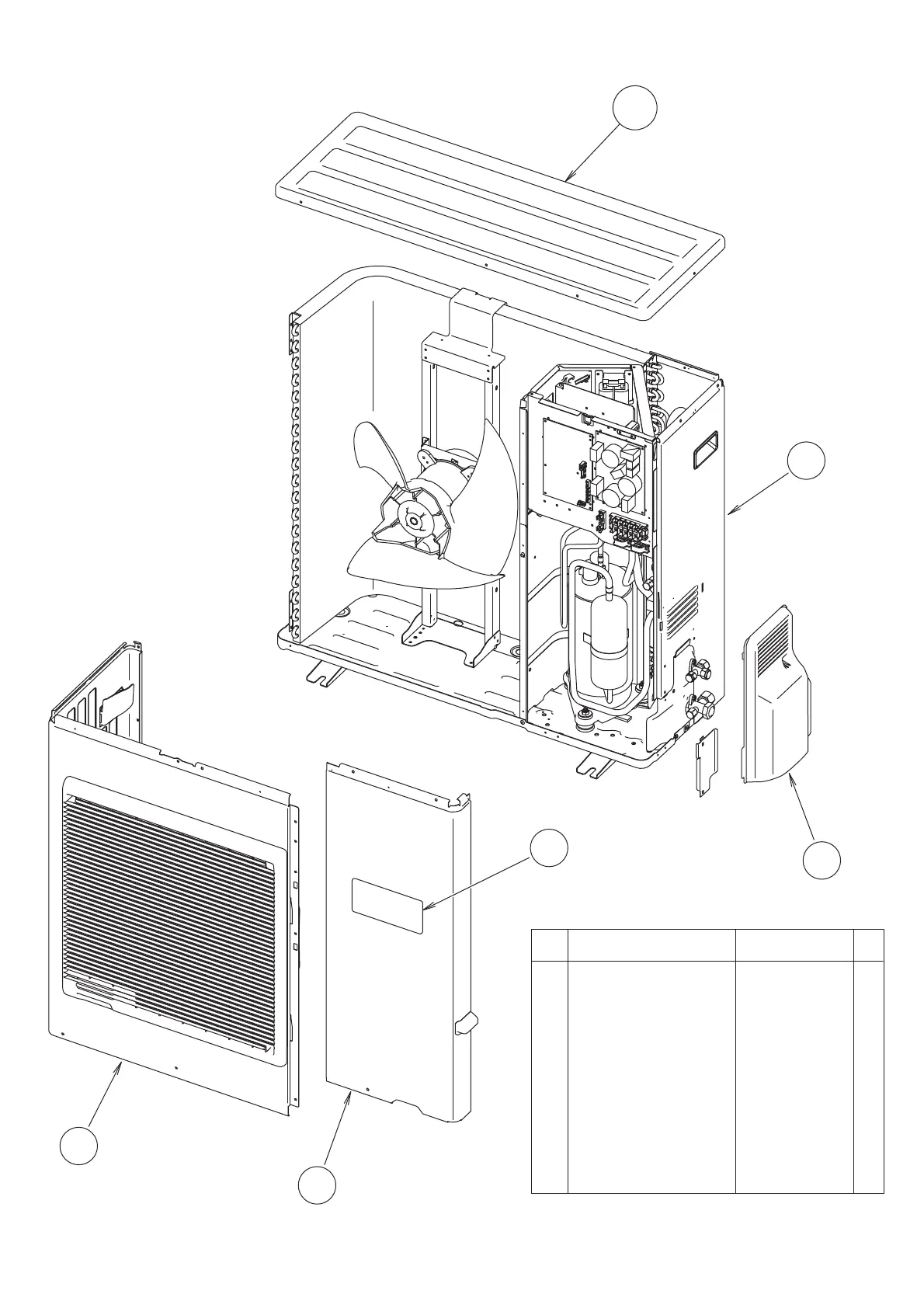

OUTDOOR UNIT
PARTS
2011.01.31 18
5
6
4
3
2
1
1 Top Panel Sub Assy 9374417032
2 Front Panel Sub Assy 9374414079
-- Protective Net 9375381011
-- Drain Assy 9303029015
-- Drain Cap 313166024302
3
Service Panel Sub Assy
9374415052
5 Right Panel Sub Assy 9374416127
4 Emblem Rear 9351355005
6 Valve Cover 9374174010
Ref. Part numberDescription
