En-2

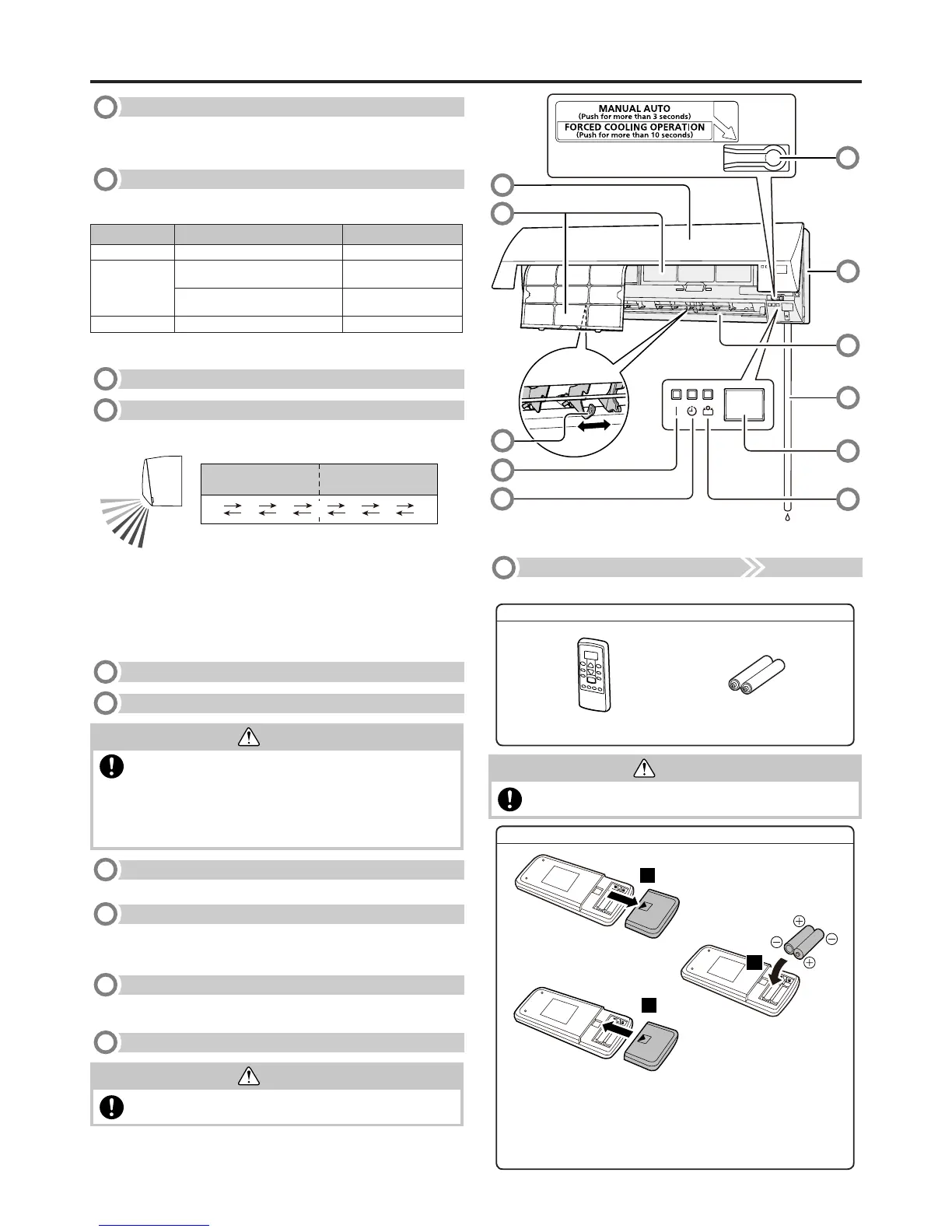

OPERATING MANUAL
1 Intake grille
Before starting operation, make sure that the intake grille has been
shut completely. Incomplete closing might have an effect on the
proper working or performance of the product.
2 Manual AUTO button
Use when you lost the remote controller or remote control malfunction
occurs.
Status Action Mode or operation
In operation Press more than 3 seconds. Stop
Stopping Press more than 3 seconds and
less than 10 seconds.
AUTO
Press more than 10 seconds.
(Only for servicing.*)
Forced cooling
After cleaning Press less than 3 seconds. Filter indicator reset
*:To stop forced cooling, press this button or START/STOP button on
the remote controller.
3 Front panel
4 Vertical airow direction louver
Each time you press SET button on the remote controller, the angle
of the vertical airow direction louver moves as follows:
1 2
3
76
5
* *
4
COOL or DRY mode
HEAT mode
1
2
3
4
5
6
7
*: Default setting in each mode.
• Do not adjust by hand.
• At the beginning of AUTO or HEAT mode, they may stay position 1
for a while for adjustment.
• If you set the angle to position 5–7 for more than 30 minutes in
COOL or DRY mode, they automatically return to position 4.
In COOL or DRY mode, if the angle is set to position 5–7 for many hours,
condensation may be formed, and the drips may wet your property .
5 Drain hose
6 Remote control signal receiver
CAUTION
For appropriate signal transmission between remote controller and
the indoor unit, keep the signal receiver away from following items :
- Direct sunlight or other strong light
- Flat-panel television screen
In rooms with instantaneous uorescent lights, such as in-
verter type ones, the signal may not be transmitted properly. In
such a case, consult the store that you purchased the product .
7 ECONOMY indicator (green)
Lights in ECONOMY operation.
8 TIMER indicator (orange)
Lights in TIMER operation, and blinks slowly when the timer setting
error is detected.
As for the timer setting error, refer to “Auto-restart function” on page 4.
9 OPERATION indicator (green)
Lights in normal operation, and blinks slowly in automatic defrosting
operation.
10 Horizontal airow direction louvers
CAUTION
Before you adjust the horizontal airow direction, make sure that
the vertical airow direction louver has been stopped completely .
Adjust two knobs by hand.
11
1
2
3
4
5
10
7
8
9
6
See page 5
11 Air lter
Easy-to-care air lters resist mildew growth.
Indoor unit accessories
Remote controller Batteries
WARNING
Take care to prevent infants and small children from acciden-
tally swallowing the batteries.
Battery (AAA/R03/LR03 × 2) loading
Notes:
• Use specied type of battery only.
• Do not use new battery and used battery together.
• Batteries can be used about 1 year in ordinary use.
• If the remote control range noticeably got shorten, replace the
batteries, and press RESET button.
1
2
3
Indoor Unit Overview and Operations
