Models : AUU18RCLX
AUU24RCLX
CONTROLLER PCB ASSEMBLY ( MAIN PCB )
AUU18RCLX : K01AL-050KHSE-C1
AUU24RCLX : K01AL-050LHSE-C1
2005.12.22 13

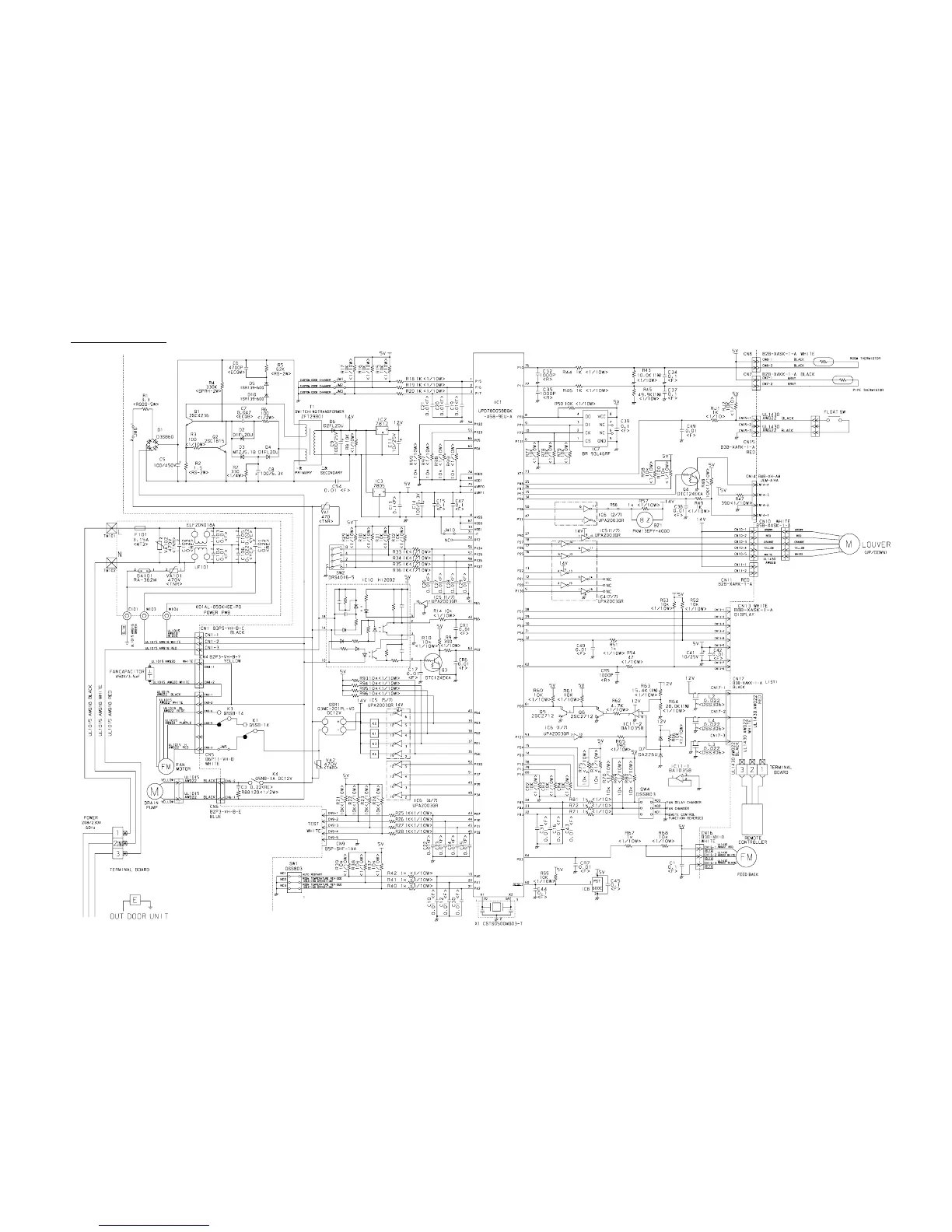

INDOOR PCB CIRCUIT DIAGRAM
