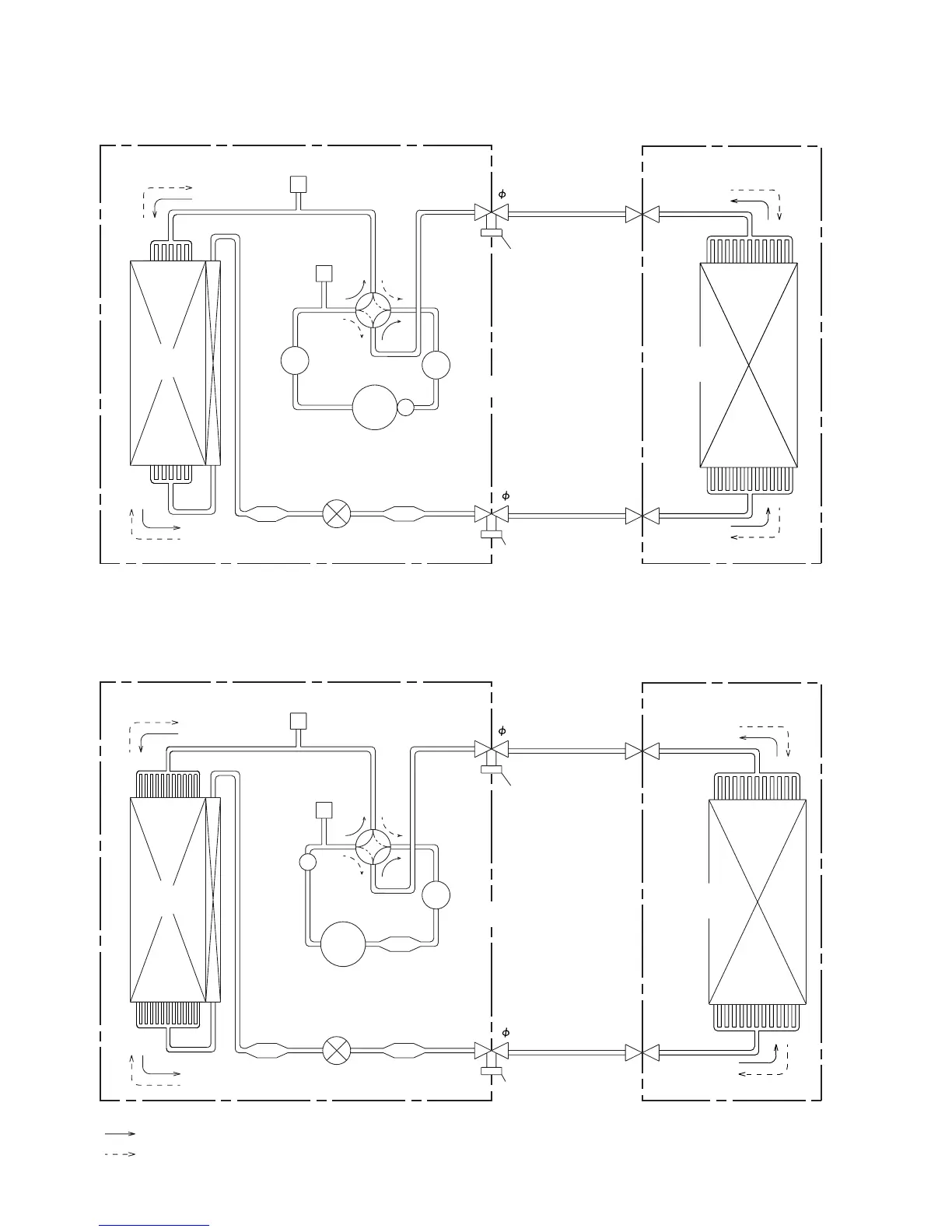

Evaporator
OUTDOOR UNIT
Pressure
Check Valve
Condenser
4-way
Valve
High Pressure
Switch
High Pressure
Switch
Accumulator
Muffler
Accumulator
Compressor
Expansion
Valve
Refrigerant Pipe
9.52mm (3/8")
Charging Valve
Charging
Valve
Refrigerant Pipe
15.88mm (5/8")
INDOOR UNIT
Strainer
Strainer
Models :
AUU24RCLX / AOU24RLX
AUU36RCLX / AOU36RLX
OUTDOOR UNIT
Pressure
Check Valve
Condenser
4-way
Valve
Muffler
Compressor
Expansion
Valve
Refrigerant Pipe
9.52mm (3/8")
Charging Valve
Evaporator
Charging
Valve
Refrigerant Pipe
15.88mm (5/8")
INDOOR UNIT
Strainer
Strainer
Strainer
: COOL
: HEAT
Models : AUU42RCLX / AOU42RLX
