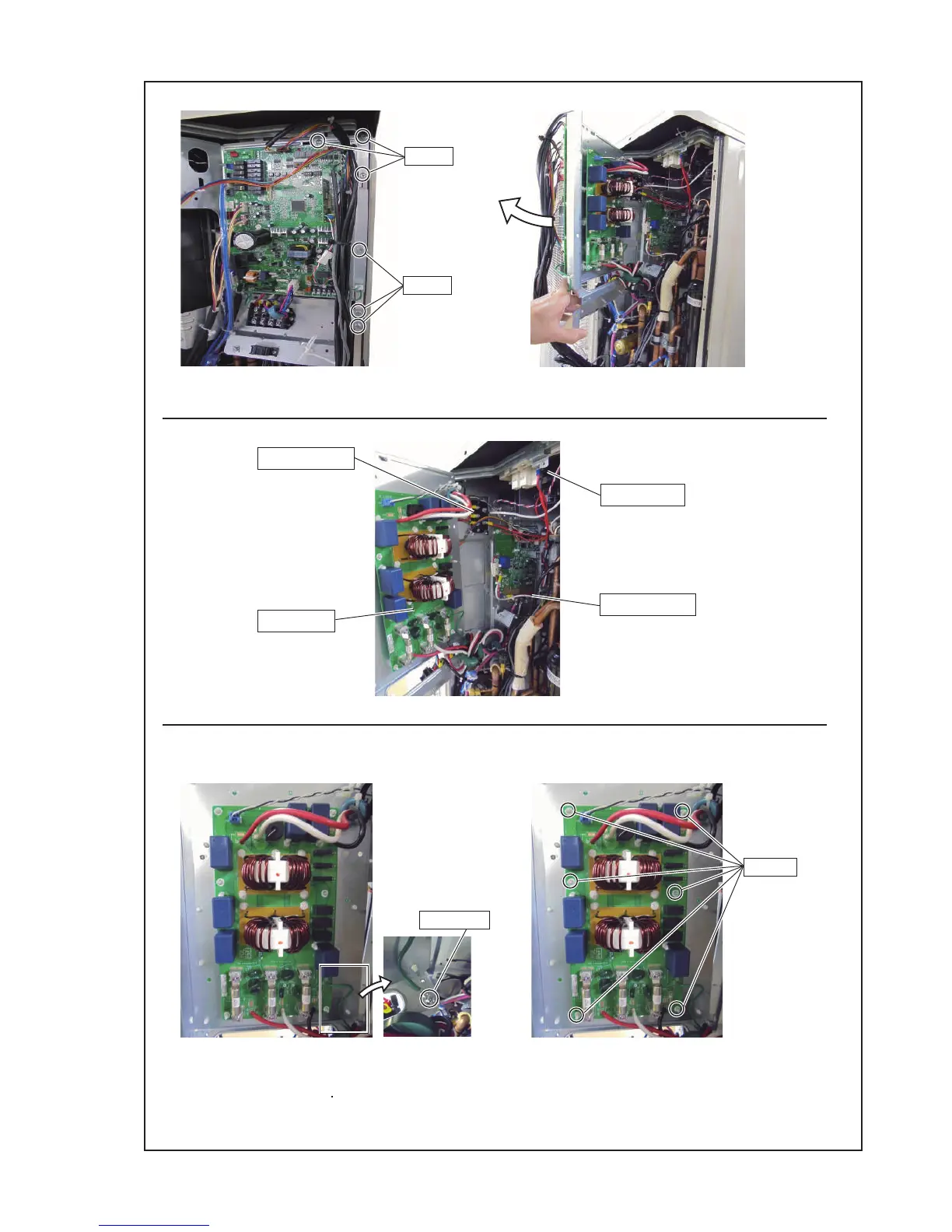

Remove the 6 mounting screws.
06-03
Screws
FITER PCB
DIODE BRIDGE
INVERTER PCB
5. INVERTER PCB, FILTER PCB, DIODE BRIDGE and POWER PCB removal
Open the CONTROL BOX (MAIN).
Remove the spacers.
(6 places)
Remove the connectors and Earth screws.
Earth screw
Spacers
5 -1. FILTER PCB removal
Note the tightening torque
at the installation.
Tightening torque is 2.5 + 0.2N m.
(except for the earth screw)
-
Screws
POWER PCB
