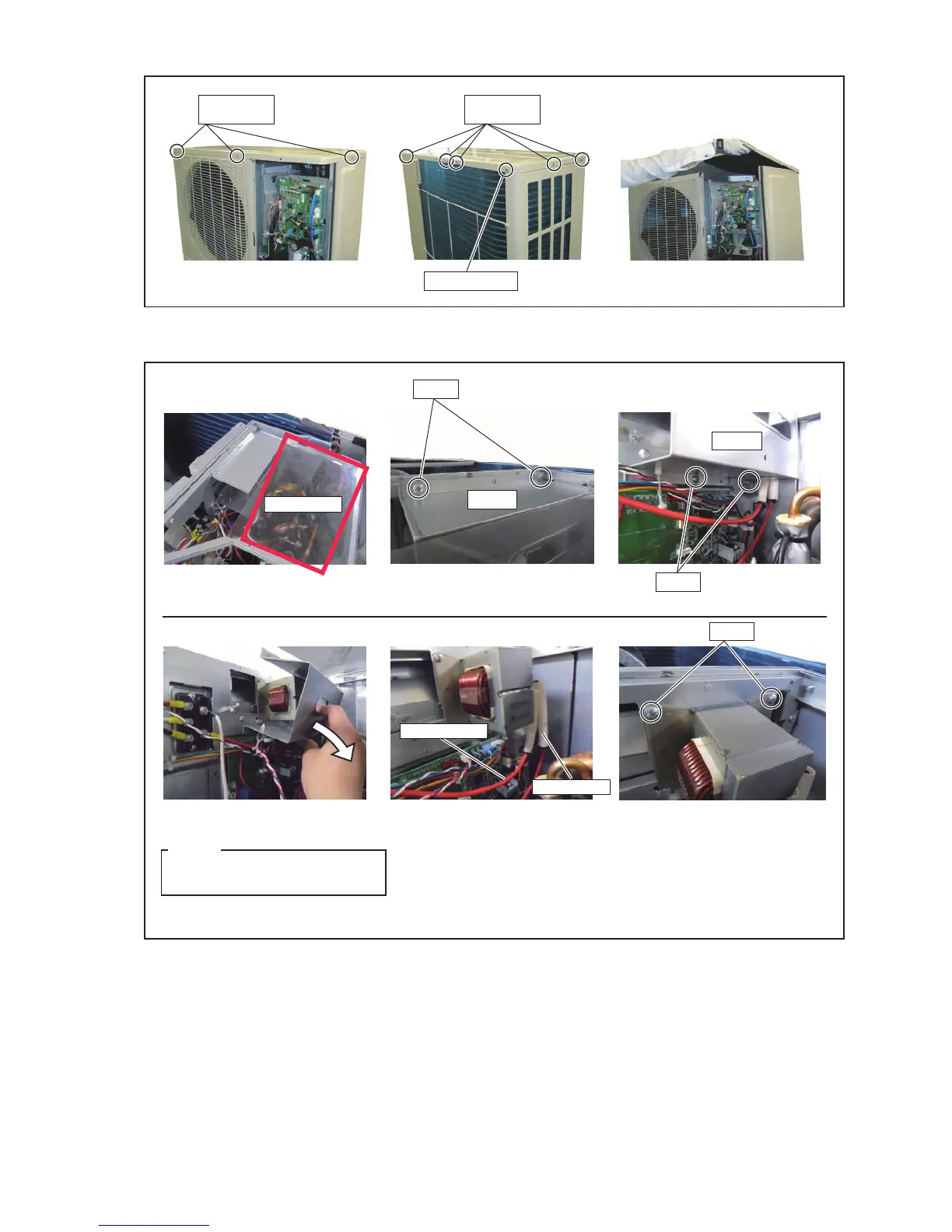

11. TOP PANEL removal
06-10
Screw (serrated)
Screws
(with washer)
Screws
Screws
(with washer)
12. REACTOR removal
Remove the mounting screws.
Need remove the POWER PCB.
Remove the Wire and
mounting screw.
Remove the mounting Screws.
Remove the DUCT C.
Remove the TOP PANEL.
Caution
- Protect the choke coil, wiring, and
pipes from the edge of DUCT C.
DUCT
C
DUCT
C
Screws
Screws
Remove the REACTOR.
To DIODE BRIDGE
To POWER PCB
POWER PCB
