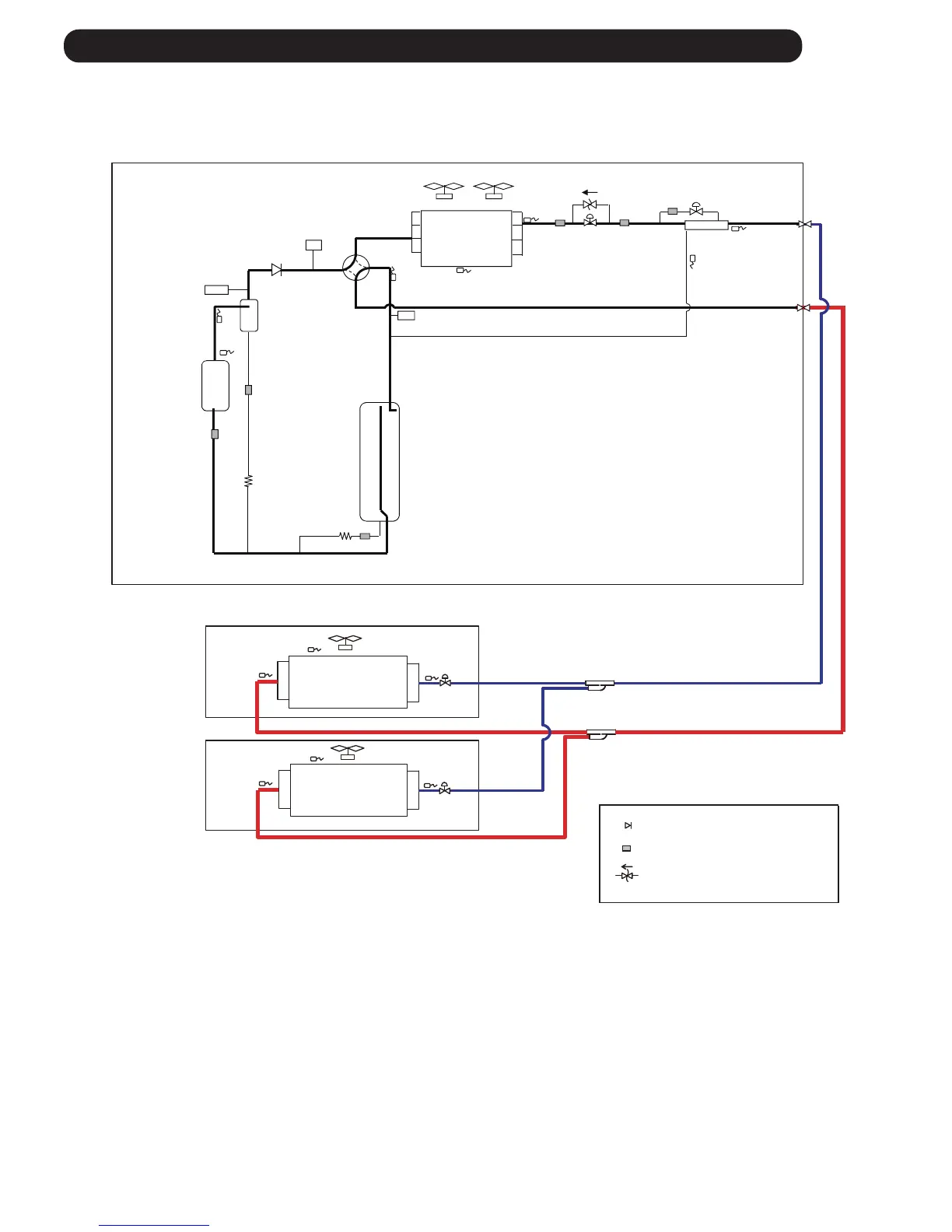

5-1 REFRIGERANT CIRCUIT
05 - 01
MODELS : AJ
072LELAH, AJ
090LELAH, AJ
108LELAH
Outdoor unit
EEV21
EEV21
LIQUID LINE
FAN21
FAN21
Indoor unit1
HEX21
HEX21
Indoor unit2
GAS LINE
TH21
TH22
TH23
TH23
TH21
TH22
: Check valve
: Strainer
: Pressure regulation valve
CMP１
INV
OS
HEX
SCHEX
HPS
FAN1
LPS
EEV1
EEV2
TH1
TH3
TH4
TH5
TH7
TH9
TH10
HPSW1
FAN2
ACM
