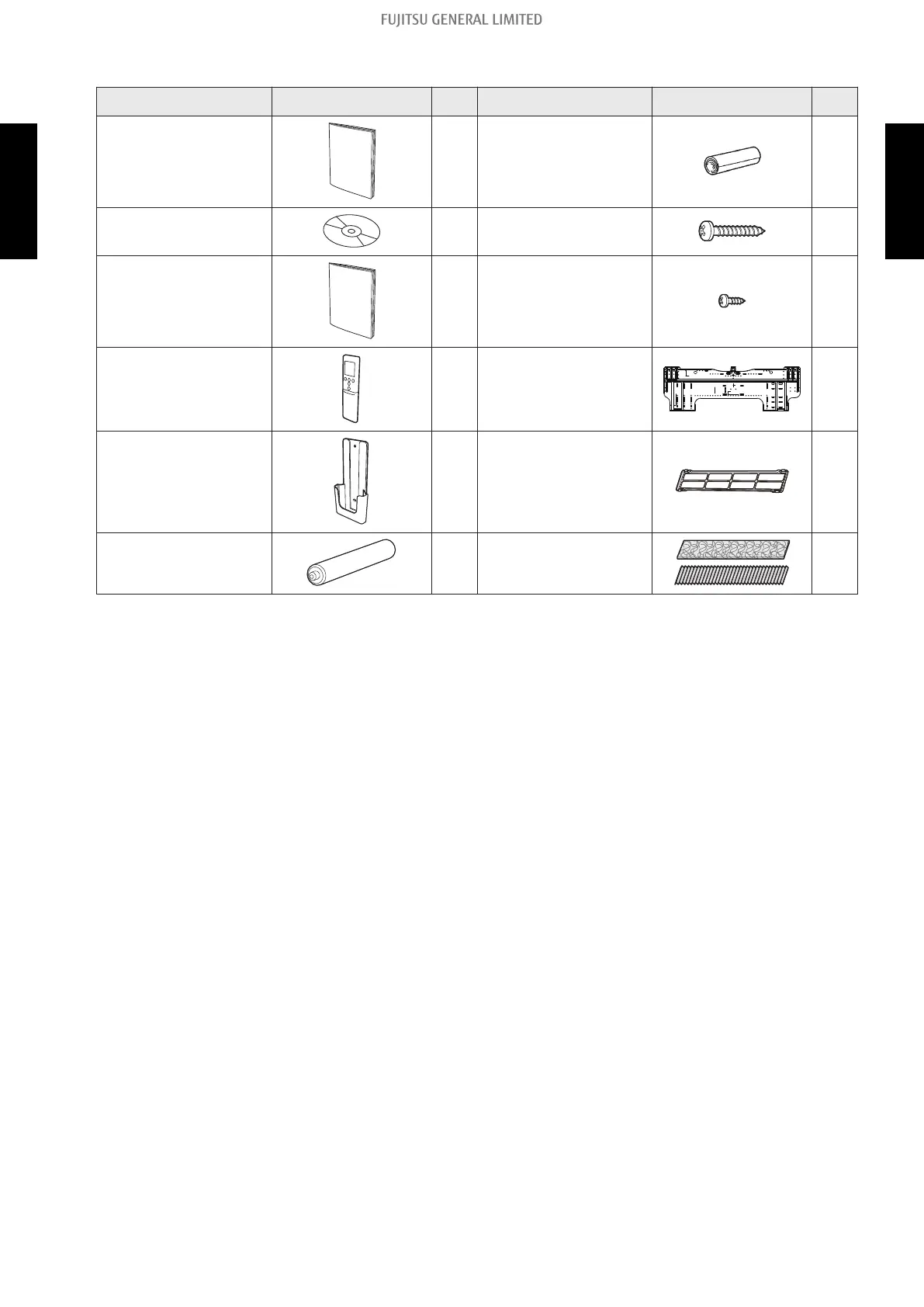

Model: ASYG18KMTE

Part name Exterior Qty Part name Exterior Qty

Operation manual 1 Cloth tape 1

Operation manual

(CD-ROM)

Self-tapping screw

(large)

Installation manual 1

Self-tapping screw

(small)

Remote controller 1 Wall hook bracket 1

Remote controller

holder

2 Filter holder 2

Battery 2 Air cleaning filters 1
