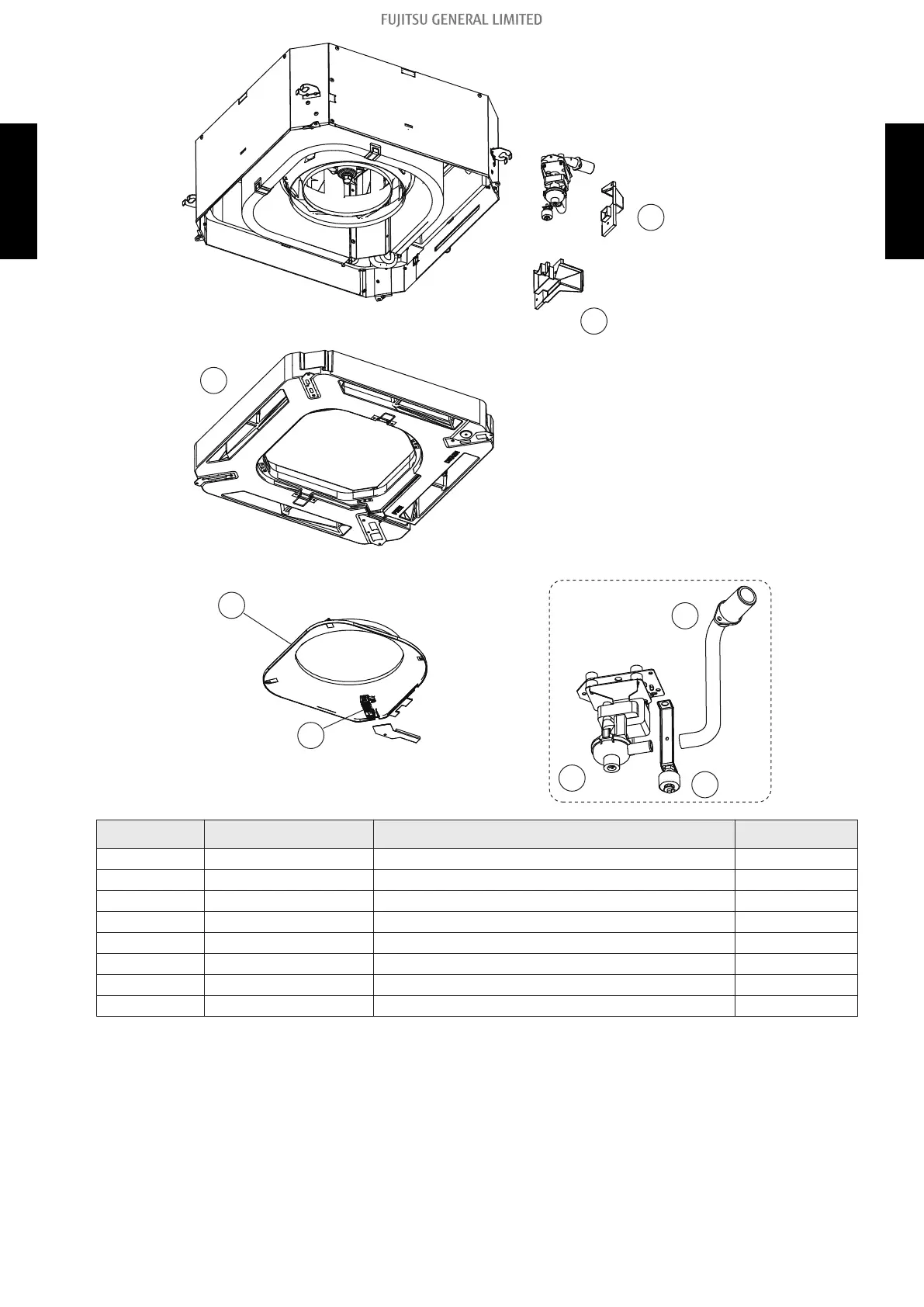

Wire holder
25
23
22
24
21
27
28
26
Item no. Part no. Part name Service part
21 9375516017 Wire cover ♦
22 9375515010 Pipe cover ♦
23 9375503017 Bell-mouth hood ♦
24 9375477011 Thermistor holder ♦
25 9377765024 Drain pan sub assy (For 18 model) ♦
26 9375718015 Drain port sub assy ♦
27 9375721046 Float switch sub assy ♦
28 9375717025 Drain pump sub assy ♦
3-1. Compact cassette type - (02-6) - 3. Indoor unit parts list
