Fujitsu AUXG22KVLA - Wiring Diagrams; Compact Cassette Type; Slim Duct Type

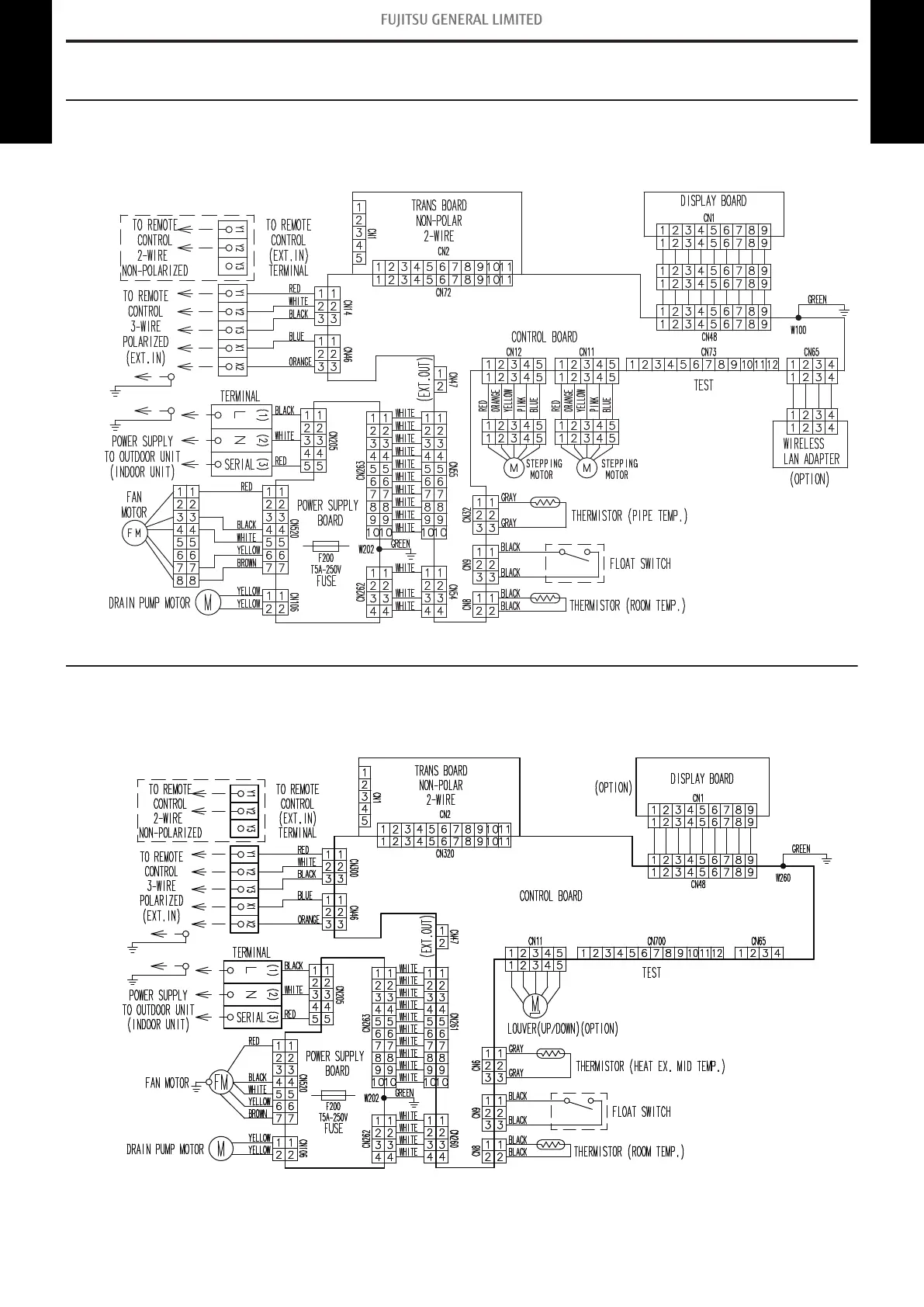

4. Wiring diagrams
4-1. Compact cassette type
¢
Models: AUXG18KVLA, AUXG22KVLA, and AUXG24KVLA
4-2. Slim duct type
¢
Mo
del: ARXG18KLLAP
WLAN adapter,
Converter etc.
(Option)
- 12 -
4-1. Compact cassette type 4. Wiring diagrams
INDOOR UNITS SIMULTANEOUS MULTI INDOOR UNITS SIMULTANEOUS MULTI
