2008.06.25
24
1
2
9
7
5
6
3
4

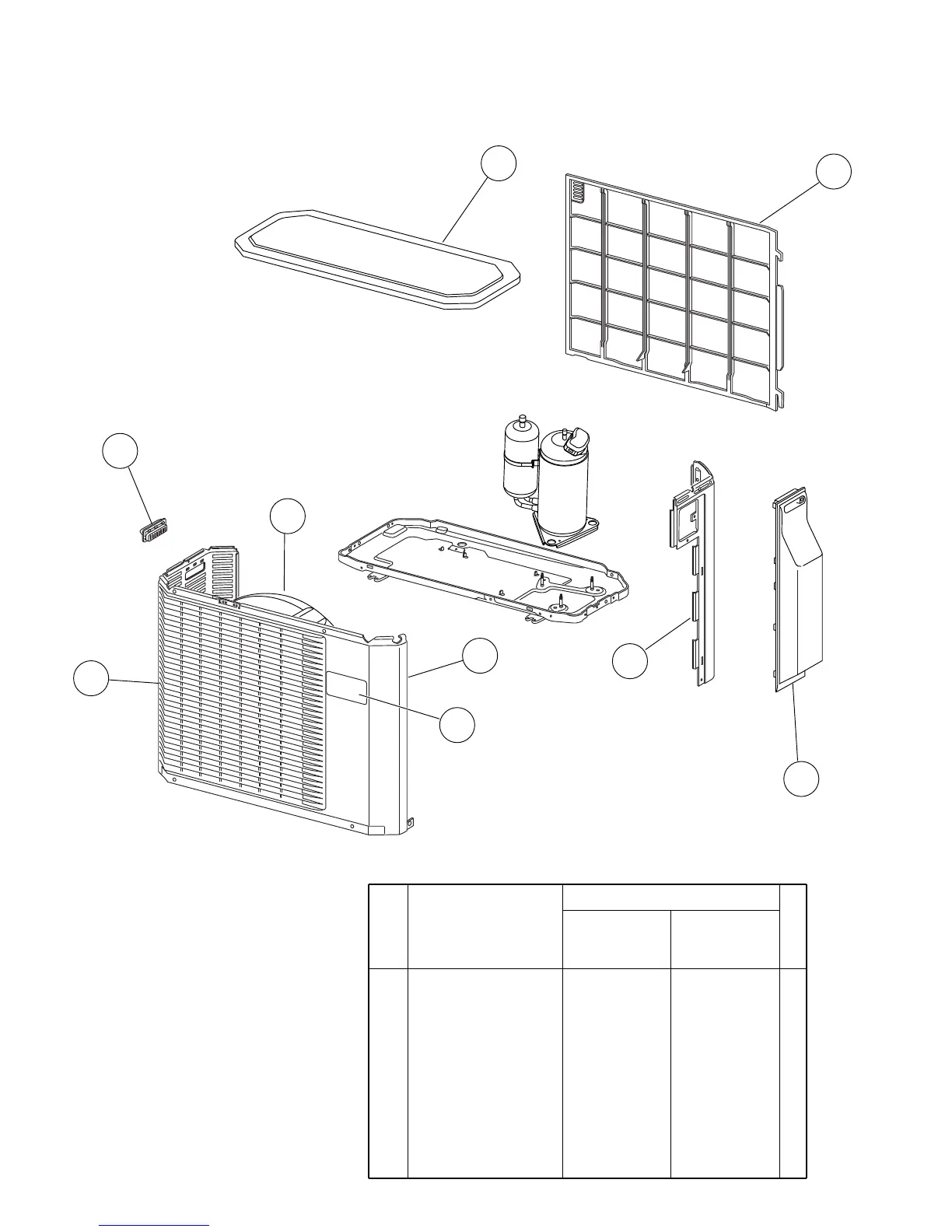

OUTDOOR UNIT
PARTS
8
1 Top Panel Assy
3 Cabinet Assy
4 Blow Down Grille
5 Cabinet Right Assy
6 Fan Ring
7 Grip
9 Protective Net
8 Emblem
9309230057
9314809040
2 Cover (Switch) Assy 9309237032
9308884015
9309236011
9308885012
9308880017
9315319012
9315210012
9309230057
9314809019
9309237032
9308884015
9309236028
9308885012
9308880017
9315033017
9315210012
Ref. Description
Part number
AOY_12LA_L
AOY_14LA_L
AOY_18LA_L
AOY_24LA_L
