Brief description of the mainboard
Procedure
The processor socket ist covered with a protective cap to protect the spring
contacts In the event of a warranty claim, the mainboard can only be taken back
by Fujitsu Technology Solutions with the protective cap attached!
a
b
b
► Remove the heat sink.
► Press down the lever and unhook it.
► Lift up the frame.

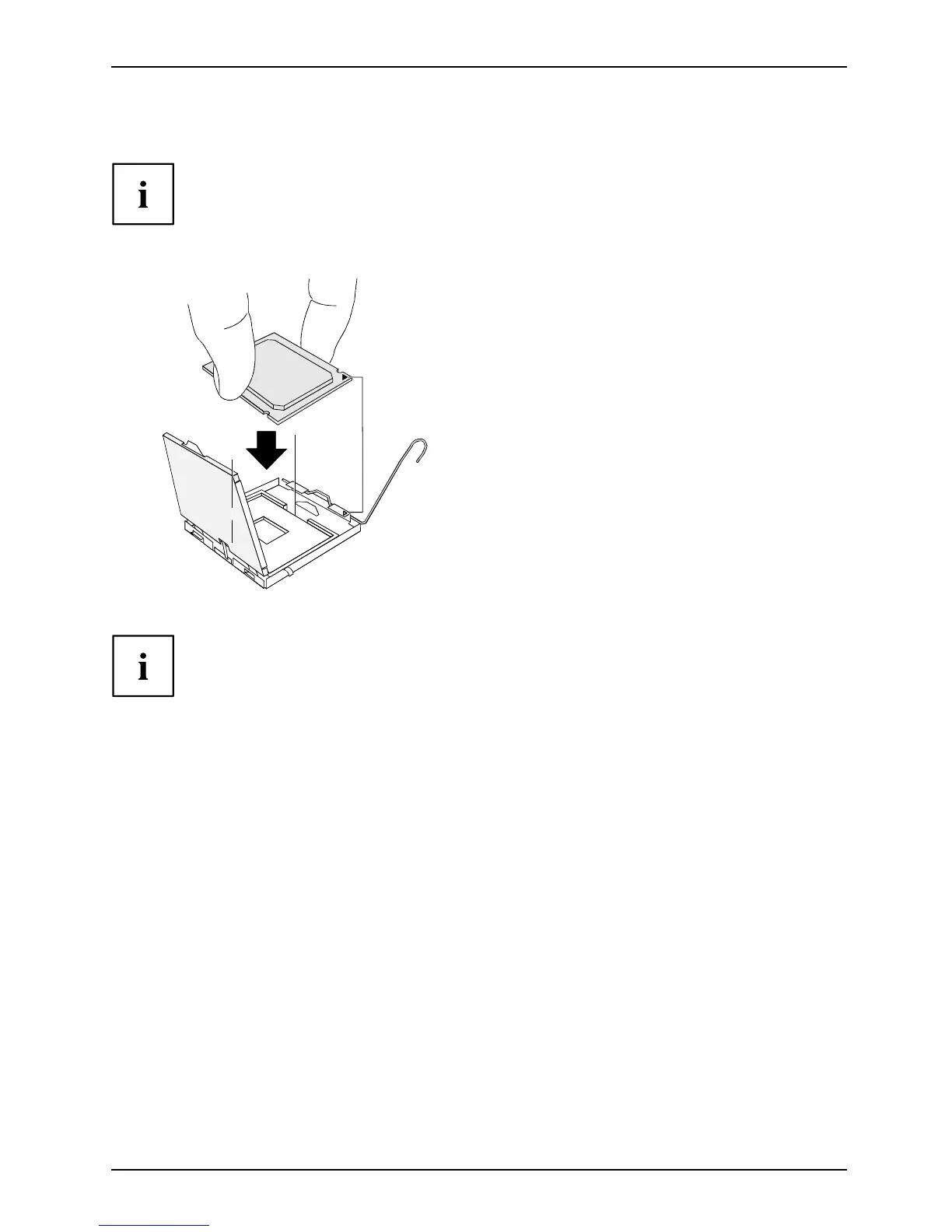

► Hold the processor between your thumb
and index finger and insert it into the socket
(b) so th at the marking of the processor is
aligned with the marking on the socket (a).
► Press the lever downward until it
engages again.
► Removetheprotectivecapandkeepit.
Please note that, depending on t he heat sink used, different heat sink
mounts are required on the mainboard.
► Depending on the configuration variant, you must pull a protective f oil off the heat sink
or coat the heat sink with heat conducting paste before fitting it.
► Secure the h eat sink - depending on the model - with four screws or push it into the m ounts.
A26361-D2151-Z212 -1-8 N19, edition 1 English - 3
