Installing/removing processor(with heat sink)
Procedure
The processor socket ist covered with a protective cap to protect the spring
contacts In a warranty case the mainboard can only be taken back by F ujitsu
Siemens Computers with the protective cap secured!
a
b
b
► Remove the heat sink.
► Press down on the lever and unhook it.
► Fold up the frame.

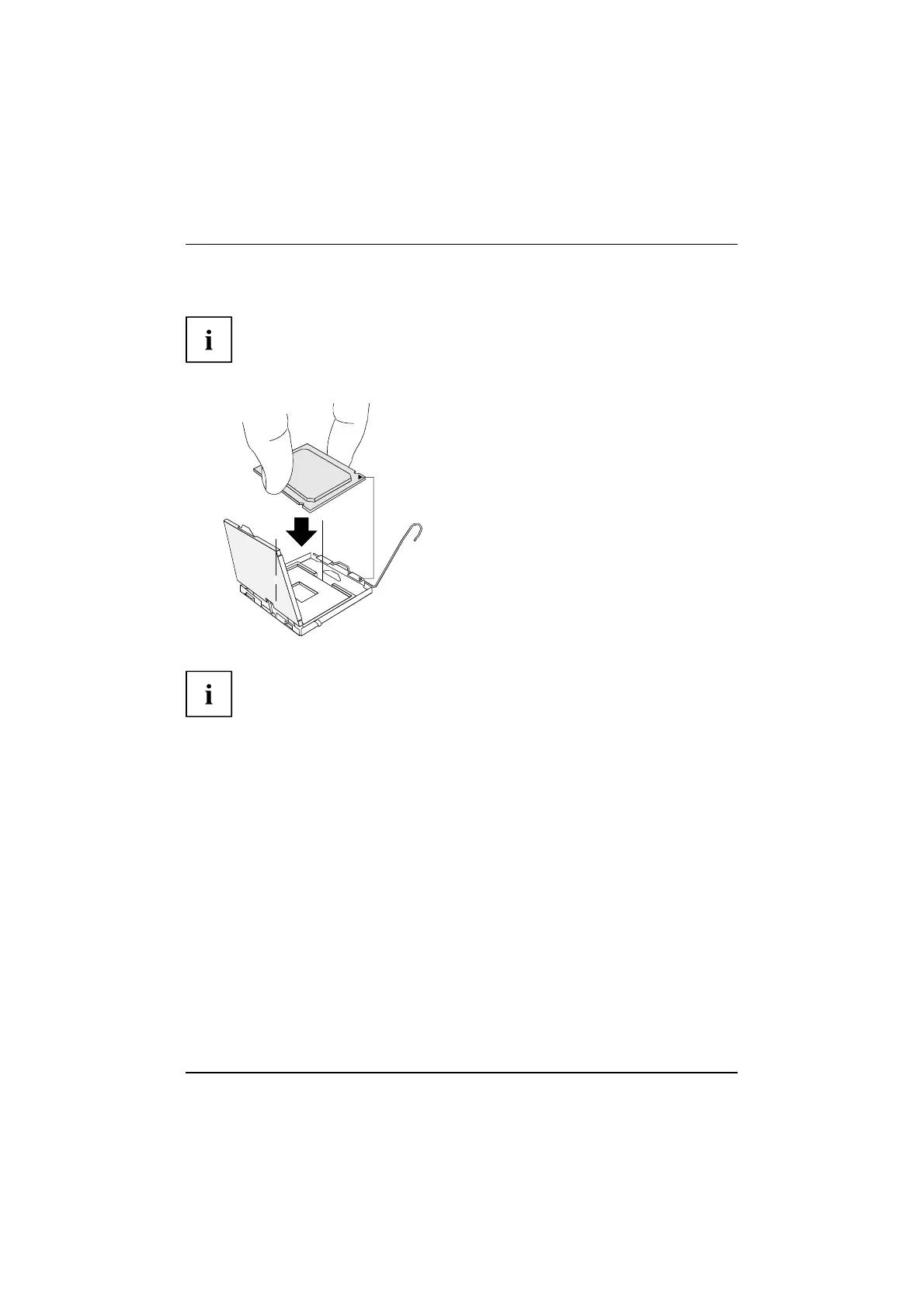

► Hold the processor between your thumb
and index finger and insert it into the socket
(b) so that the marking of the processor is
aligned with the marking on the socket (a).
► Press the lever downward until it is
hooked in again.
► Remove the protective cap and keep it.
Please note that, depending on the heat sink used, different heat sink
mounts are required on the mainboard.
► Depending on the configuration variant, you must pull a p rotective foil off the he at sink
or coat the heat sink with heat conducting paste before fitting it.
► Secure the heat sink - depending on the model - with four screws or p ush it into the mounts.
4 - English A26361-D2317-Z110-1-8N19, edition 2
