Brief description of the mainboard
Procedure
The processor socke t ist c overed with a prot ective cap to protect the spring
contacts In a warranty case the mainboa rd can only be taken back by Fujitsu
Siemens Computers with the protective cap secured!
a
b
b

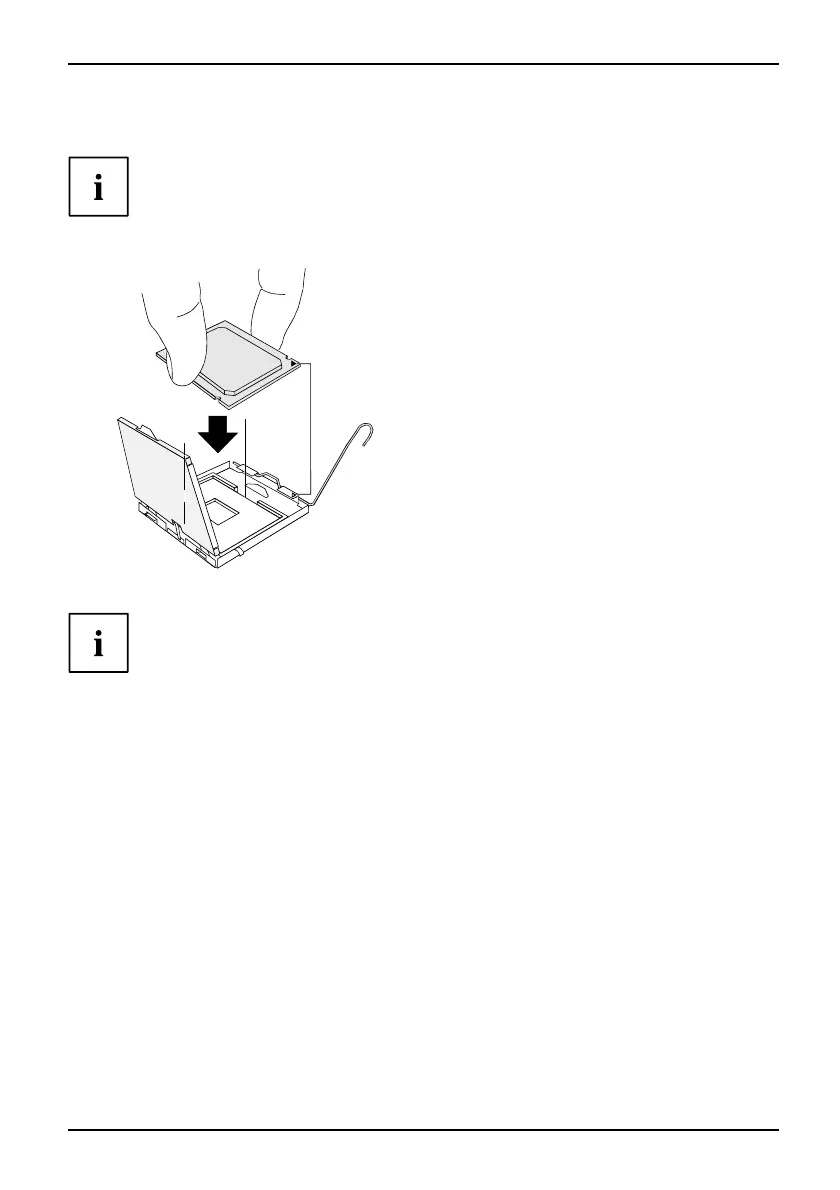

► Remove the heat sink.
► Press down the lever and unhook it.
► Fold up the frame.
► Hold the processor between your thumb
and index finger an d insert it into the socket
(b) so that the marking of the processor is
alignedwiththemarkingonthesocket(a).
► Press the lever downward until it is
hooked in again.
► Remove the protective cap and keep it.
Please note that, depending on the heat sink used, different heat sink
mounts are required on the mainboard.
► Depending on the configuration variant, you must pull a protective foil off the heat sink
or coat the heat sink with heat conducting paste before fitting it.
► Secure the heat sink - depending o n the model - with four screws or push it into the mounts.
