D2759 (TX150 S7) Technical Manual 35
Features Connectors and indicators
3.6.3 Jumper

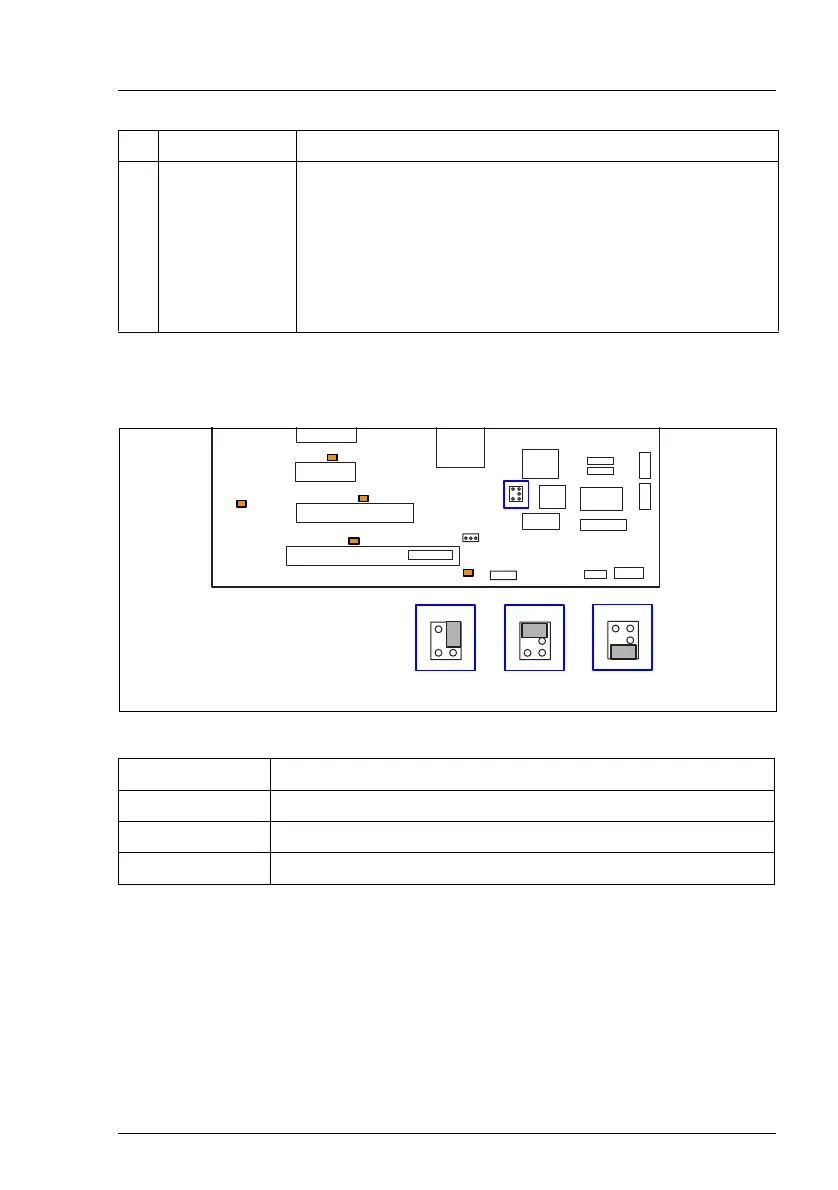

Figure 9: Jumper
4 LAN speed
(system LAN)
Steady yellow signal in the event of a LAN transfer rate
of 1 Gbit/s
Steady green signal in the event of a LAN transfer rate
of 100 Mbit/s.
Remains dark in the event of a LAN transfer rate of
10 Mbit/s.
Setting Description
Default Password skip disabled and recovery BIOS disabled.
RCVR Recovery BIOS enabled.
PWD SKIP Password skip enabled.
No Indicator Description
default
RCVR
PWD SKIP
Slot 3
Slot 2
Slot 1
Slot 4
Intrusion
SATA5 SATA6
SATA
MLC
PCIe x4
PCIe x1
PCI 32 Bit / 33 MHz
SMB1
USB
Front
USB SSD
TPM
USB
stick
PCIe x1
USB2 AUX
USB1 AUX
HDD Activity
Reset
Configuration
jumper
