4 - English Interfaces and connector
s
Interfaces and connectors
The location of the interfaces and connectors of your mainboard is specifi ed
at the beginning of the manual.
The components and con nectors marked are not necessarily present on the mainboard.

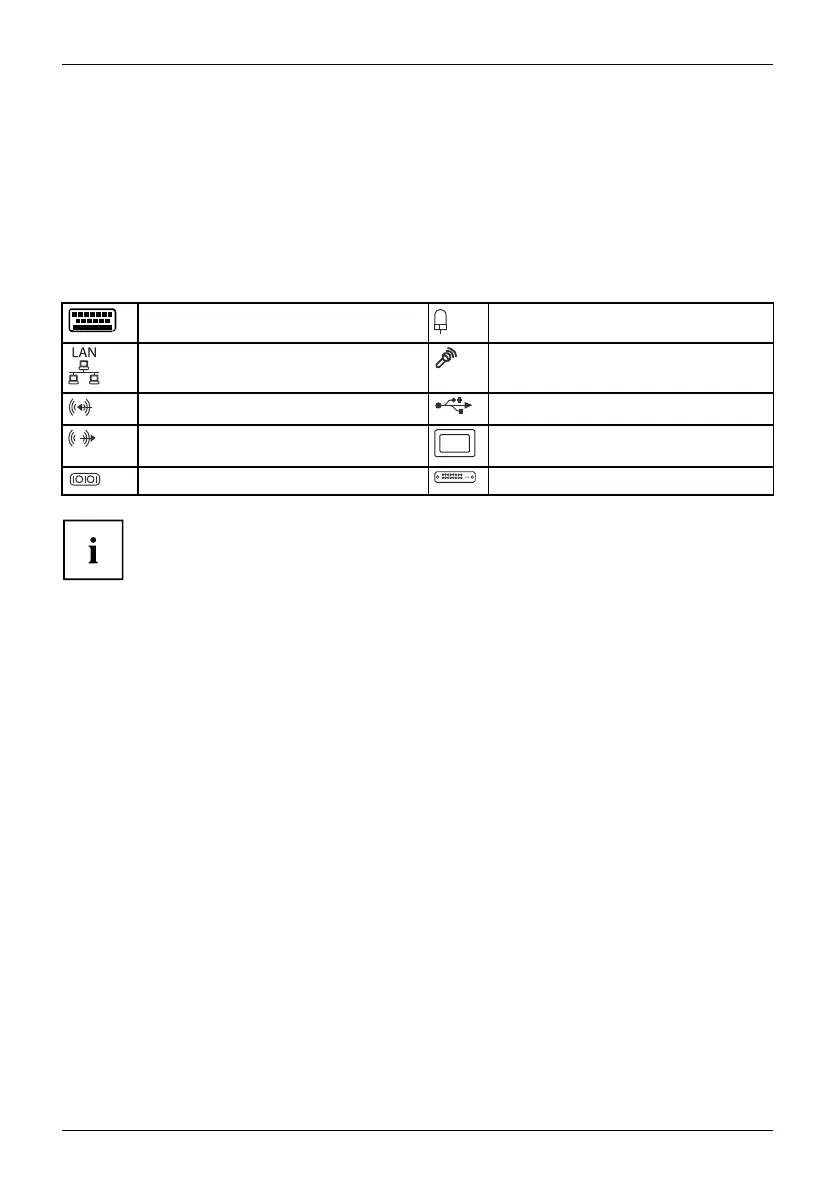

External ports
The location of the external connections of your mainboard is speci fied at the beginning of the manual.
PS/2 keyboard port, purple PS/2 m ouse port, green
LAN port (RJ-45) Microphone jack (mono), pink
Audio input (Line in), light blue USB – Universal Serial B us, black
Audio output (Line out), light green VGA, blue
Serial interface, turquoise
DVI – D
According to the USB 2.0 specifications, no more than 500 mA must
be connected to t he external USB ports.
The use of a new chip set technology can mean that the procedure is different when
connecting older USB devices (Fullspeed, USB 1.1). This relates, for example, to older
digital cameras of which only one (not two or more at the same time) can be operated at
any one time. Newer devices with specification USB 2.0 are not affected by this.
18 Fujitsu Technology Solutions
