6 - English Installing/removing the
processor
Procedure
The processor socket is covered with a protective cap to protect the spring
contacts. In the event of a warranty case , the mainboard can only be taken back
by Fujitsu Techn ology Solutions with the protective cap secured!
a
b
b
► Remove the heat sink.
► Press down the lever and unhook it.
► Fold up the frame.

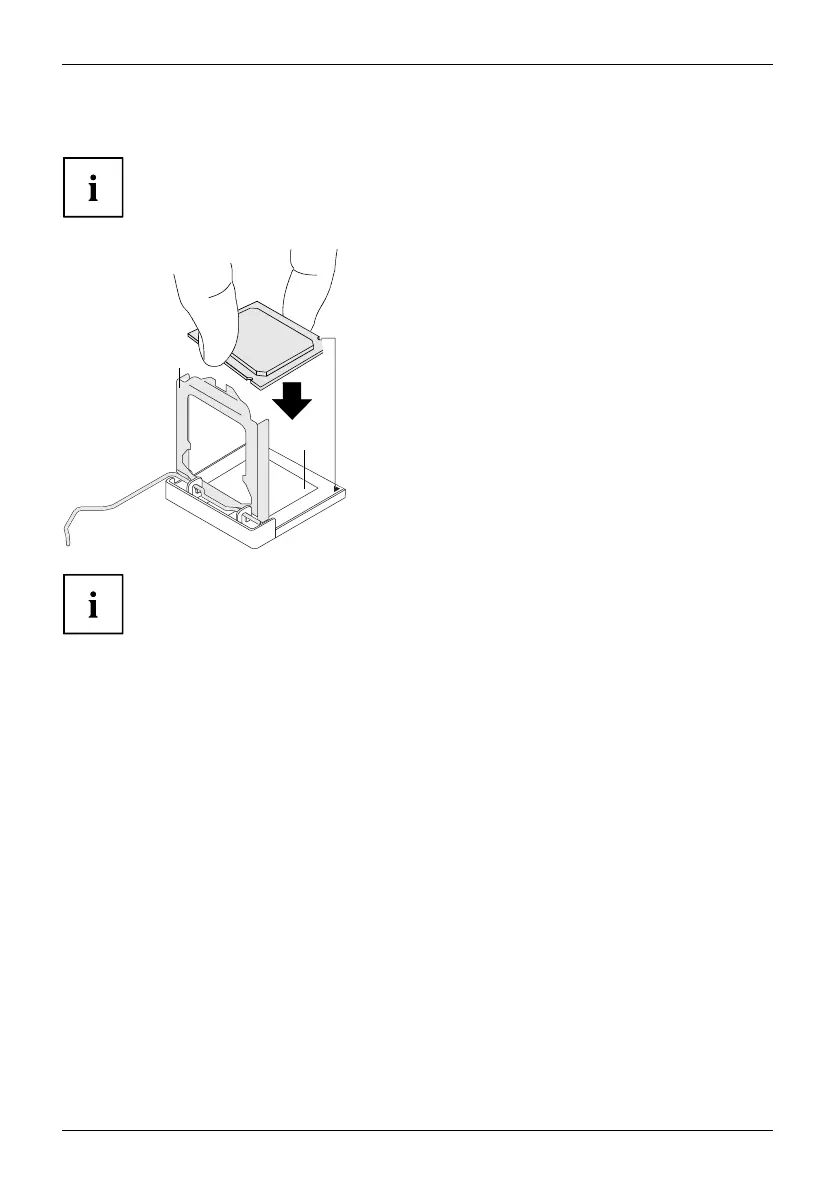

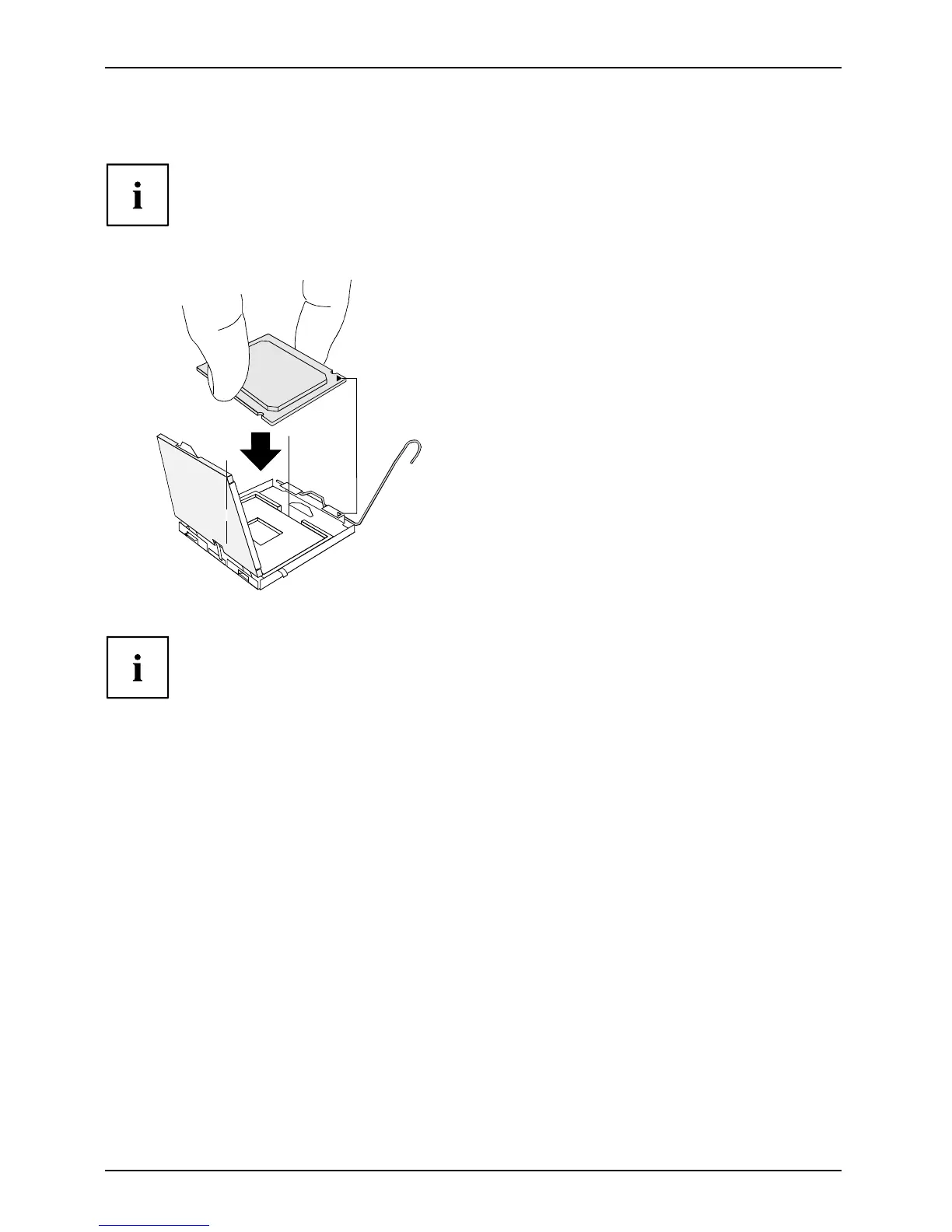

► Hold the processor between your thumb
and index finger and insert it into the so cket
(b) so that the marking of the processor is
aligned with the marking on the socket (a).
► Press the lever downward until it is
hooked in again.
► Remove the protective cap and keep it.
Please note that
, depending on the heat sink used, different heat sink
mounts a re requi
red on the mainboard.
► Depending on the configuration v ariant, you must pull a protective foil off the heat sink
or coat the heat sink with heat conducting paste before fitting it.
► Secure the heat sink - depending on the mod el - with four screws or push it into the mounts.
20 Fujitsu Technology Solutions
