Fujitsu D2991 User Manual

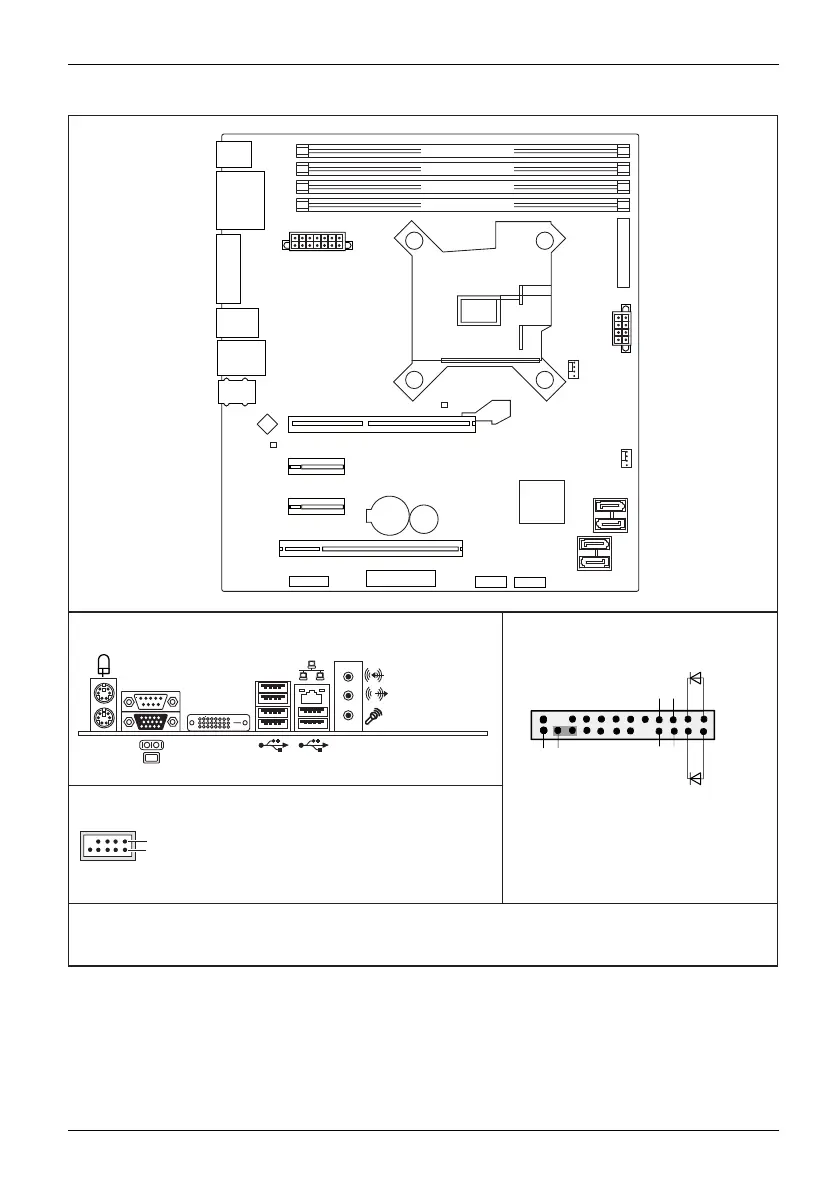

Internal co nn ectors an d slots
External connectors rear
USB dual channel
1
2
1 = 5V USB
2 = 5V USB
3 = Data negative Port X
4 = Data negative Port Y
6 = Data positive Port Y
Data positive Port X
7 =
5 =
GND
8 = GND
9 = Key
10 = Not connected
A26361-D2991-Z240-1-7419
Module 2 Channel B
Module 4 Channel B
Module 1 Channel A
Module 3 Channel A
Battery
Audio
Mouse
KeyB
DVI-D
COM
VGA
USB
PCIe1
PCIe1
PCI
PCIe16
FAN1
FAN2
Frontpanel
LAN
SATA 0+1
HDD/ODD Power
USB
USB
PCH
CPU
LGA1156
Parallel Port
SATA 2+3
Audio Frontpanel
LAN
USB
Power Supply
Tempsensor
Tempsensor
Buzzer
DVI-D
Front panel
1
2
HD-LED
Recovery
Reset
Power
On/Off
Power LED
Recovery inserted = The system starts
from USB stick and allows a BIOS
recovery. Details can be found in the
BIOS manual.
