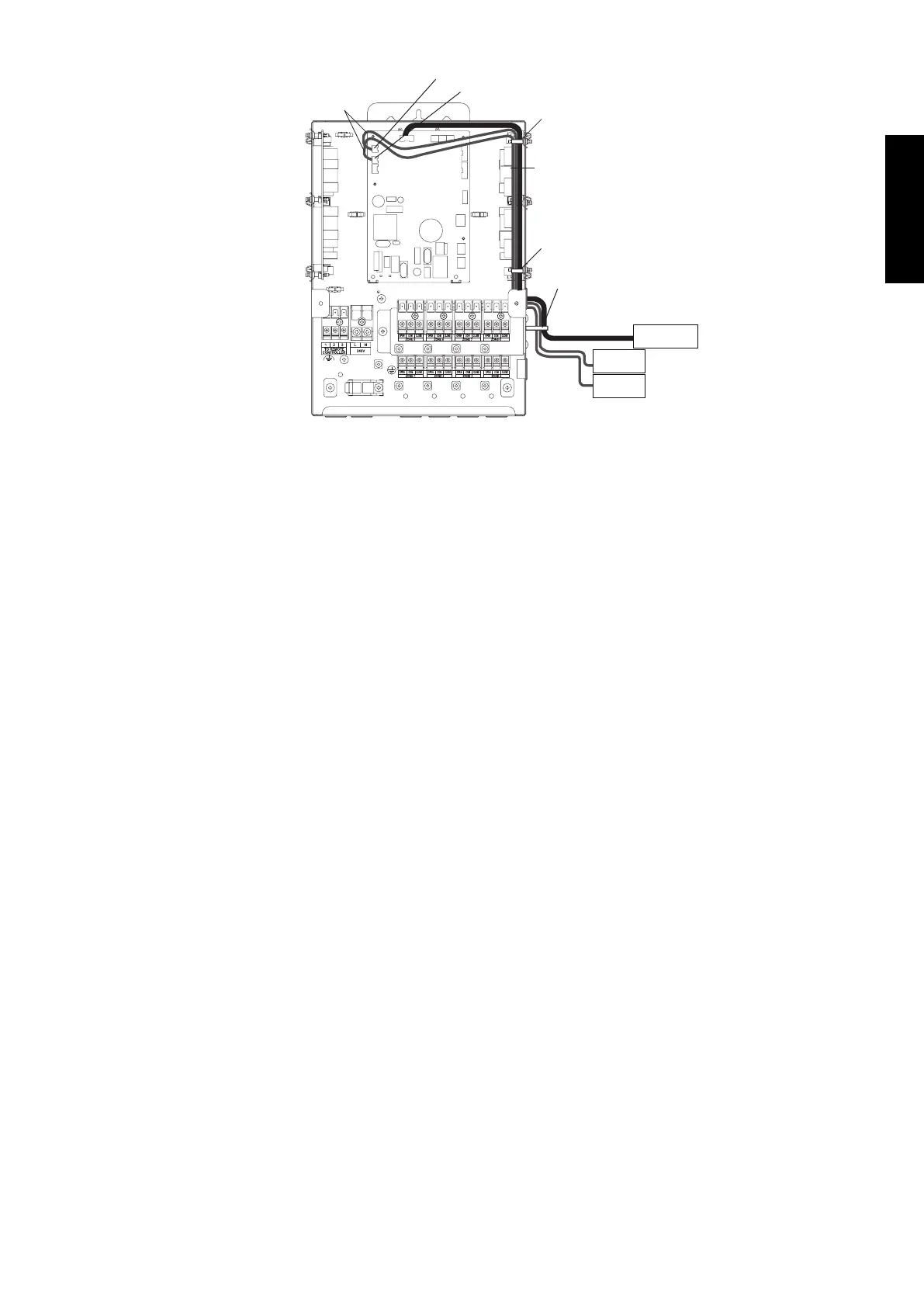

5. Connecting with optional remote sensor
(accessory)
Cable tie (small)
(accessory)
Cable tie (small)
(accessory)
Cable tie (small)
Indoor unit
Zone control interface
connecting cable
CN7 (white)
CN8 (black)
Remote
sensor
Remote
sensor
Remote sensor
cable
- 51 -
ZONE CTRL SYSTEM
with WLAN ADAPTER
