Fujitsu SCSI Scanner Installation Procedures
Windows NT 4.0
Rev051906A Page 7 of 9
Step E: Unlocking the shipping lock.
If your model scanner does not have a flatbed then proceed to Step F.
The flatbed model scanners typically include a lock on the flatbed designed to protect
the scanner during shipment. Before the scanner can be used the shipping lock must be
unlocked. To unlock it do the following:
1. Located the shipping lock slider tab or knob underneath the end of the scanner.
2. Slide or rotate the lock to the unlock position.
If your model has the old style “L” bracket shipping lock.

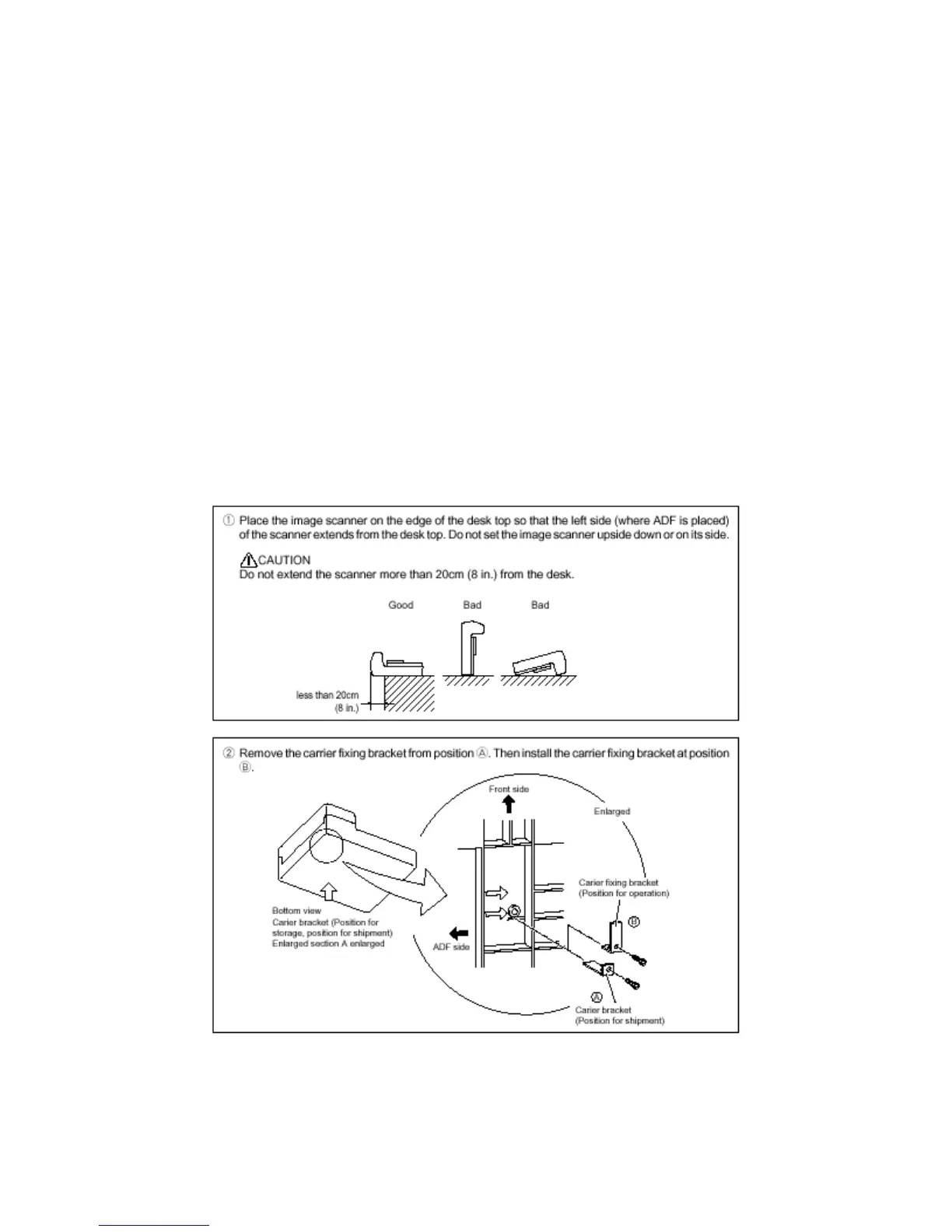

3. Slide the scanner to its side as shown in figure below.
4. Unscrew the retainer screw and remove the shipping bracket.
5. Place the shipping bracket in the “use position” slot and secure it with the retainer
screw (see figure below).
6. Place scanner back in its normal position.
