Checking the Product Label

This section explains about the product label on the scanner.

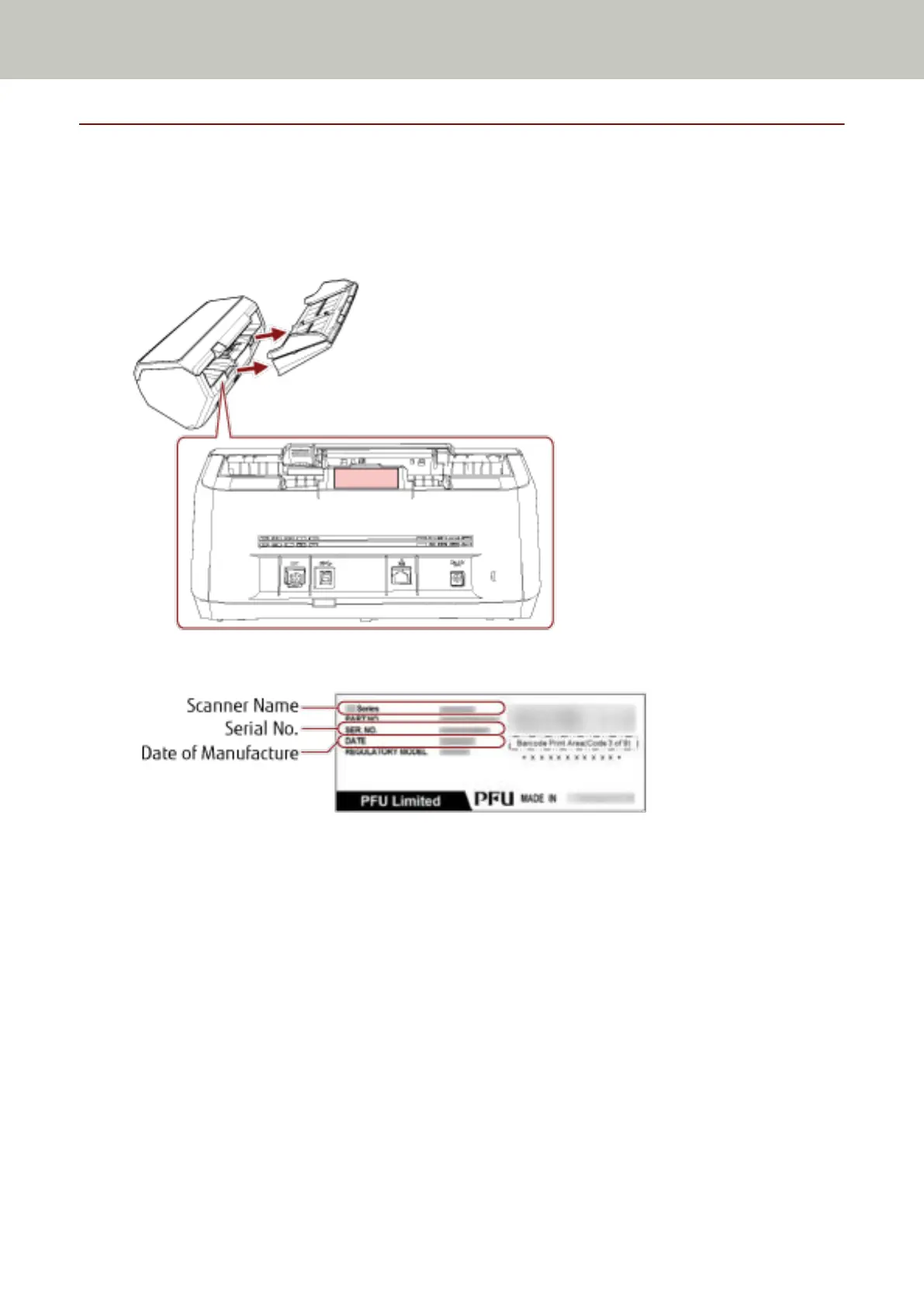

The label is located on the place indicated in the following figure:

Remove the ADF paper chute (feeder) to check it.

Label (example): Shows the scanner information.

Troubleshooting

332
