Fujitsu MPC3032AT - Test Flowchart

1 - 8 C141-F029-01EN
Analyze the system
related failure
No failure
Test acceptable?
Test using voltage or
temperature stress
Test acceptable?
Diagnostic test with
the host computer or test
equipment
Disk drive normal?
Disk drive
replacement or repair
System normal?
Yes
Yes
Yes
Yes
No
No
No
No
No
Yes
Yes
Check the host system
(Table 1.1)
Continue with the
operation
Test acceptable?
Operation test with the
host computer or test
equipment
Start
Disk drive failure
analysis (Table 1.1)

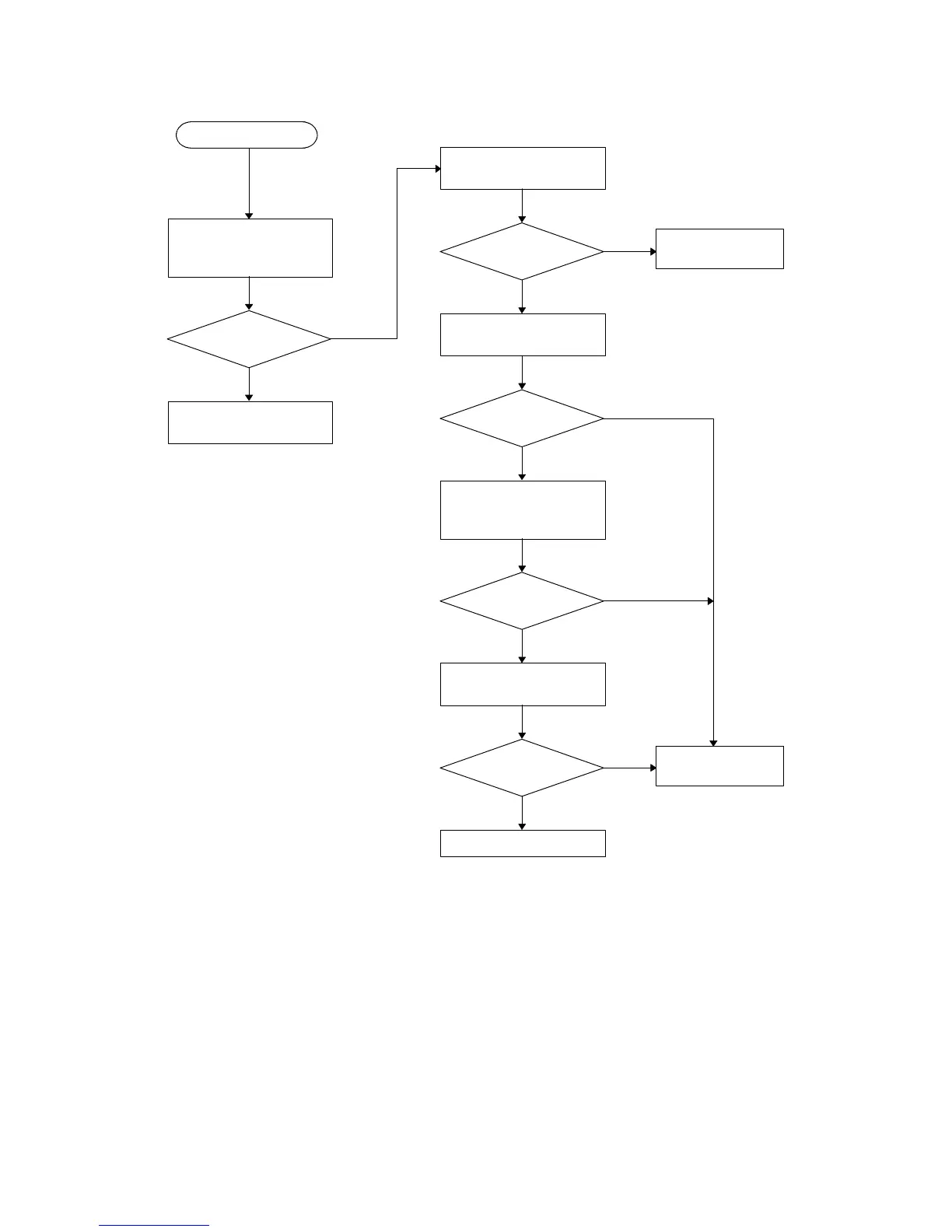

Figure 1.3 Test flowchart
