FI‐7600/FI‐7700

ONSUMABLE

EPLACEMENTAND

LEANING

NSTRUCTIONS



CG00002‐296501



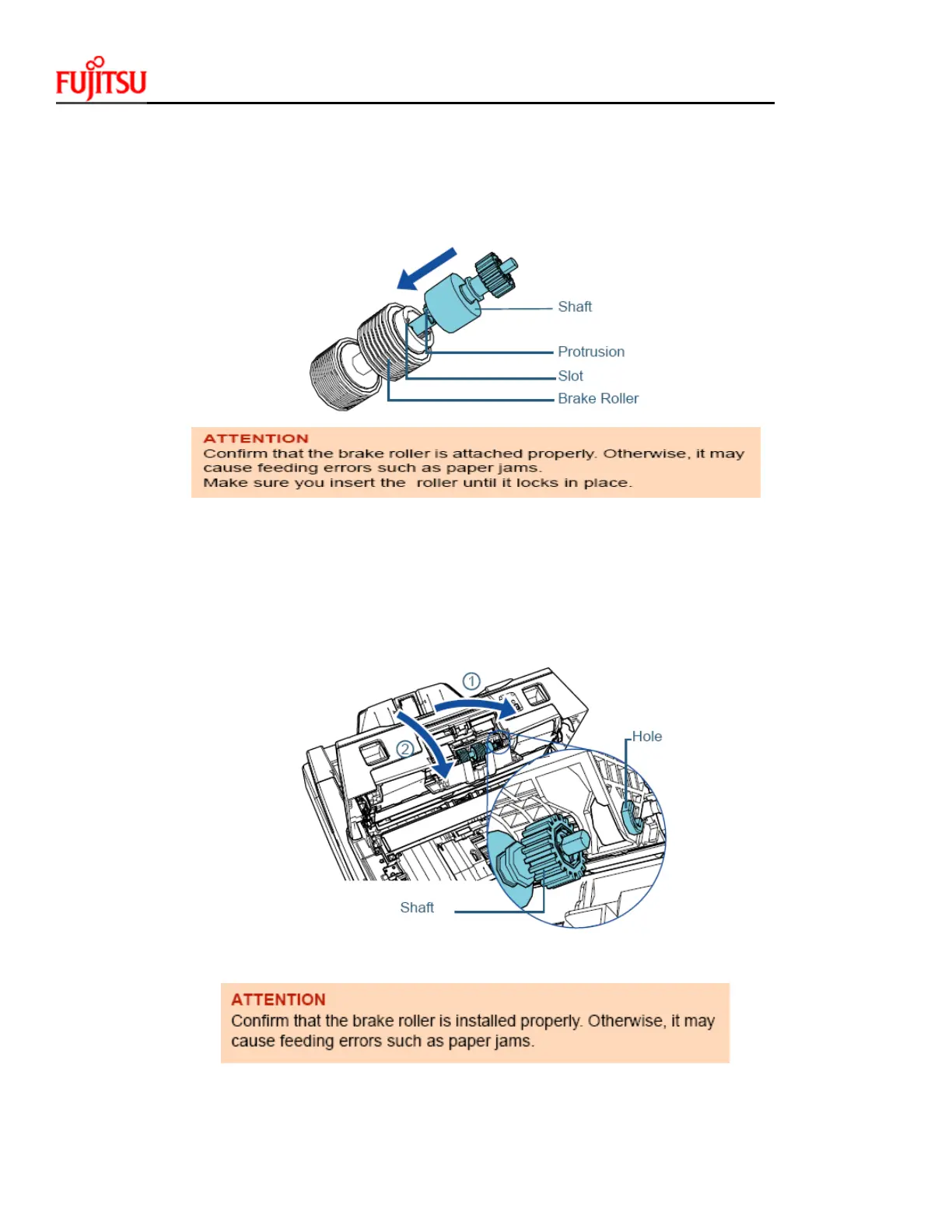

.Attachanewbrakerollerontheshaft.

Inserttheprotrusionontheshaftintotheslot.



.Attachtheshaft.

Insert the right end of the shaft into the hole in accordance with the hole shape in the

directionofthearrow1,andthenattachtheleftsideoftheshaftinthedirectionofthearrow

2.


