CX2550/60/70 M4 Upgrade and Maintenance Manual 309
System board and components
Ê Remove 10 screws (see red circles).
Use a hexagonal nut screw driver to secure the spacers while removing the
corresponding screws from the bottom of the tray.

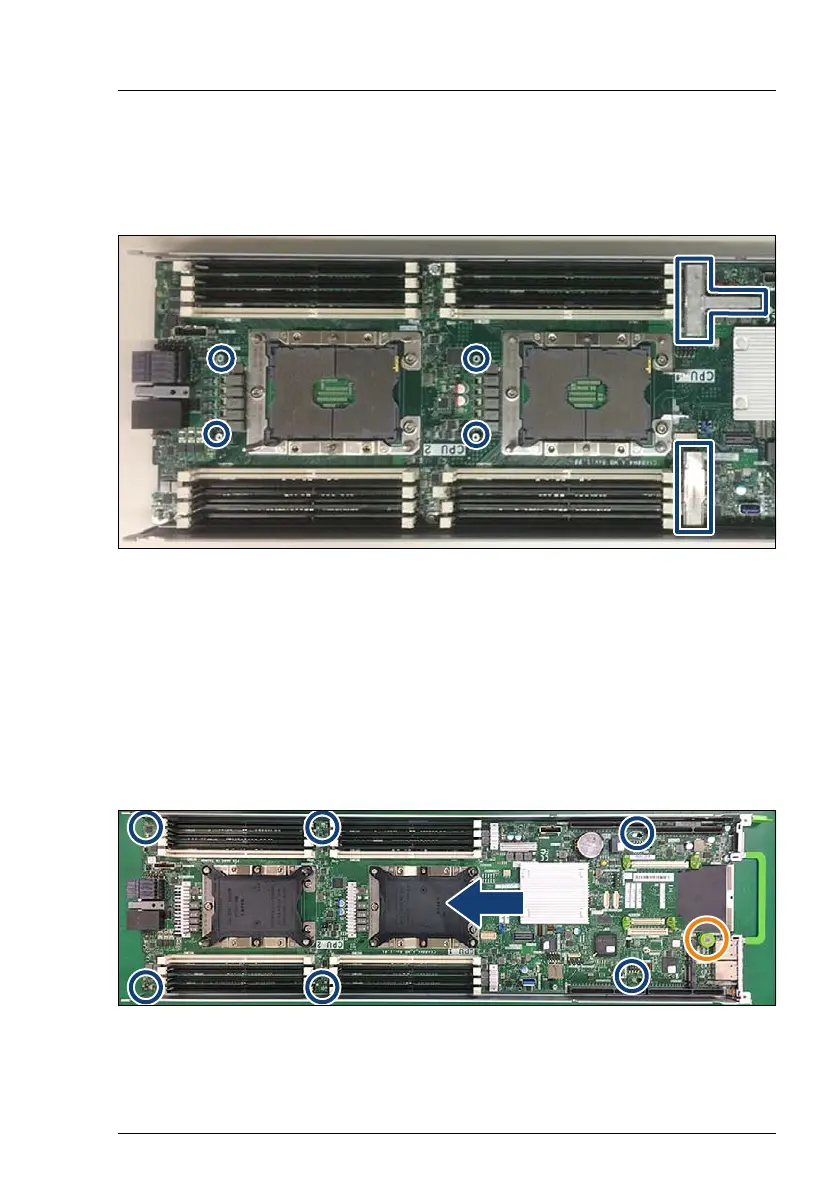

Figure 194: Removing VR cooling blocks and spacers
Ê Turn the tray with its component side facing up.
Ê Remove the four spacers (see circles) and the two VR cooling blocks (see
frames) from the system board.
I Keep the screws, spacers and VR cooling blocks, because they will
be used later on.
9.6.2.2 Removing the system board
Figure 195: Removing the system board
Ê Loosen the captive screw (see orange circle).

Fujitsu PRIMERGY CX2560 M4 Specifications

General

Product Type	Server
Processor	Intel Xeon Scalable processors
Number of Processors	Up to 2
Memory Slots	24 DIMM slots
Management	ServerView Suite
Operating System Support	Windows Server, Linux, VMware
Form Factor	2U
Memory	DDR4
Chassis	2U
Power Supply	Redundant power supplies
Remote Management	Integrated Remote Management Controller (iRMC)
