TX100 S1 Options Guide 33
Expansion cards and parallel interface Installing an expansion card

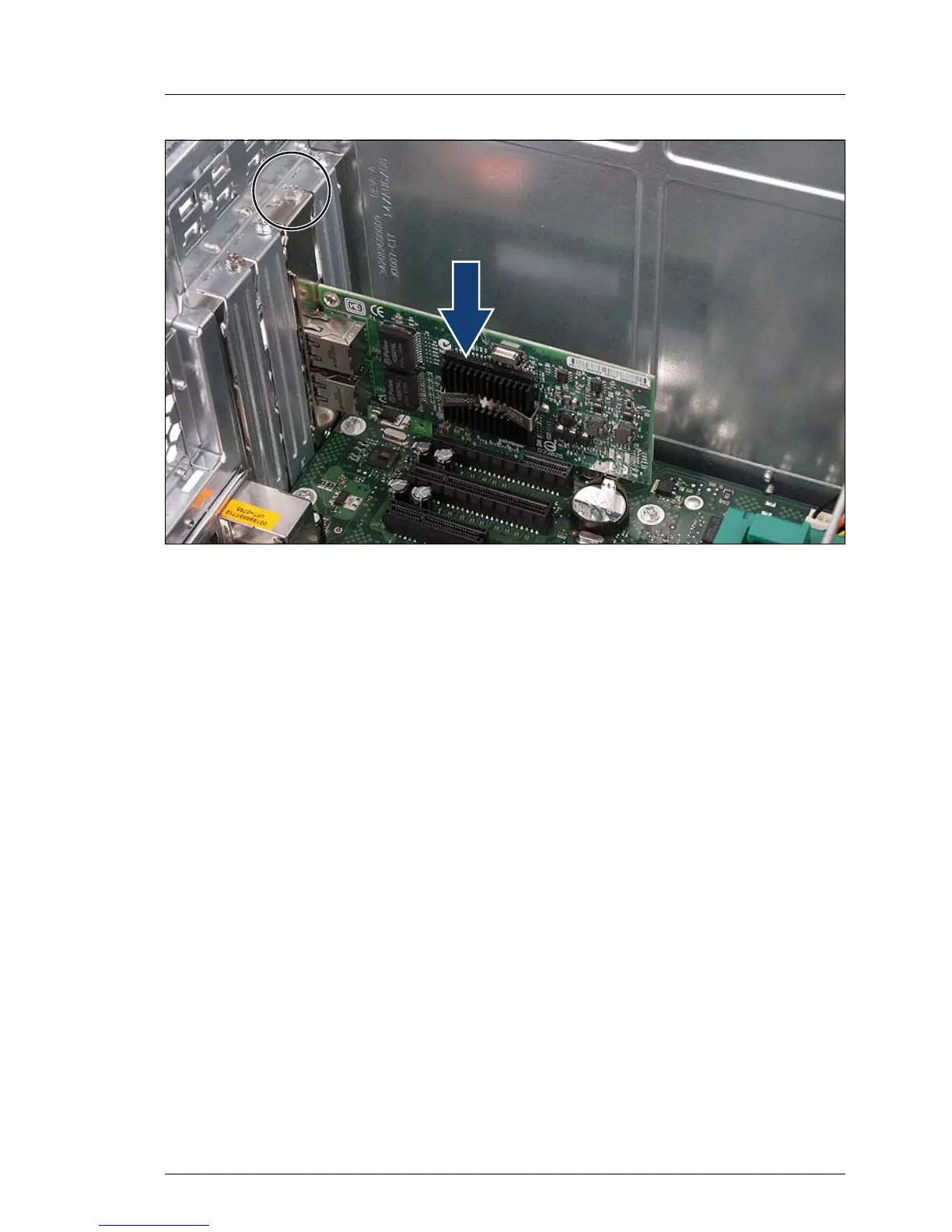

Figure 15: Installing an expansion card
Ê Carefully press the new expansion card into the relevant slot on the system
board until it clicks into place.
Ê Screw the slot cover for the expansion card into place (see circle).
Ê If necessary, connect the cable to the expansion card and the other
components.
Ê Close the server (see section "Closing the server" on page 38), connect it to
the power outlet, and switch it on.
