Fujitsu PRIMERGY TX100 S1 User Manual

TX100 S1 Options Guide 35
Expansion cards and parallel interface Installing a parallel interface

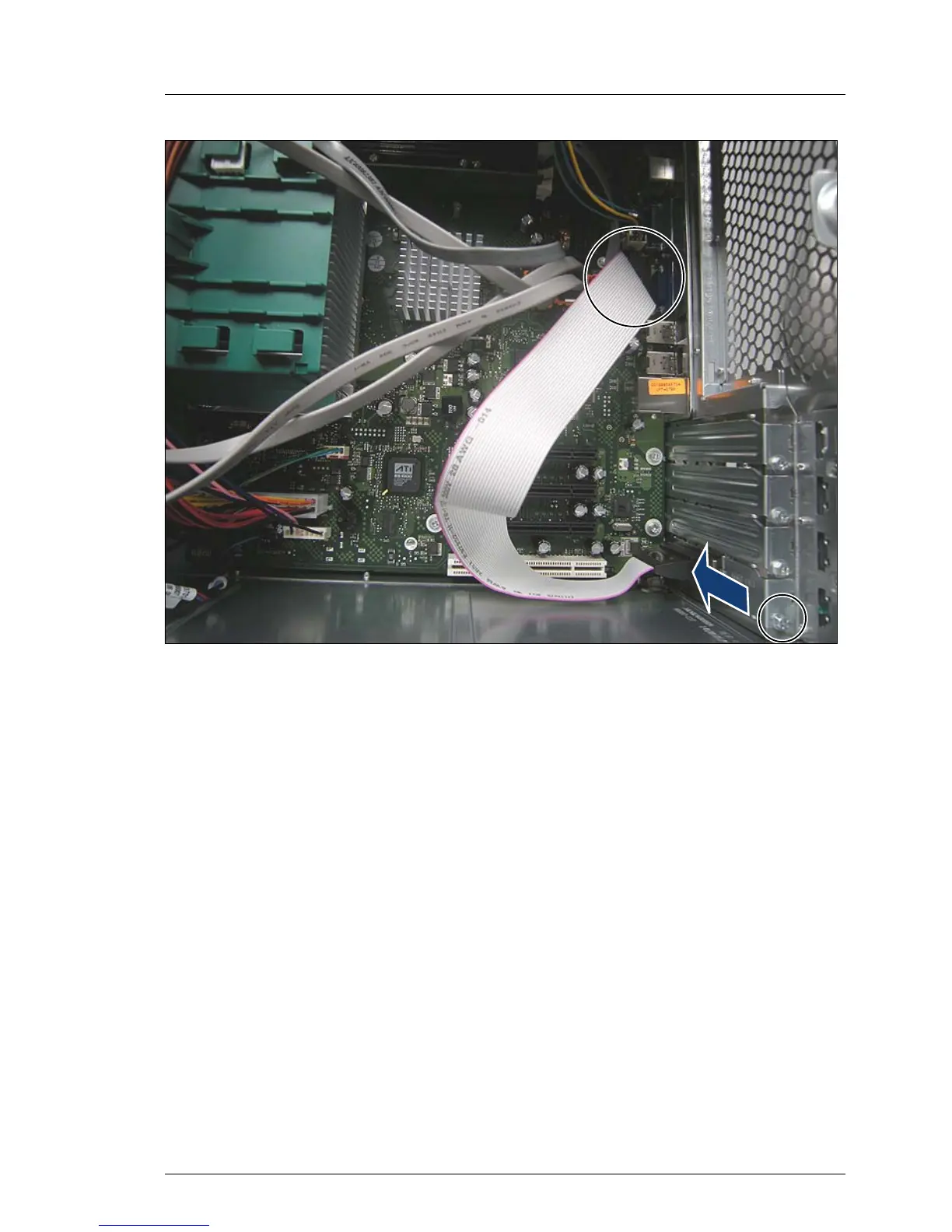

Figure 17: Installing a parallel interface
Ê Insert the slot cover of the parallel interface into slot 1.
Ê Screw the slot cover of the parallel interface into place.
Ê Connect the parallel interface port to the connector PARALLEL PORT on the
system board.
Ê Close the server (see section "Closing the server" on page 38), connect it to
the power outlet, and switch it on.
