64 Operating Manual
TX2540 M1
Starting up and operation
I Please note the following when operating with tape drives:
If the system is programmed to eject the media automatically, the
accessible drives must not be obstructed.
The drive cover is replaced and the server locked in the reverse order.

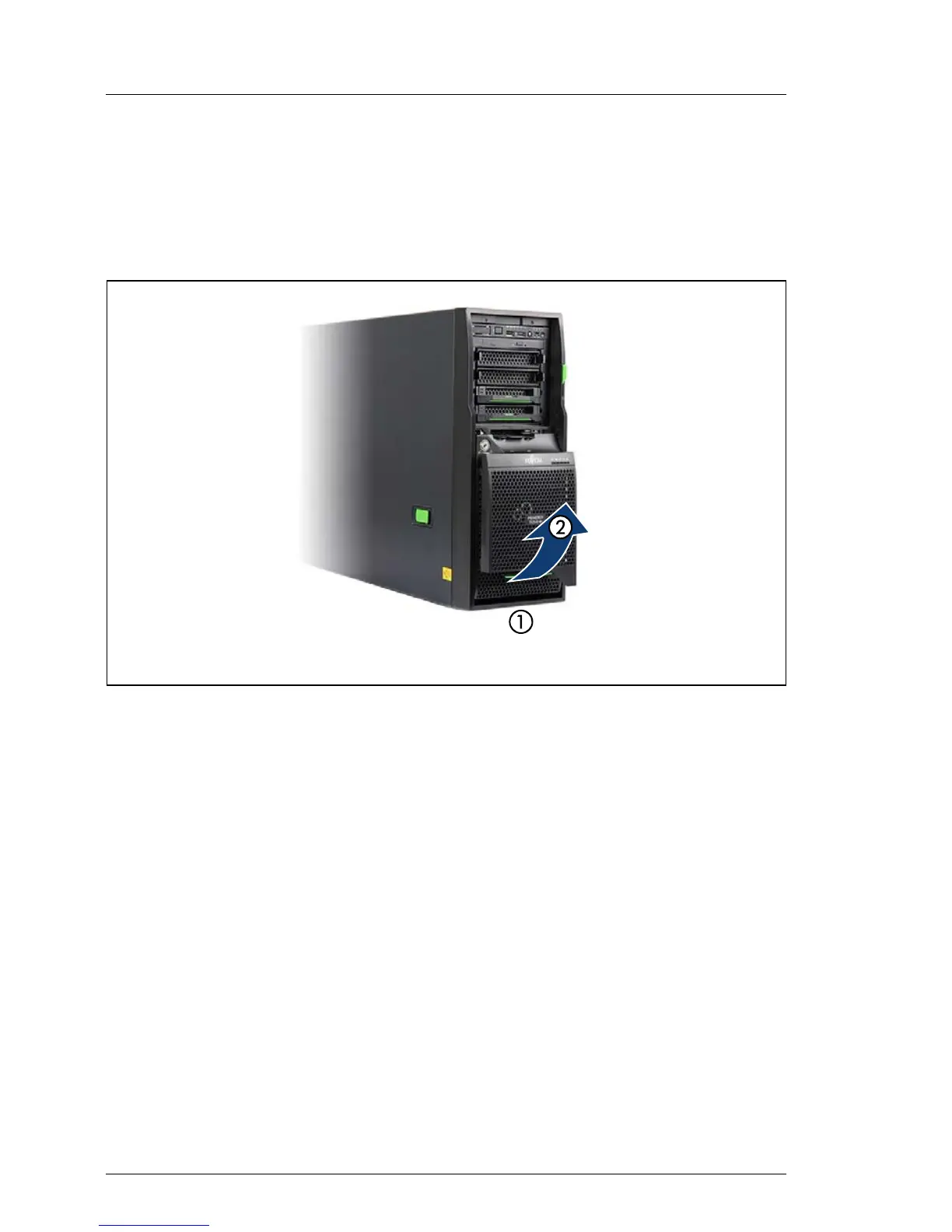

Figure 6: Removing the drive cover from the hard disk drive cover
Ê Carefully pull out on the green release lever (1) and lift off the drive cover (2).
