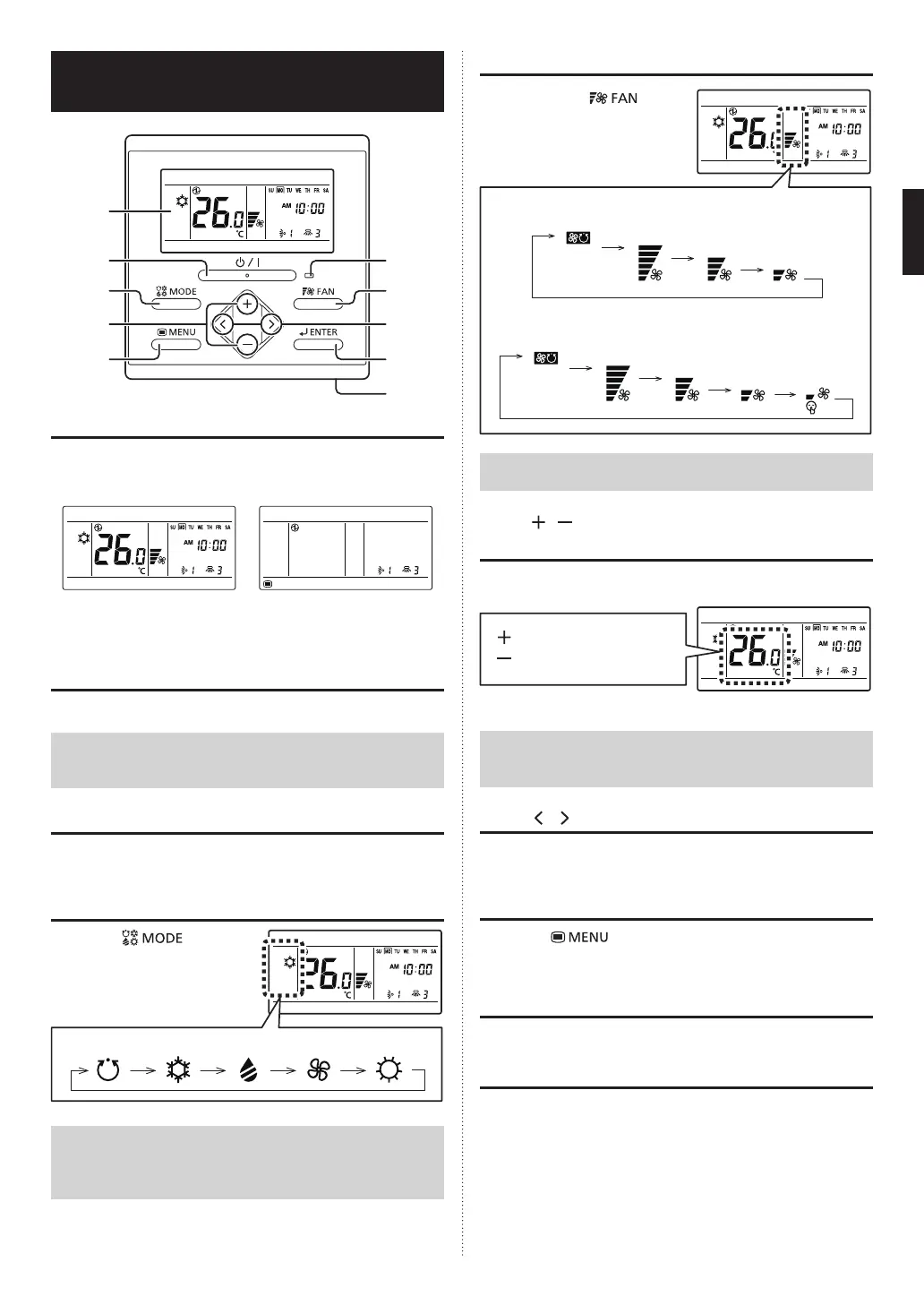

1. OVERVIEW AND BASIC
OPERATIONS
1-3.
1-5.
1-7.
1-9.
1-10.
1-1.
1-2.
1-4.
1-6.
1-8.
1-1. Display Panel
The following 2 types of screens are displayed.
Monitor Mode Screen
Setting Screen
(Ex. Airfl ow direction setting)
“Monitor Mode Screen” is home screen of this unit. Basic
operation is performed in the screen display.
See individual settings for Setting Screen.
1-2. On/Off Button
Starts or stops the operation.
Note
The On/Off button cannot be operated at screens other
than the “Monitor Mode Screen”.
1-3. LED Lamp (Operation indicator)
Lights while the indoor unit is operating. Blinks when an error
is occurred.
1-4. MODE Button
Press the [ ] button to
select the operation mode.
Auto Cool Dry Fan Heat
Note
Available modes differ according to system confi guration
and type / operating conditions of indoor unit. Unavailable
modes are not displayed and are skipped.
1-5. FAN Button
By pressing the [ ] button
will switch between fan speeds.
Auto
VRF system
Other system
Auto
High
High
Med
Med
Low
Low Quiet
Note
If Dry is selected, the fan speed can be set to Auto only.
1-6. , Buttons
(Set temperature buttons)
Temperature is set while the “Monitor Mode Screen” is dis-
played.
button: Raise
button: Lower
Used to select setting items during Setting Screen display.
Note
When operation mode is set to “FAN”, the temperature can-
not be adjusted.
1-7. , Buttons
Used to select setting items during the setting item selection
screen is displayed.
1-8. MENU Button
Press the [ ] button to display the setting item
selection screen.
Refer to
2. Menu settings
.
1-9. ENTER Button
Used to enter setting items and settings.
1-10. Room Temperature Sensor (inside)
Senses ambient temperature of unit.
En-2
