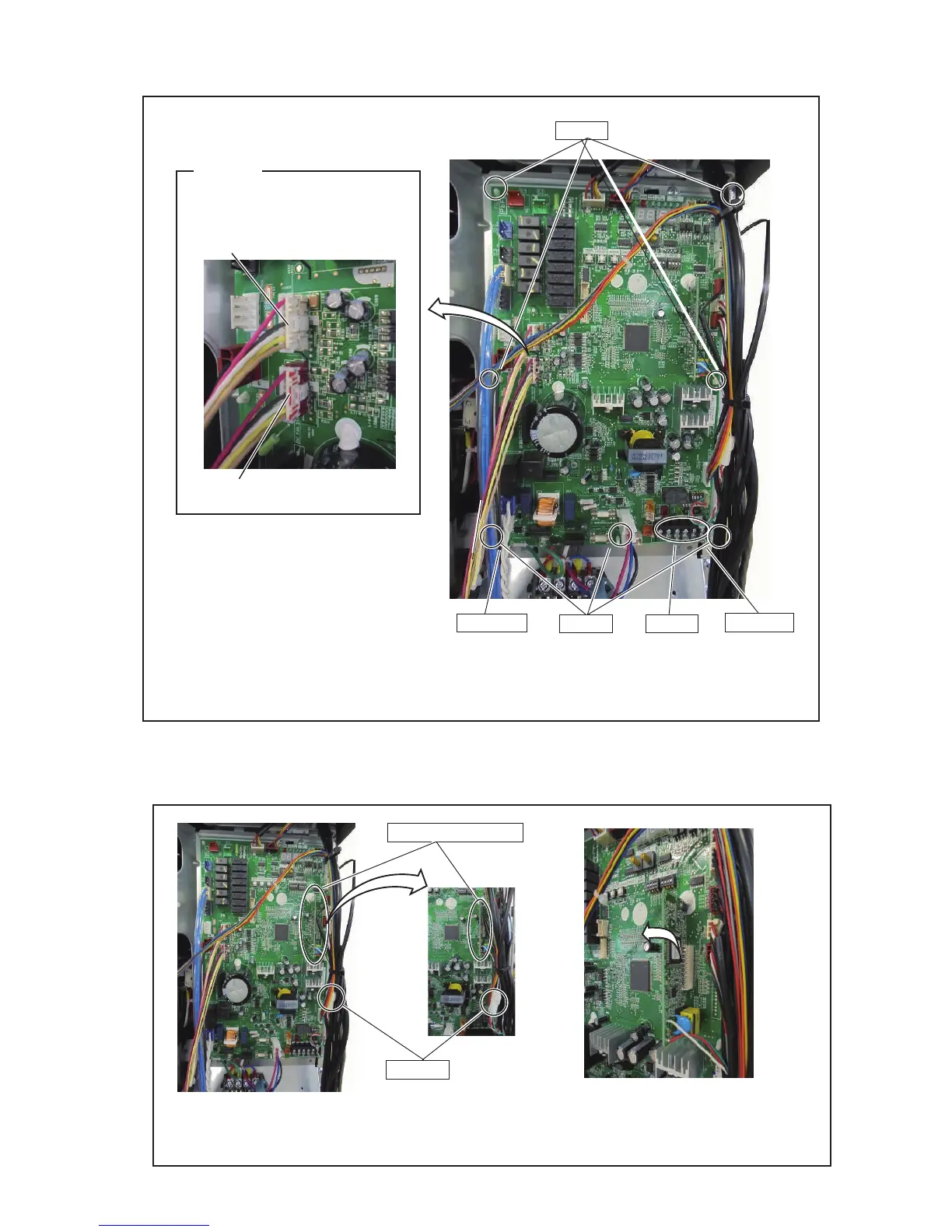

3. MAIN PCB removal
Remove the communication cable connected to the terminal.
Remove the earth screw x 2 places.
Disconnect the connectors and release the spacers.
Disconnect the connector.
Remove the COMMUNICATION PCB.
06-02
Terminal
Earth screw
Connector
4. COMMUNICATION PCB removal
Be careful about position of FAN motor connector
when you exchange Main PCB or FAN motor by
the repair.
Earth screw
For Upper Fan motor
CN104 DC FAN.1
Caution
Spacers
For Lower Fan motor
CN122 DC FAN. 2 *Painted CN.
BCP NOITACINUMMOC
Spacers
To Next Page
